Alias and Call Routing Configuration: Alias Configuration Examples
8-49
PVC to SVC Connection
, the incoming X.25 data on the incoming AI296 is on
baseport 16
,
link 2
with the alias of
16.X25.2.3
. The call then continues out the outgoing AI296 on
baseport
32
and called address
6145553897
:

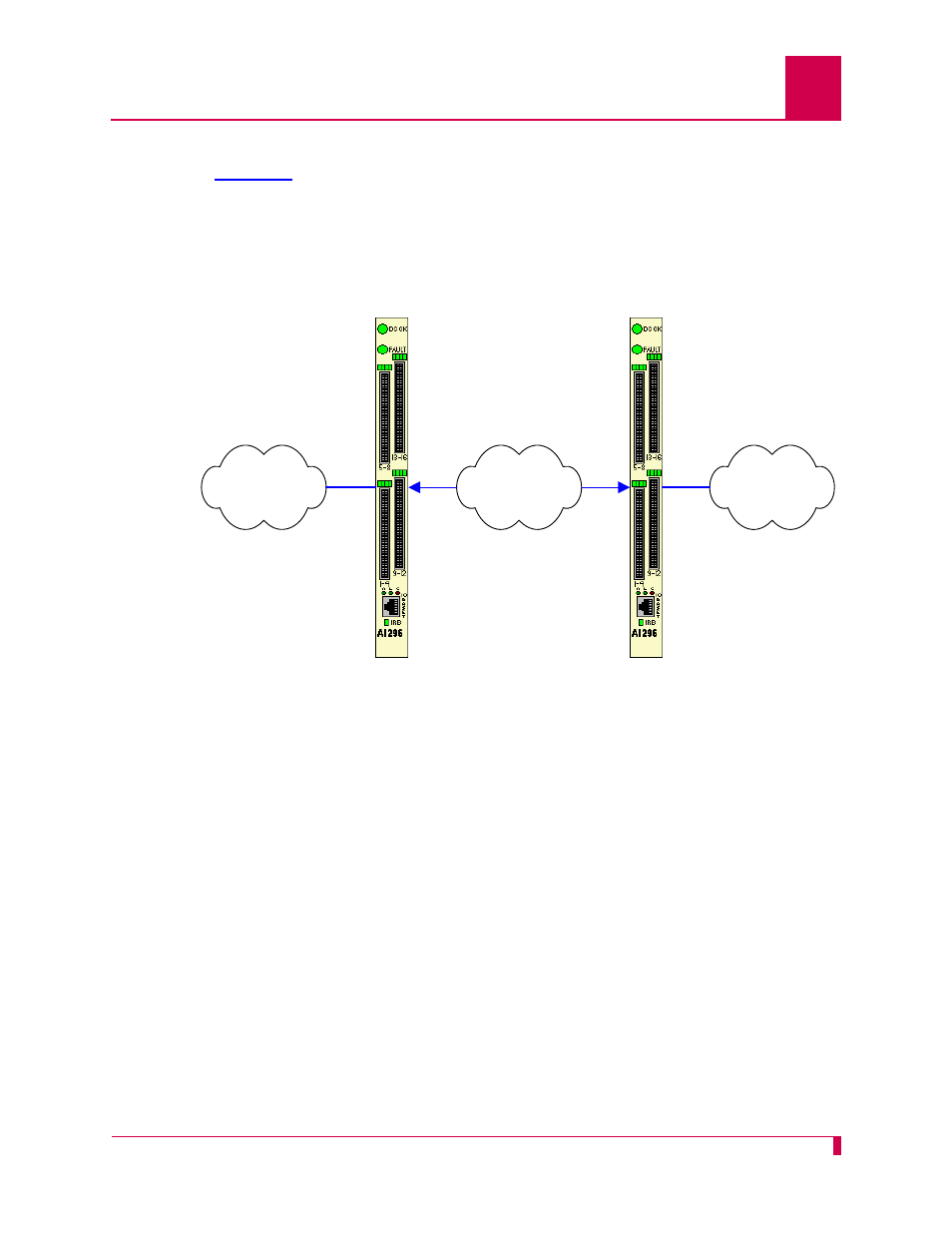

Figure 8-4 PVC to SVC Connection Diagram
TCP/IP Network
X.25 Network
X.25 Network
Baseport
16
Link
2
Baseport
32
Link
4
Called Address
6145553897
Alias
16.X25.2.3
IP Address
172.16.1.111
AI296 Incoming
AI296 Outgoing
Called Protocol
TL1
