AI296 Version 9.8x User’s Guide
Alias and Call Routing Configuration: Alias Configuration Examples
8-47
SVC to PVC Connection
In Figure 8-3 , the X.25 data on the incoming AI296 is on baseport 16 , link 2 with a
called address of 6145551234 . The call continues on the outgoing AI296 on baseport 32 ,
link 1 :

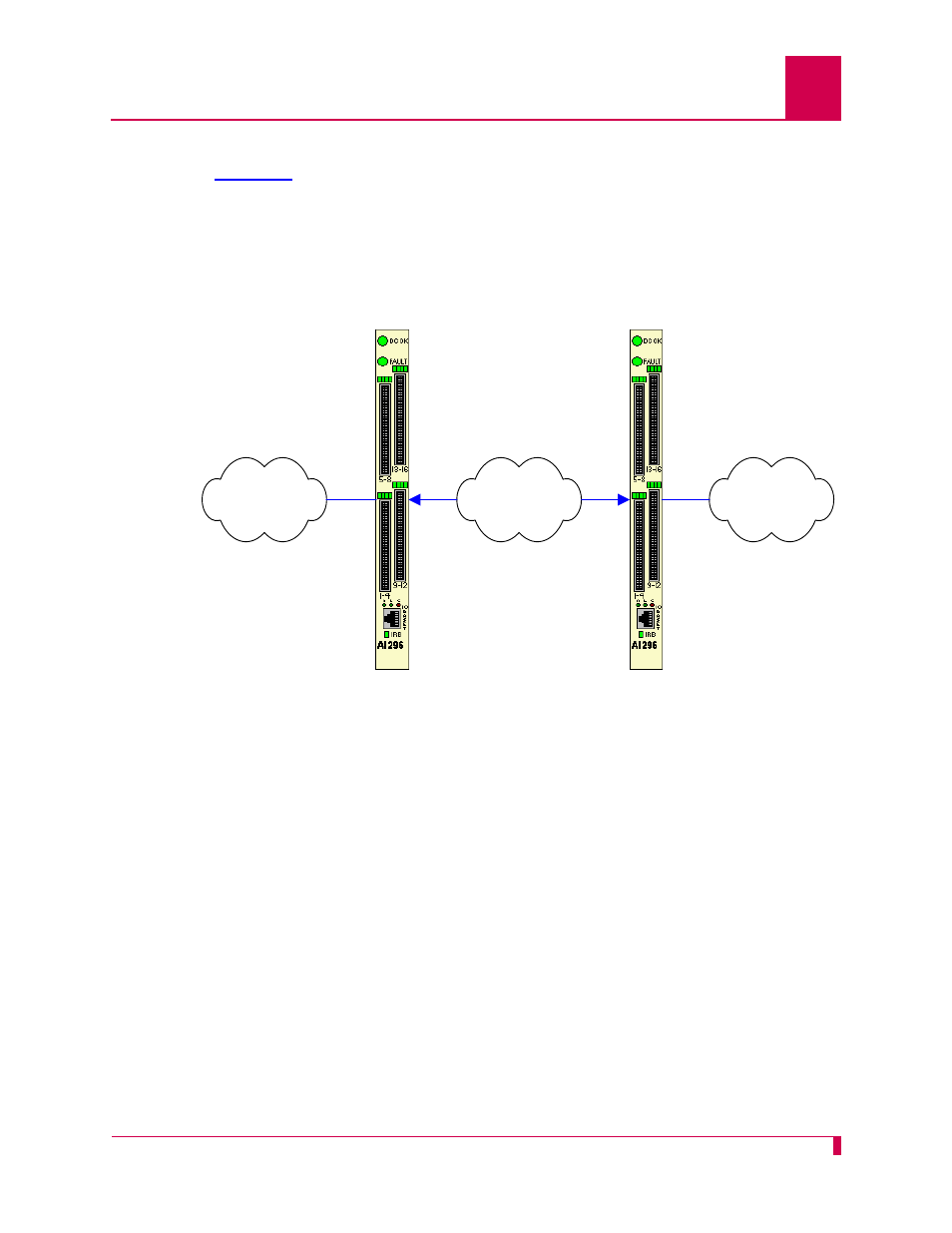

Figure 8-3 SVC to PVC Connection Diagram
TCP/IP Network X.25 Network X.25 Network
Baseport 16
Link 2
LCN 3
Baseport 32
Link 1
LCN 4
Called Address
6145551234
IP Address
172.16.1.111
AI296 Incoming AI296 Outgoing
Called Protocol
TL1
