AI296 Version 9.8x User’s Guide
Product Description: Individual Port Access
1-9
DB-25 Connectors
displays pin assignments for the DB-25 connectors on the DP196-19/23
distribution panel.

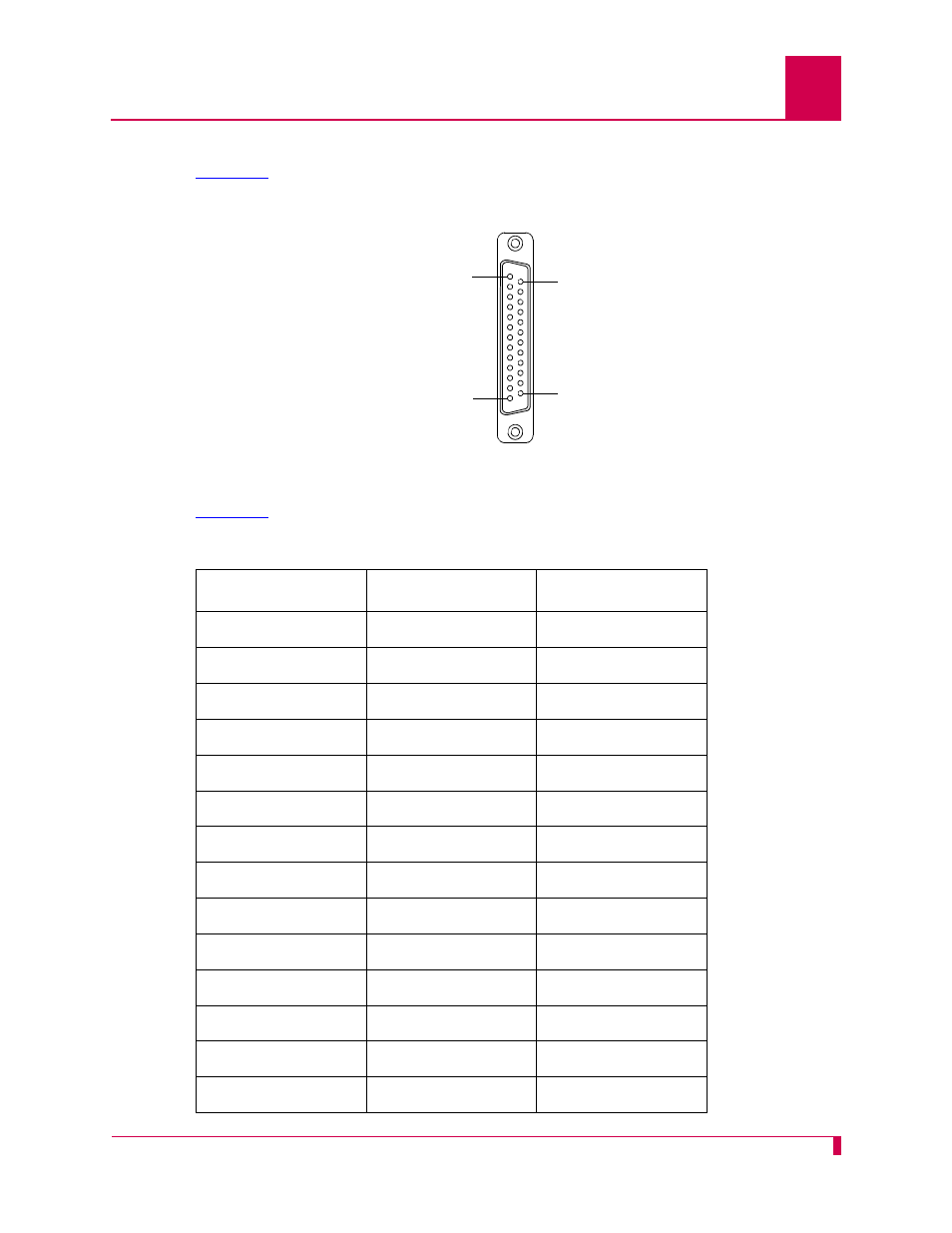

Figure 1-3 DB-25 connector Pin Assignments
displays the DP196-19/23 pin assignment specifications.
Table 1-3 DP196-19/23 Pin Assignment Specifications
Pin Signal
Direction
2
TXD-
Output
3
RXD-
Input
4
RTS-
Output
5
CTS-
Input
7
Signal GND
----
8
DCD-
Input
9
RXC+
Input
10
DCD+
Input
12
TXC+
Either
13
CTS+
Input
14
TXD+
Output
15
TXC-
Either
16
RXD+
Input
17
RXC-
Input
Pin 25
Pin 1
Pin 14
Pin 13
