Kerio Tech Firewall6 - Manual (Page 312)

Chapter 23 Kerio VPN
312

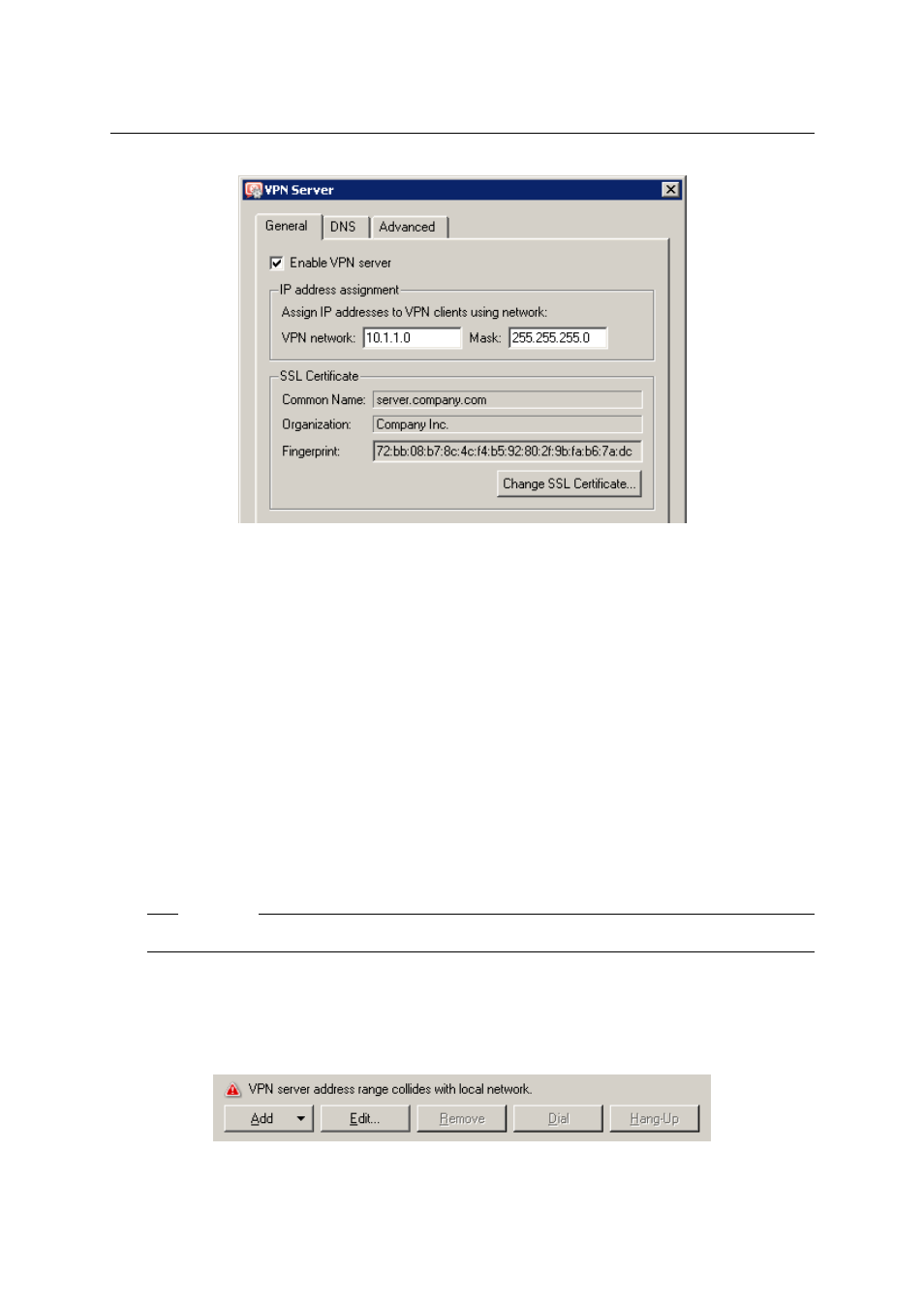

Figure 23.2 VPN server settings — basic parameters
Enable VPN server
Use this option to enable /disable VPN server. VPN server uses TCP and UDP protocols,
port 4090 is used as default (the port can be changed in advanced options, however, it is
usually not necessary to change it). If the VPN server is not used, it is recommended to
disable it.
The action will be applied upon clicking the Apply button in the Interfaces tab.
IP address assignment
Specification of a subnet (i.e. IP address and a corresponding network mask) from which
IP addresses will be assigned to VPN clients and to remote endpoints of VPN tunnels
which connect to the server (all clients will be connected through this subnet).
By default (upon the first start-up after installation), WinRoute automatically selects a free
subnet which will be used for VPN. Under usual circumstances, it is not necessary to
change the default subnet. After the first change in VPN server settings, the recently
used network is used (the automatic detection is not performed again).
Warning
Make sure that the subnet for VPN clients does not collide with any local subnet!
WinRoute can detect a collision of the VPN subnet with local subnets. The collision may
arise when configuration of a local network is changed (change of IP addresses, addition
of a new subnet, etc.), or when a subnet for VPN is not selected carefully. If the VPN
subnet collides with a local network, a warning message is displayed upon saving of the
settings (by clicking Apply in the Interfaces tab). In such cases, redefine the VPN subnet.
Figure 23.3 VPN server — detection of IP collision
