SECTION 2: INSTALLATION AND SETUP
SATO HT200e
Page 2-3

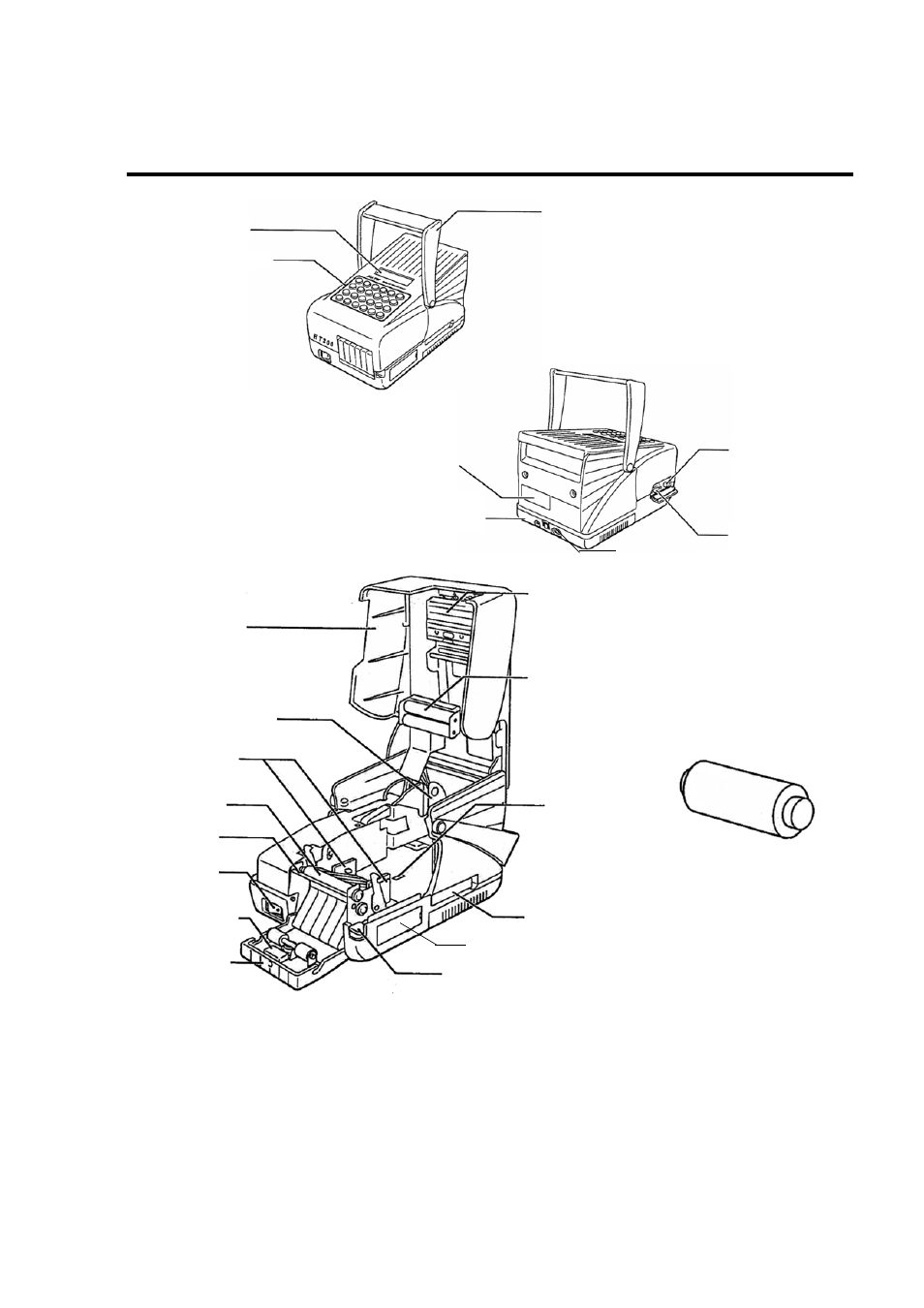

NAMES OF INDIVIDUAL PARTS
Handle
Display
Operation panel
RS-232C
connector
*Manufacturer
Use Only
Scanner
connector
Outlet
Power supply or
battery pack
Power cable
connector
Top cover
Paper bail
Paper holder
Paper guide
Platen roller
Eye mark
Sensor
Dispense pin
Power switch
Dispense sensor
Maintenance cover
*Manufacturer Use Only
Card slot
Reel holder
Dispense frame
Cover open lever
Thermal
head
