4.11 Reset Button
A hardware reset is initiated by means of the reset button on your device. The PC
is restarted.
In the Box PC the reset button is on the drive side beside the floppy drive. The re-
set button can be only actuated with a thin pen (e.g. an opened-up paper clip). The

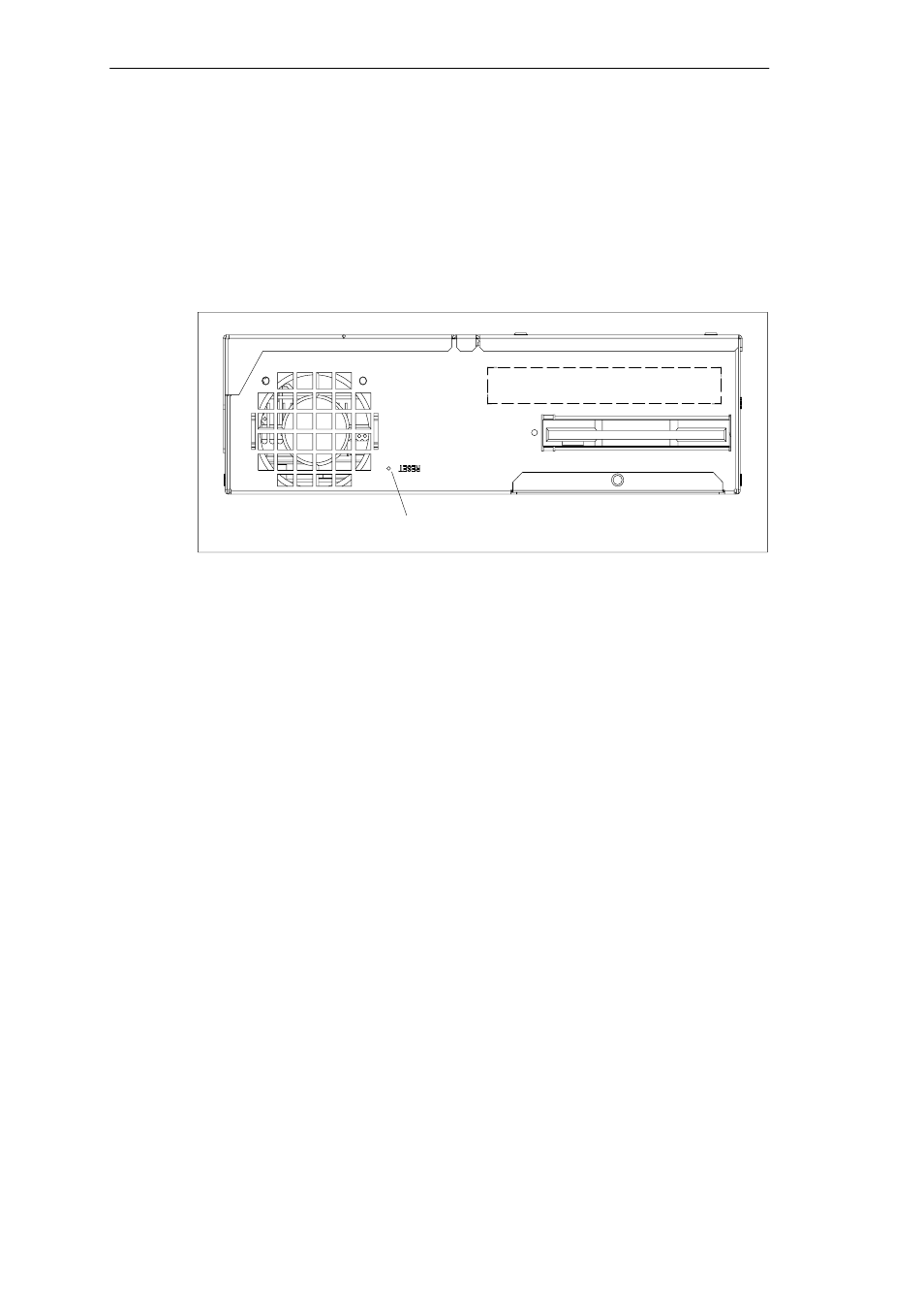

position of the reset button is marked in the illustration of the Box PC below.
Reset button
Figure 4-22 Reset Button
