Setting Up and Operating the SIMATIC Box PC 620
3-5
SIMATIC Box PC 620 Manual
A5E00131465-01
301
297.2
286
232
26
5
266
80.1
11.2

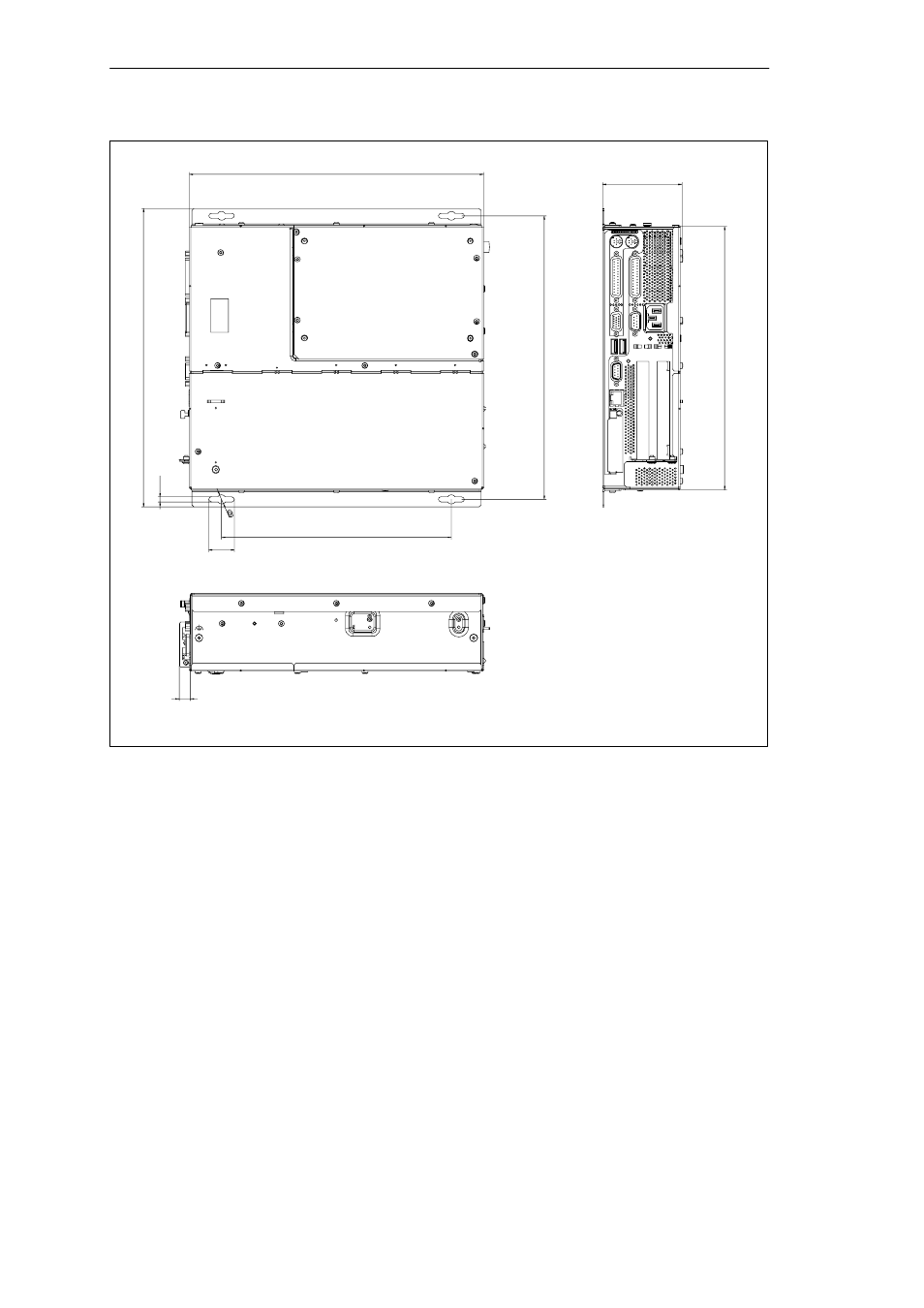

Figure 3-2 Dimension Drawings for Fitting in Control Panel with Installation Angle (Device without CD ROM
Drive)
