Hardware Information
7-17
SIMATIC Box PC 620 Manual
A5E00131465-01
VGA Socket Connector
The VGA socket connector on the Box PC has the following pinout:
1
5
6
10
11
15

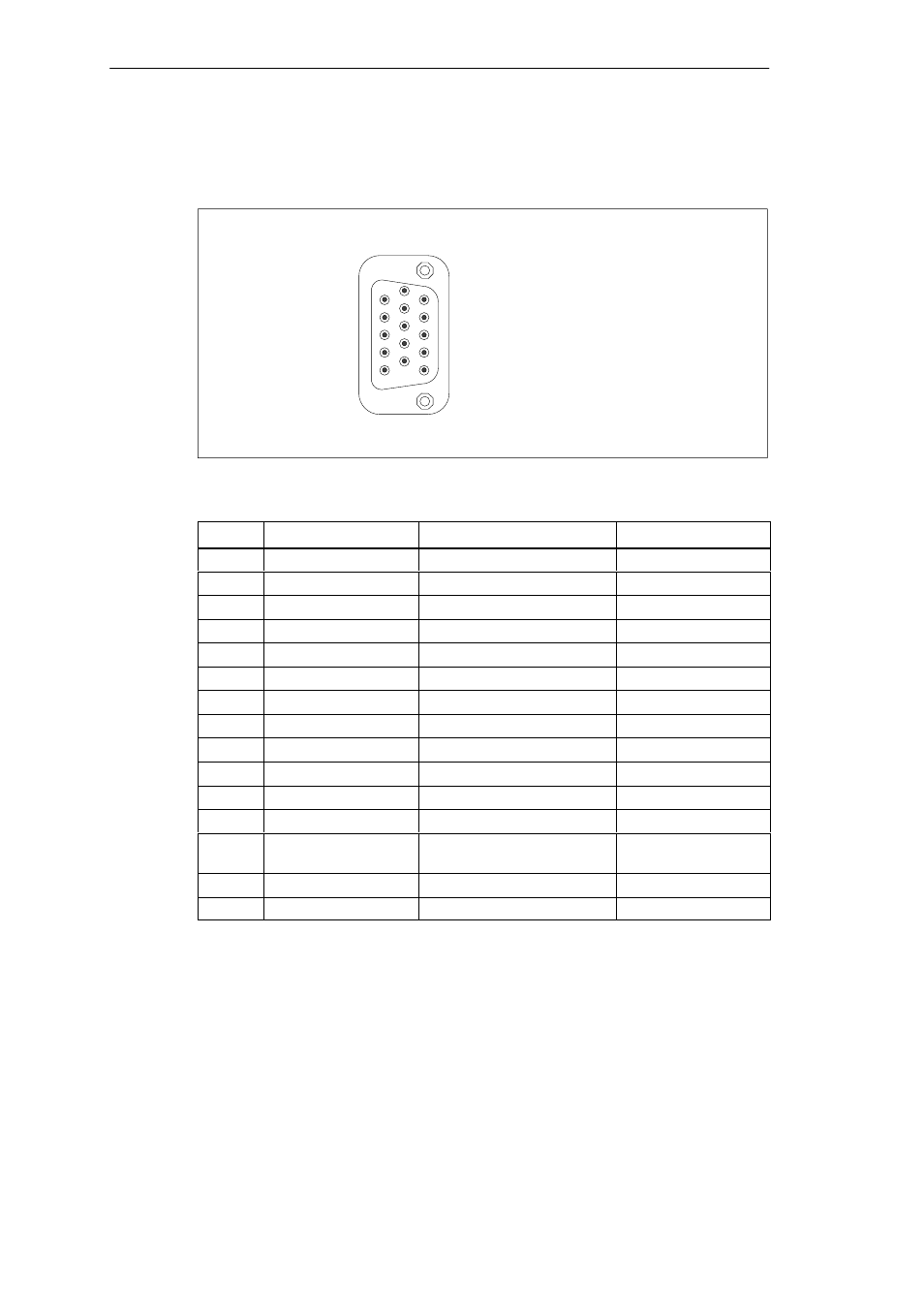

Figure 7-9 VGA Socket Connector
Pin No.
Designation
Description
Input/Output
1
R
Red
Output
2
G
Green
Output
3
B
Blue
Output
4
-
Unassigned
-
5
GND
Ground
-
6
GND
Ground
-
7
GND
Ground
-
8
GND
Ground
-
9
5 V
5 V (fused)
Output
10
GND
Ground
-
11
-
Unassigned
-
12
DDC_DAT
Display Data Channel Data
Input / Output
13
EXT_H
Horizontal synchronizing
pulse
Output
14
EXT_V
Vertical synchronizing pulse
Output
15
DDC_CLK
Display Data Channel Clock
Input / Output
