SIMATIC Box PC 620 Expansions
4-12
SIMATIC Box PC 620 Manual
A5E00131465-01
4.4 Installation of Expansion Cards
Notes about the Cards
The Box PC is designed for the use with cards as per the AT/PCI specification.The
dimensions of the cards may not exceed the stated dimensions. If the height is ex-
ceeded, contact problems, malfunctions and difficulties with the assembly cannot
be excluded. The illustrations show cards with a full AT/PCI overall length.
Depending on the slot, there may be restrictions on the overall length.
175 mm
106,7 mm
A31 A1
6,89 ”
4,201”

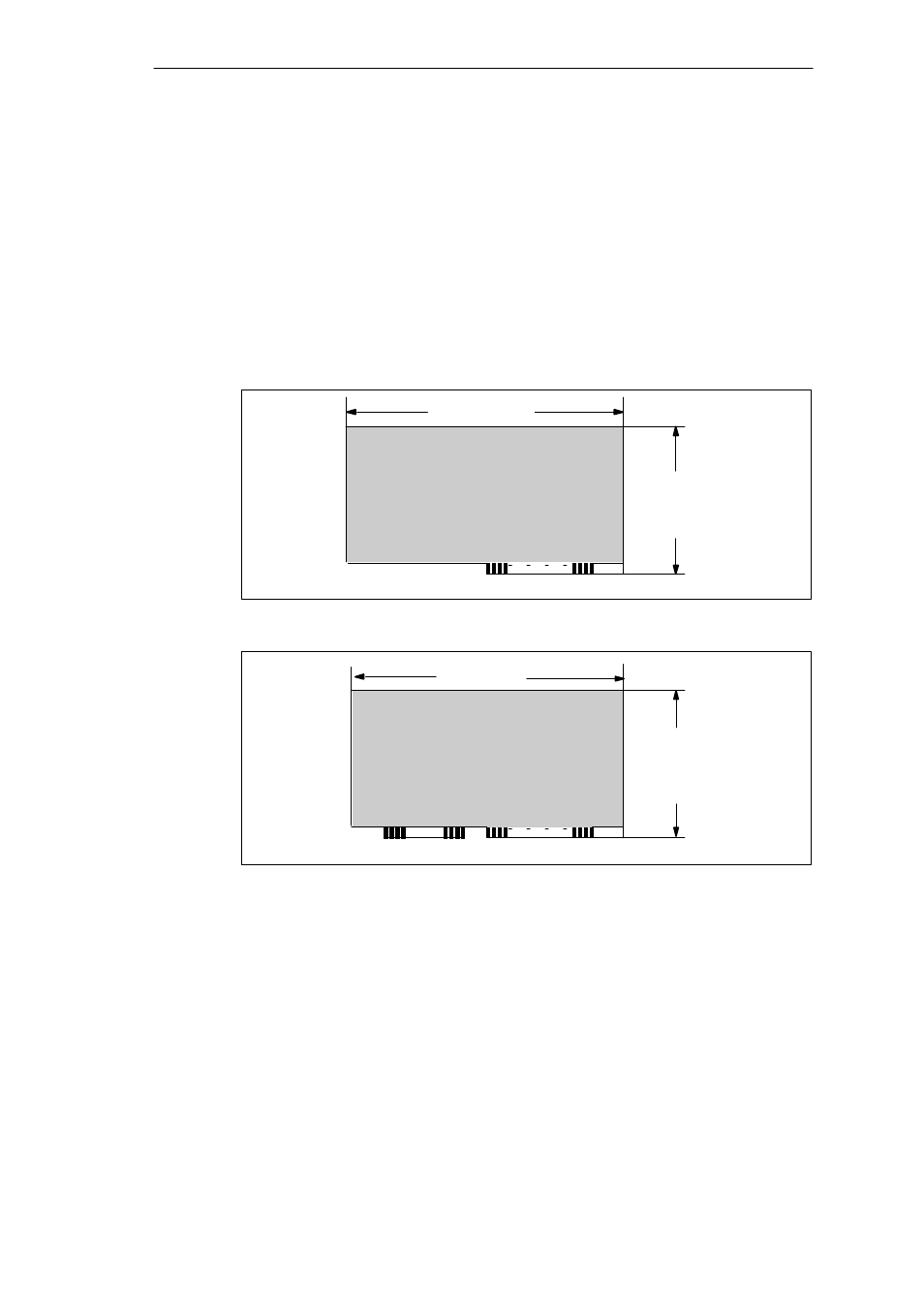

Figure 4-6 XT Card
121,92 mm
A31 A1 C18 C1
4,8”
175 mm
6,89 ”
Figure 4-7 AT Card
