3-11-4. Port-based Group
Function name:
Port-based Group Configuration
Function description:
It shows the information of the existed Port-based VLAN Groups. You can
easily create, edit and delete a Port-based VLAN group by pressing ,
and function buttons. User can add a new VLAN group by
inputting a new VLAN name.

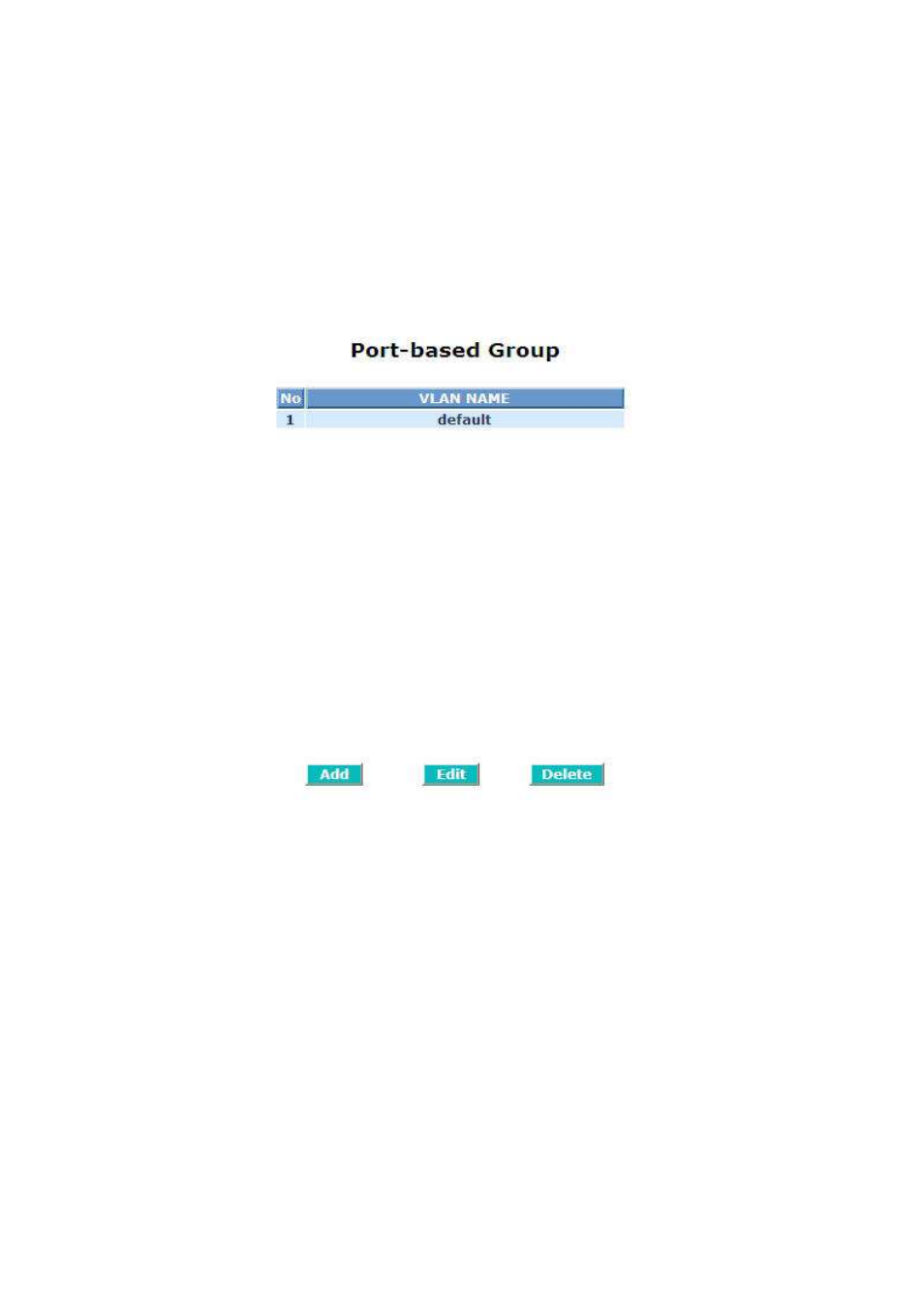

Fig. 3-30
Parameter description:
VLAN Name:
The name defined by administrator is associated with a VLAN group.
Valid letters are A-Z, a-z, 0-9, “
- “ and “_” characters. The maximal
length is 15 characters.
Member:
This is used to enable or disable if a port is a member of the new added
VLAN, “Enable” means it is a member of the VLAN. Just tick the check
box beside the port x to enable it.
