Publication date: March., 2011
Revision A1
113

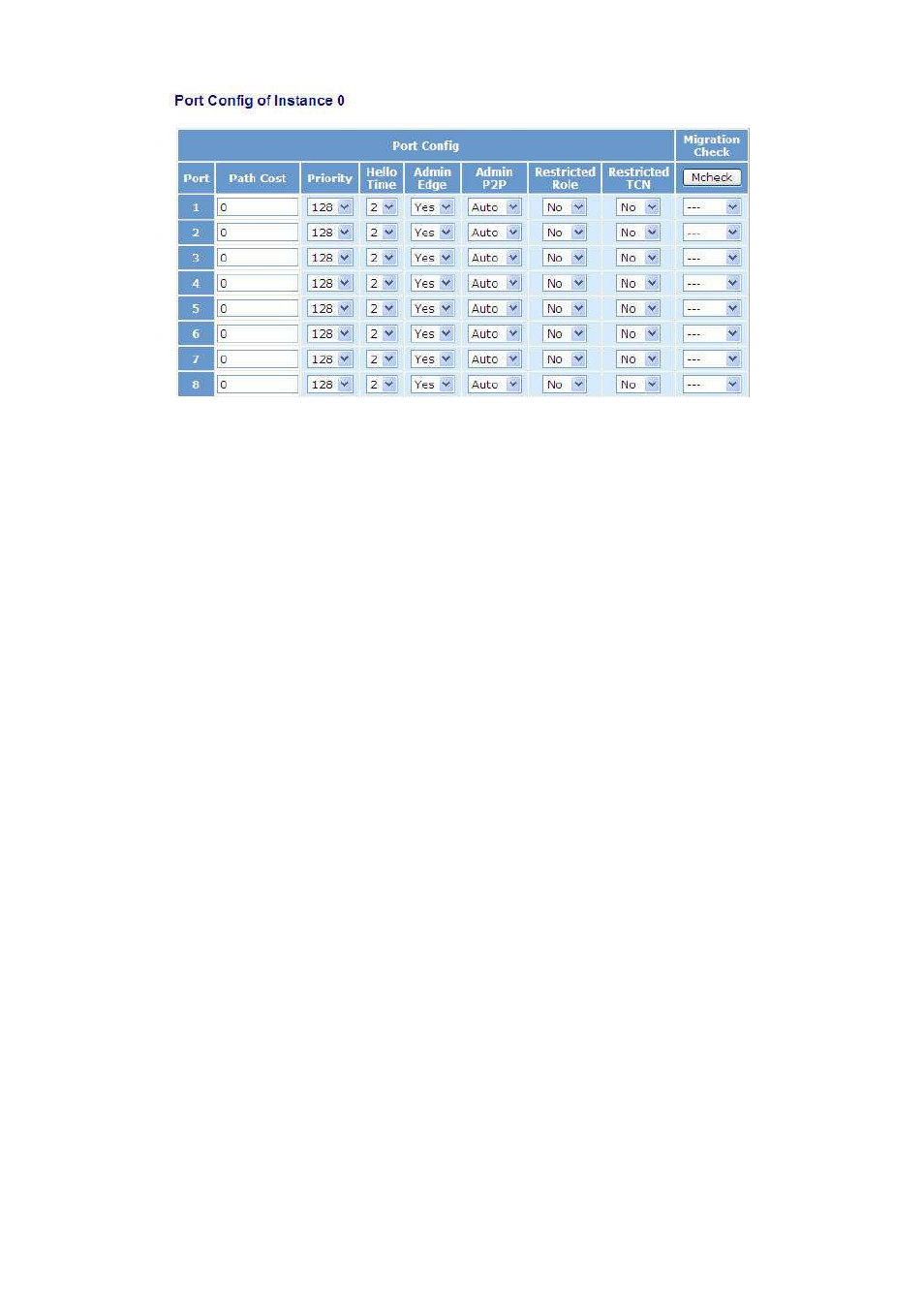

Fig. 3-43.6 Port Config
Parameter description:
Port:
1-24
Path Cost:
1 – 200,000,000
The same definition as in the RSTP specification. But in MSTP, this
parameter can be respectively applied to ports of CIST and ports of any
MSTI.
Priority:
0 / 16 / 32 / 48 / 64 / 80 / 96 / 112 / 128 / 144 / 160 / 176 / 192 / 208 / 224
/ 240
The same definition as in the RSTP specification. But in MSTP, this
parameter can be respectively applied to ports of CIST and ports of any
MSTI.
Hello Time:
1 / 2
In contrast with RSTP, Hello Time in MSTP is a per port setting for the
CIST.
Admin Edge:
Yes / No
The same definition as in the RSTP specification for the CIST ports.
Admin P2P:
Auto / True / False
The same definition as in the RSTP specification for the CIST ports.
