73
3-10. LLDP
The switch supports the LLDP. For current information on your switch model,
The Link Layer Discovery Protocol (LLDP) provides a standards-based method for
enabling switches to advertise themselves to adjacent devices and to learn about
adjacent LLDP devices.
3-10-1 . LLDP State
Function name:
LLDP State
Function description:
The LLDP state function, you can set per port the LLDP configuration and the
detail parameters, the settings will take effect immediately.

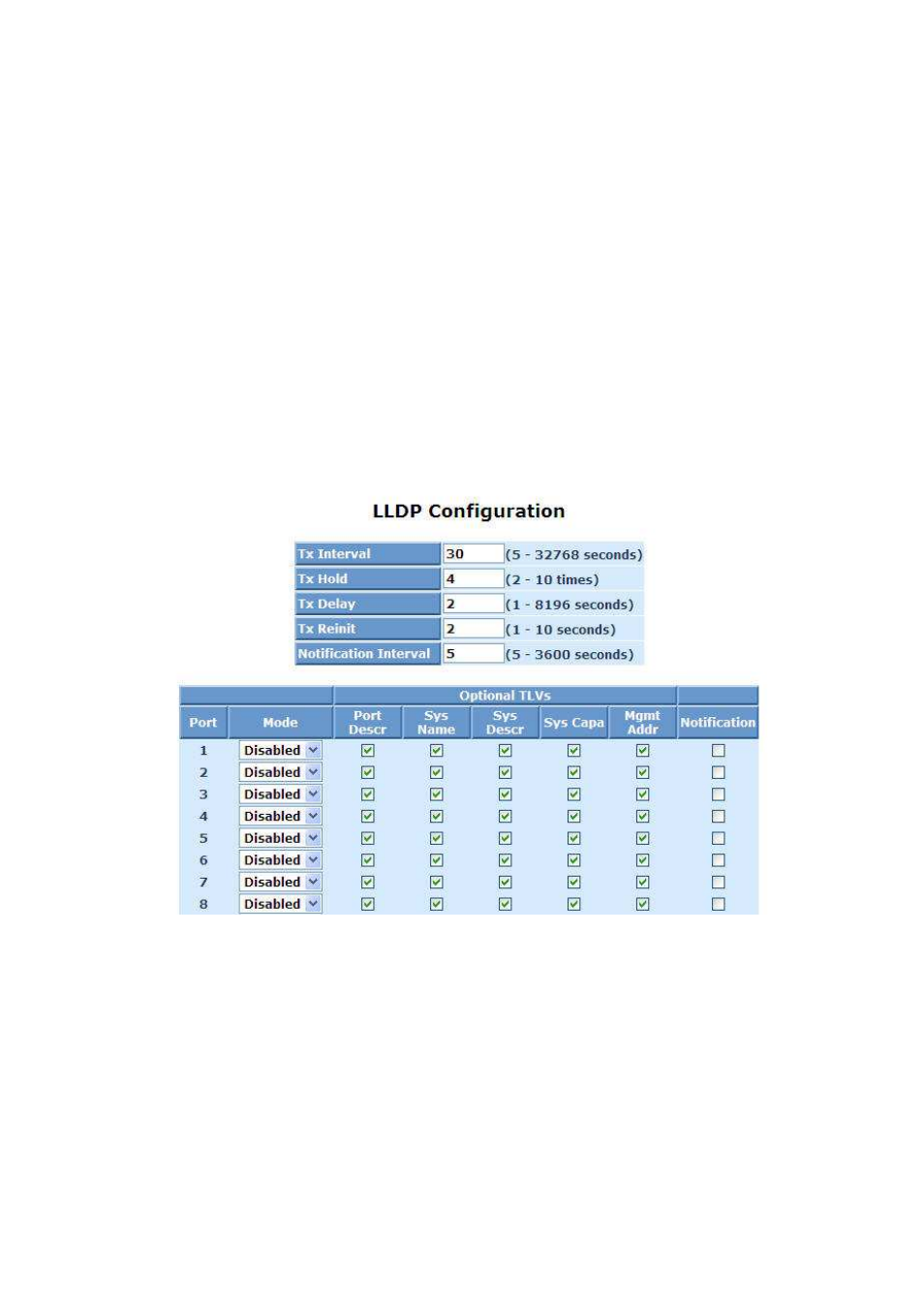

Fig. 3-18-1 LLDP parameter
Parameter description:
Tx Interval
：
：
：
：
To changes the interval between consecutive transmissions of
LLDP advertisements on any given port. (Default: 30 secs)
Tx Hold
：
：
：
：
The specifies the amount of time the receiving device holds a
Link Layer Discovery Protocol (LLDP) packet before discarding
it. (Default: 4 times)
Tx Delay : The specifies the delay between successive LLDP frame
transmissions initiated by value/status changes in the LLDP
local systems MIB. (Default: 2 secs)
Tx Reinit : The specifies the minimum time an LLDP port waits before
