Publication date: March., 2011
Revision A1
153

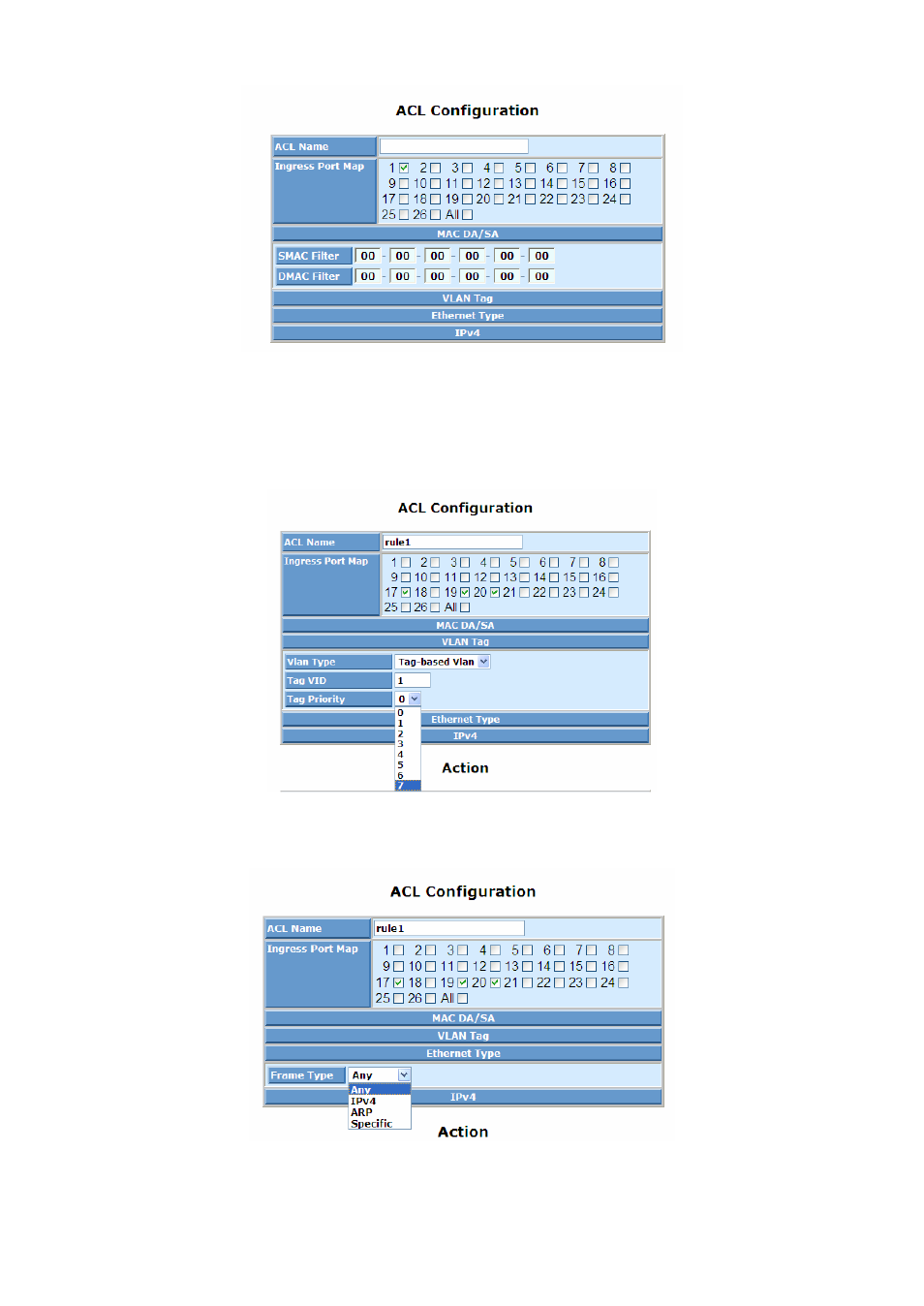

Fig. 3-74
VLAN Tag:
To input VLAN Type with 2 type include “any” and “ Tag-based Vlan” If
you choice Tag-based Vlan type then you must input Tag VID in field and
droll the Tag Priority bar to choice the tag priority from 0 to 7.
Fig. 3-75
Ethernet Type:
Fig. 3-76
