This is used to enable or disable if a port is a member of the new added
VLAN, “Enable” means it is a member of the VLAN. Just tick the check
box beside the port x to enable it.
Utag:
This is used to enable or disable if a port is a utag member of the new
added VLAN, “Enable” means it is a utag member of the VLAN. Just tick
the check box beside the port x to enable it.
Action:
The mode here means the type of participant. There are two modes,
Active and NotInService, provided for the user’s choice.
Active:
It is Active Participant. In this mode, the switch participates
active in GARP protocol exchanges. The default setting is
Active.
NotInService:
It is NotInService. In this mode, the switch does not send or
reply any GARP messages. It just listens messages and
reacts for the received GVRP BPDU.

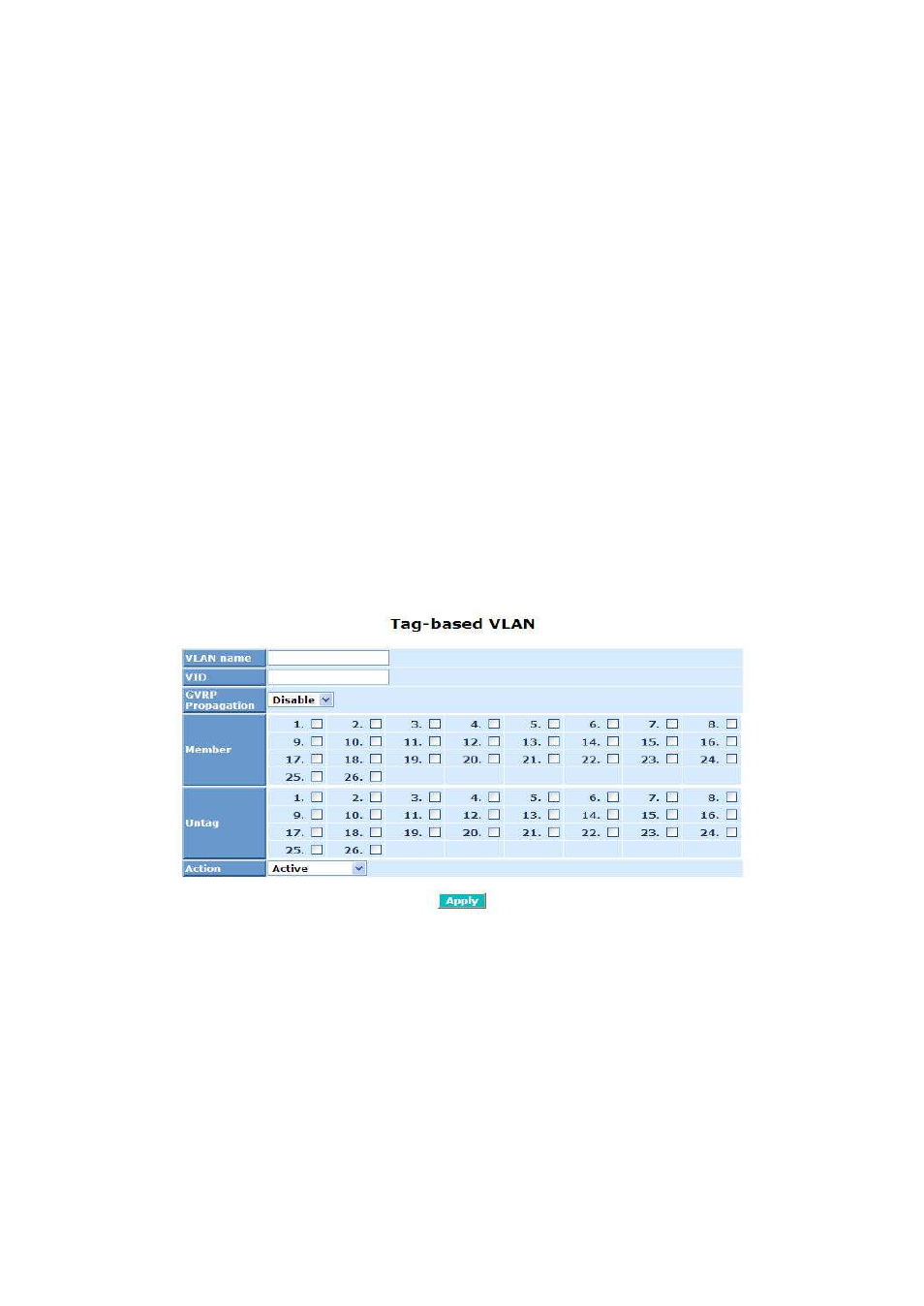

Fig. 3-27
Delete Group:
Just press the
the Tag-based group table.
Edit a group:
Just select a group entry and press the
modify a group’s description, member and untag settings.
