75
3-10-2 . LLDP Entry
Function name:
LLDP Entry
Function description:
The LLDP Entry function allows a switch to display per port which build the
LLDP available entry. This information can be useful in tracking LLDP packets
back to a physical port.

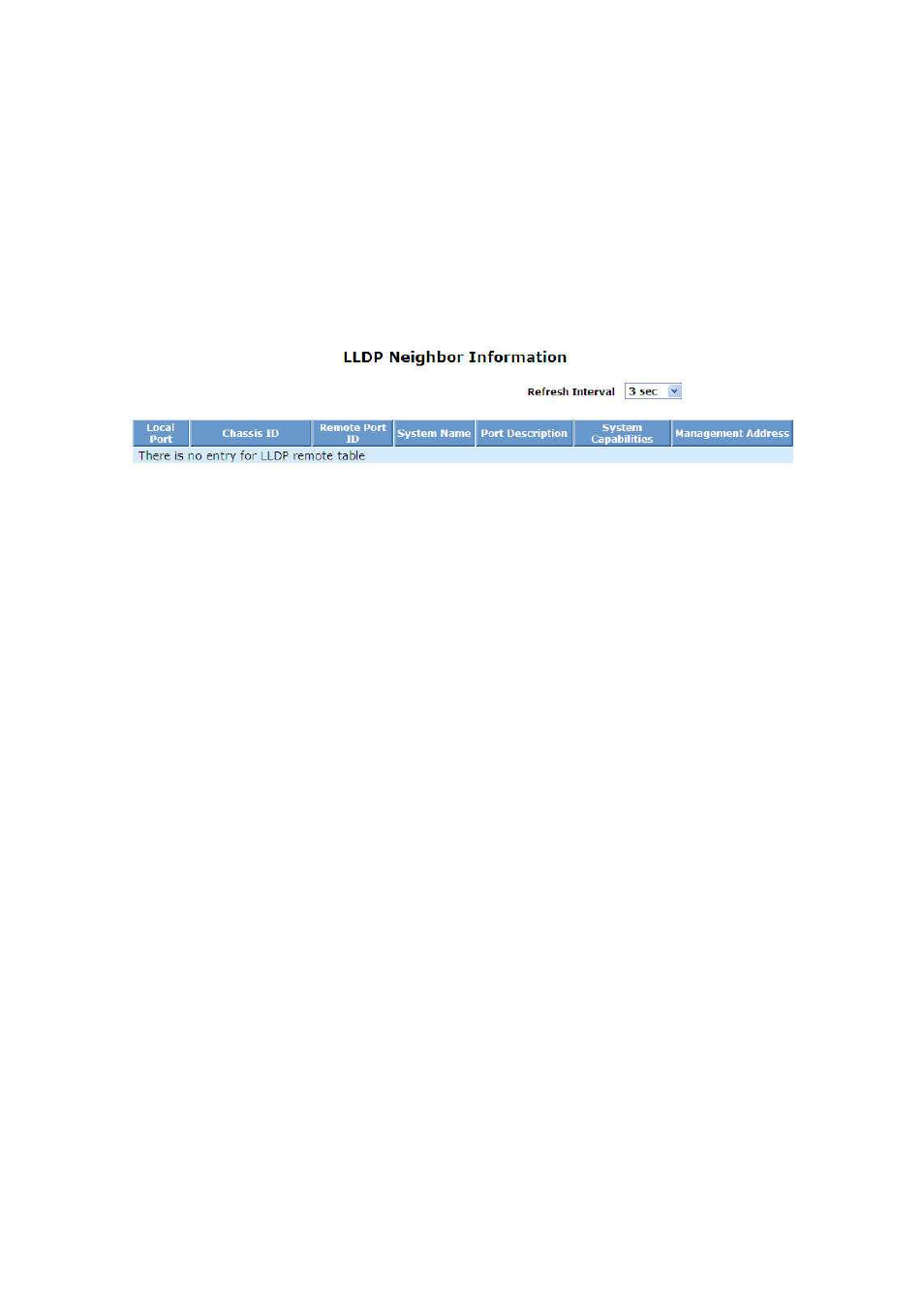

Fig. 3-18-2 LLDP Entry
Parameter description:
Local port:
To display the switch local port.
Chassis ID:
To display the Chassis ID which connect to the switch and what the
neighbor Chassis ID.
Remote Port ID:
To display the Remote Port ID which connect to the switch and what the
neighbor’s remote port ID.
System name:
To display the system name which connect to the switch and which
device supports the LLDP
Port Description:
To display an alphanumeric string describing the port what the neighbor’s
port description.
System Capabilities:
To display an includes a bitmask of system capabilities (device functions)
