54
3-5-2. Port Configuration
Port Configuration is applied to change the setting of each port. In this configuration
function, you can set/reset the following functions. All of them are described in
detail below.
Function name:
Port Configuration
Function description:
It is used to set each port’s operation mode. The switch supports 3
parameters for each port. They are State, Speed/Duplex and Flow Control.

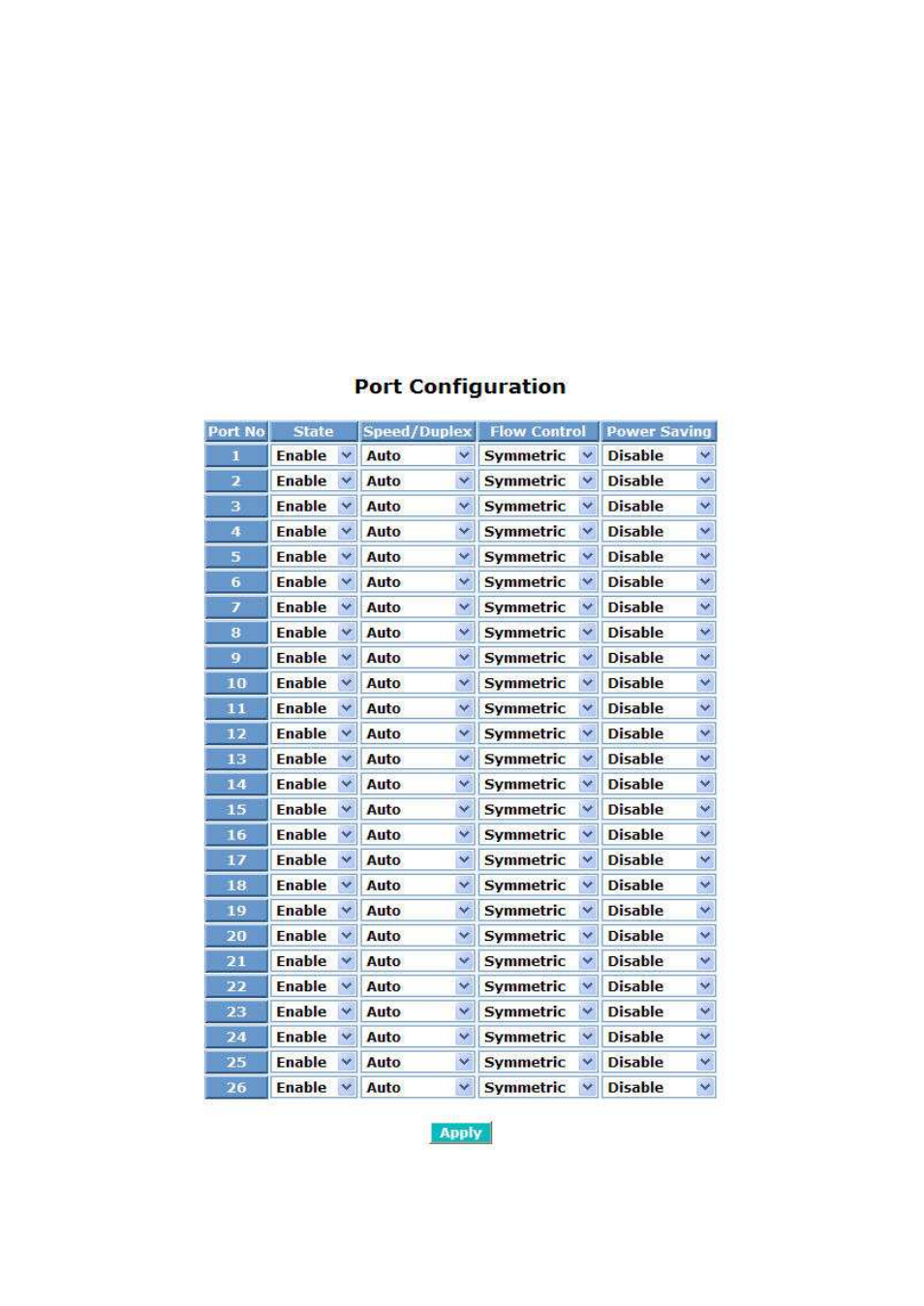

Fig. 3-15
Parameter description:
