Publication date: March., 2011
Revision A1
157

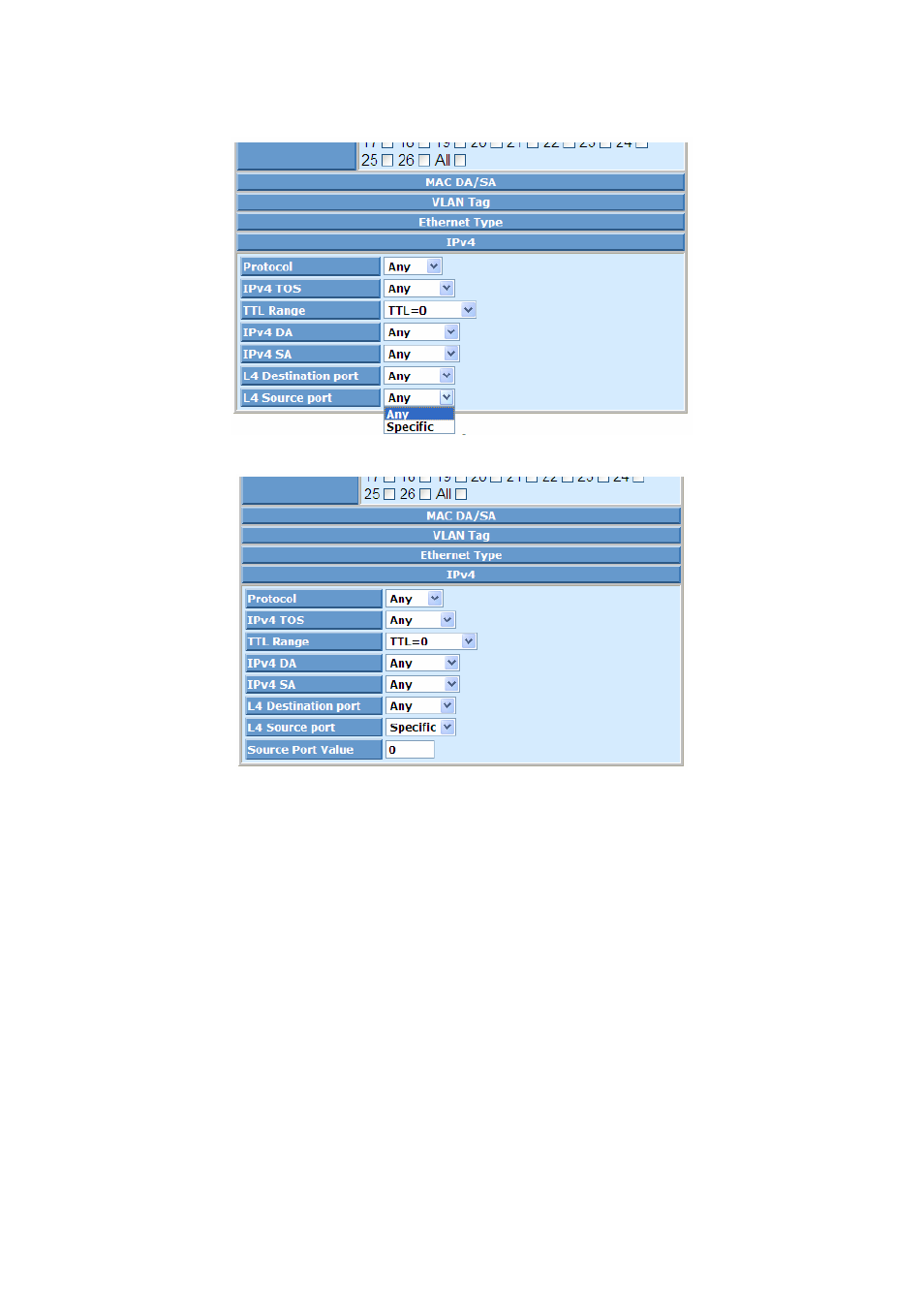

L4 Source port : To droll the bar and you can elect “ Any” and
“Specific”. If you click “specific” then you need to set source port value.
Fig. 3-85
Fig. 3-86
Action:
To set network packet filter includes “In-band” , “Out-band” and “Modify
Packet for In/Out-Band”.
In-Band / Out-Band:
Forward Decision:
To droll down the bar to elect “No change” , “ Use new forward
map” , “ ORed with new map” and “ Explicit actions”
Use new forward map: When the packet is in-band then it will
forward to new map.
ORed with new map: When the packet is in-band then it will
redirect forward to new map.
Explicit actions: When the packet is in-band then it forward with
explicit action and You need to elect the parameters.
