Publication date: March., 2011
Revision A1
115

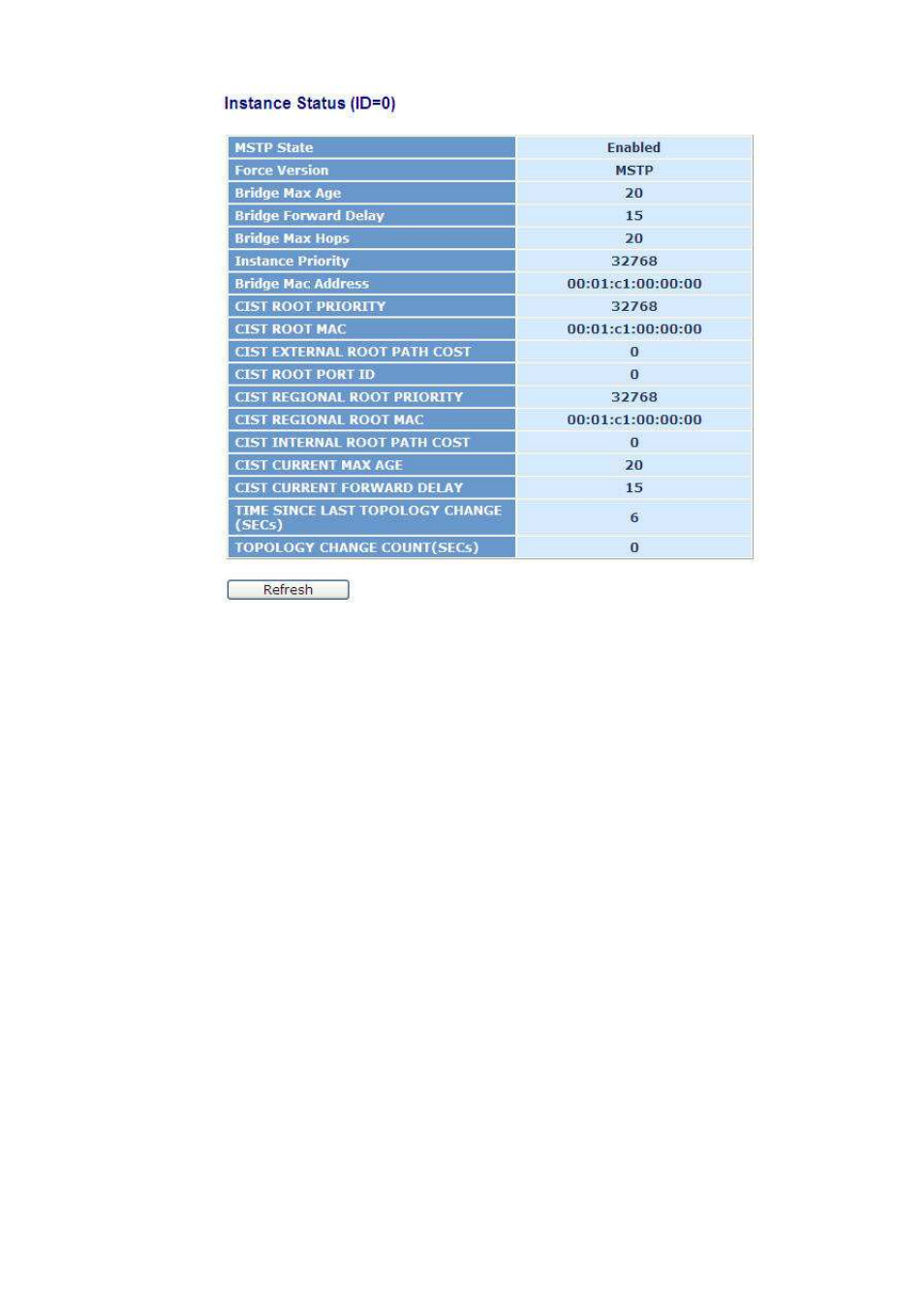

Fig. 3-43.7 Instance Status
Parameter description:
MSTP State:
MSTP protocol is Enable or Disable.
Force Version:
It shows the current spanning tree protocol version configured.
Bridge Max Age:
It shows the Max Age setting of the bridge itself.
Bridge Forward Delay:
It shows the Forward Delay setting of the bridge itself.
Bridge Max Hops:
It shows the Max Hops setting of the bridge itself.
Instance Priority:
Spanning tree priority value for a specific tree instance(CIST or MSTI)
Bridge Mac Address:
The Mac Address of the bridge itself.
