ICP DAS USA MSM-6226 User Manual
Page 166

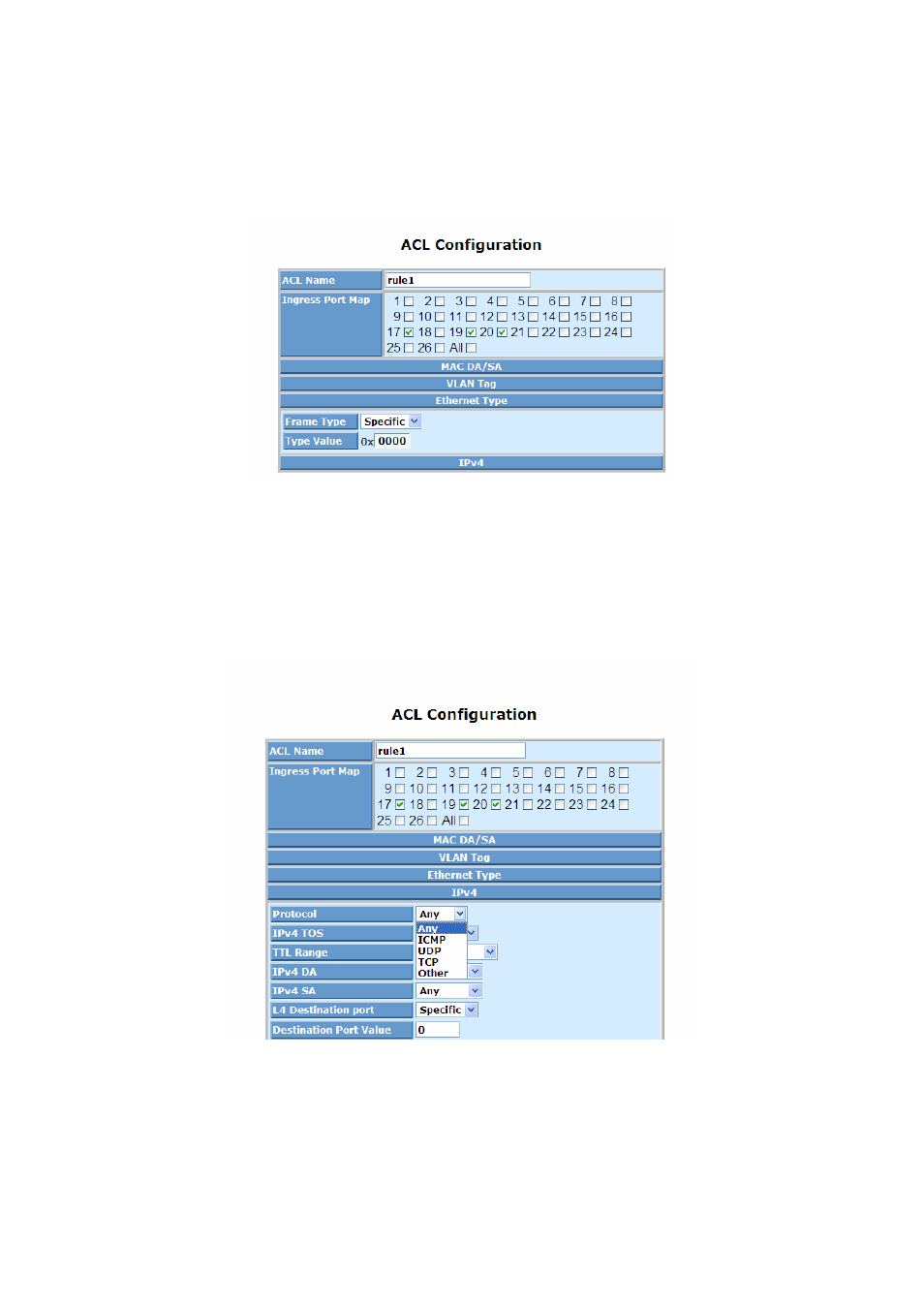

To droll “Ethernet Type” bar and option “any”, “ IPv4”, “ ARP” and
“ Specific” for ACL requirement.
Any: It is including all frame type
IPv4: It is including all IPv4 protocol frame type
ARP: It is including all ARP protocol frame type
Specific: It is specific frame type
Fig. 3-77
IPv4:
To set the IPv4 packet filter function with ACLs, the parameters
shown as below:
Protocol : To droll the bar and you can elect “ Any”, “ICMP”, “ UDP”,
“TCP” and “Other”
Fig. 3-78
