Parameter description:
Add
To add new access control rule on switch. You must configure the
parameters what described later when you add the new access control
rule.
Edit/ Show:
To modify or monitor the access control configuration rule on switch.
Delete:
To delete existed access control rule on switch.

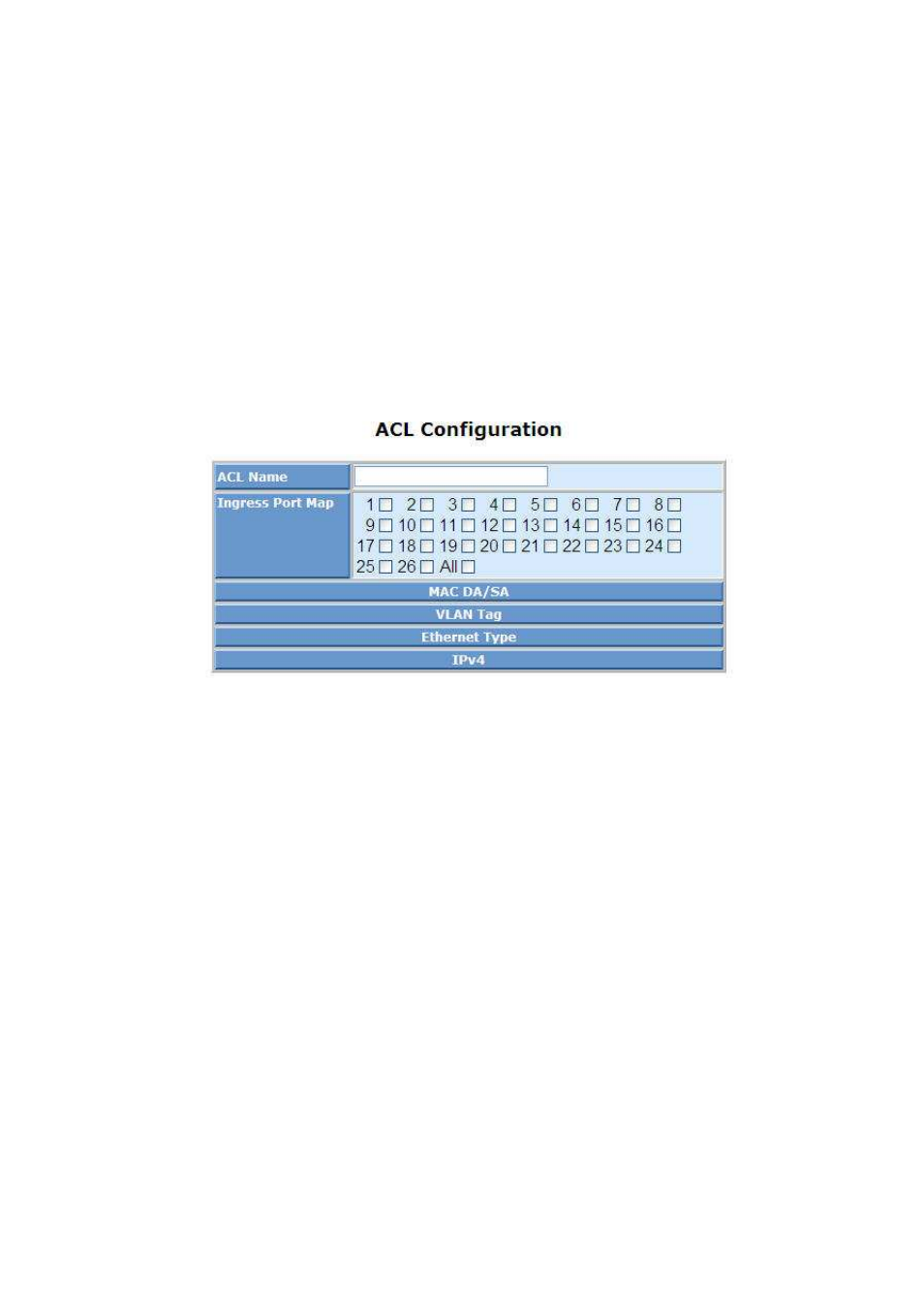

Fig. 3-73
ACL Configuration:
To add a new ACL rule on switch.
ACL name:
To add a new ACL rule name, A name is composed of any letter (A-Z, a-z)
and digit (0-9) with maximal 8 characters.
Ingress Port Map:
To evoke the ingress ports to join the access control rule. port number is
1~26 or all.
MAC DA/SA:
To input the source and destination MAC filter.
For example: 00-40-c7-00-00-01
