3-11-2. Tag-based Group
Function name:
Tag-based Group Configuration
Function description:
It shows the information of existed Tag-based VLAN Groups. You can also
easily create, edit and delete a Tag-based VLAN group by pressing ,
and function buttons. User can add a new VLAN group by
inputting a new VLAN name and VLAN ID after pressing button.

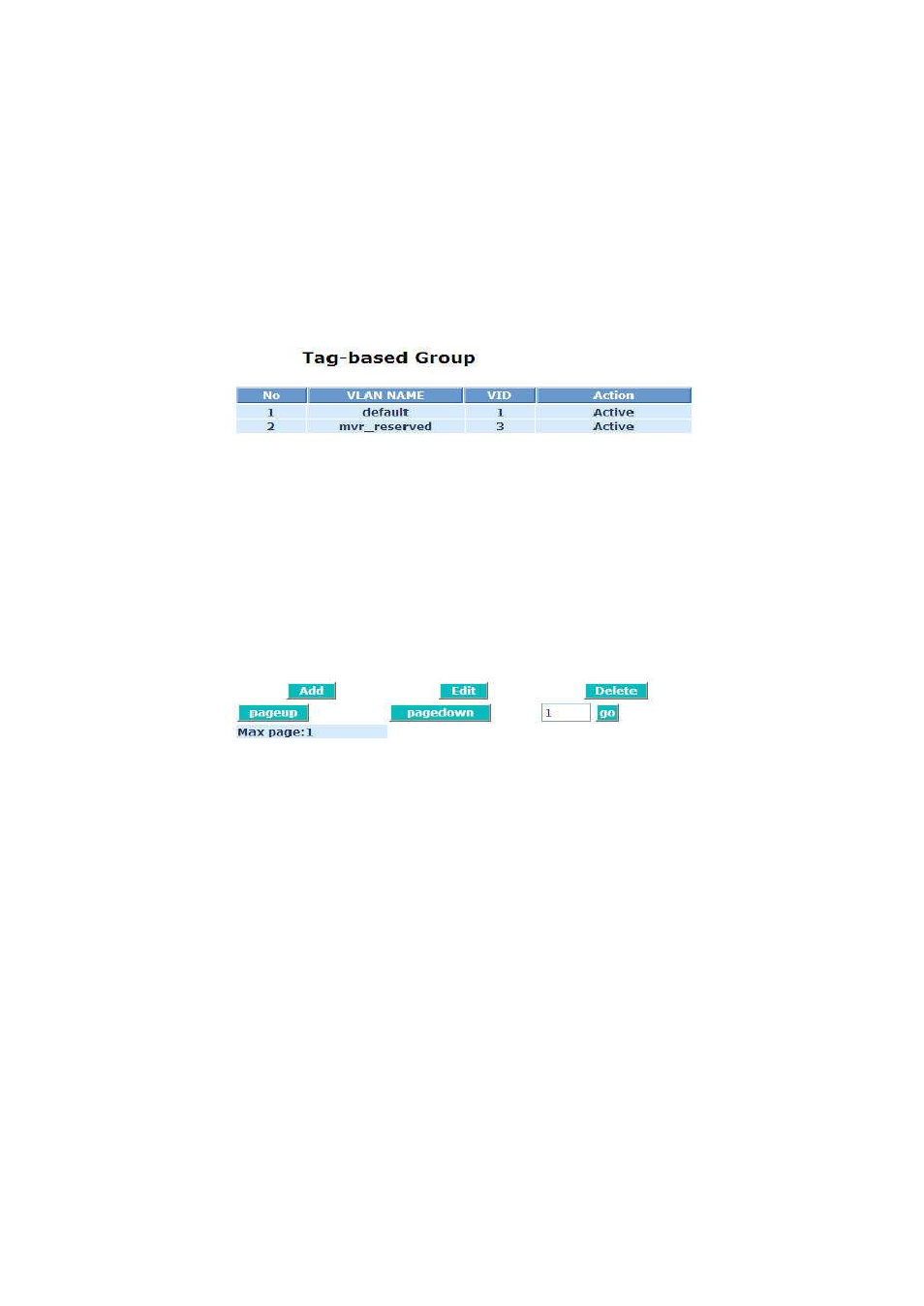

Fig. 3-26
Parameter description:
No:
To display current built-up tag base VLAN entry index
VLAN Name:
The name defined by administrator is associated with a VLAN group.
Valid letters are A-Z, a-z, 0-9, “
- “ and “_” characters. The maximal
length is 15 characters.
VID:
VLAN identifier. Each tag-based VLAN group has a unique VID. It
appears only in tag-based and Double-tag mode.
GVRP Propagation:
This is used to enable or disable if a port is a member of the new added
VLAN, “Enable” means it is a member of the VLAN. You can configure
an individual port to actively or passively participate in dynamic VLAN
propagation or to ignore dynamic VLAN (GVRP) operation.
