119
Per Trunking Group supports a maximum of 4 ready member-ports. Please
note that some decisions will automatically be made by the system while you are
configuring your trunking ports. Trunk Setting Rules are listed below:
Rule1: Maximum 3 groups are allowed
Rule 2: The members of each group cannot exceed more than 4 ports
Rule 3: Group 1 and 2 cannot exist member 25 and 26 port
Rule 4: Group 3 cannot exist member from 1 to 24 port

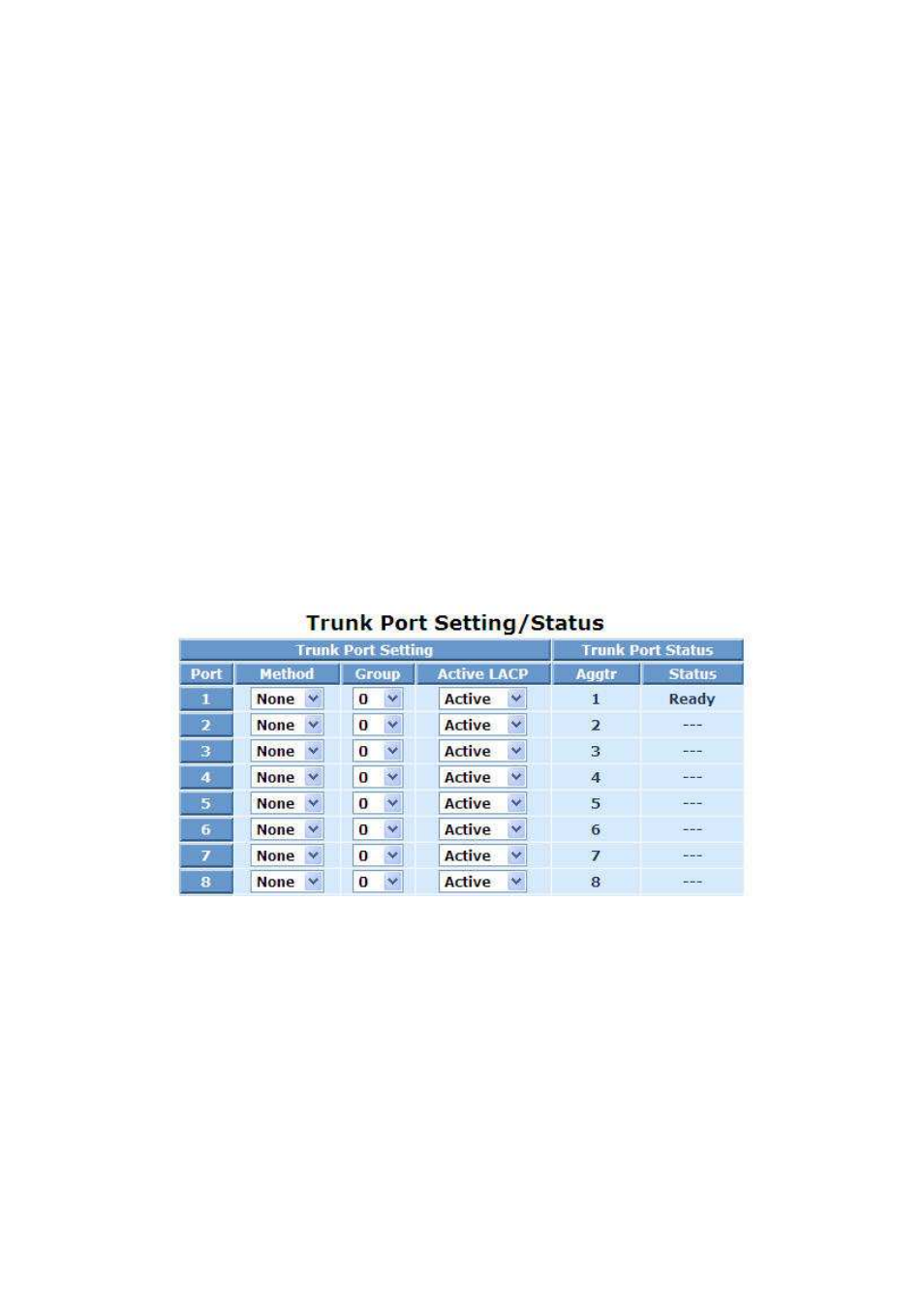

Function name:
Port Setting/Status
Function description:
Port setting/status is used to configure the trunk property of each and every
port in the switch system.
Fig.3- 44
Parameter description:
Method:
This determines the method a port uses to aggregate with other ports.
None:
A port does not want to aggregate with any other port should
choose this default setting.
