Publication date: March., 2011
Revision A1
163
Function name:
Auto Ping
Function description:
Auto Ping function is a tool for detecting if the target device is alive or not
through ICMP protocol which abounds with report messages. The switch
provides auto Ping Test function to let you know that if the target device is
available or not.

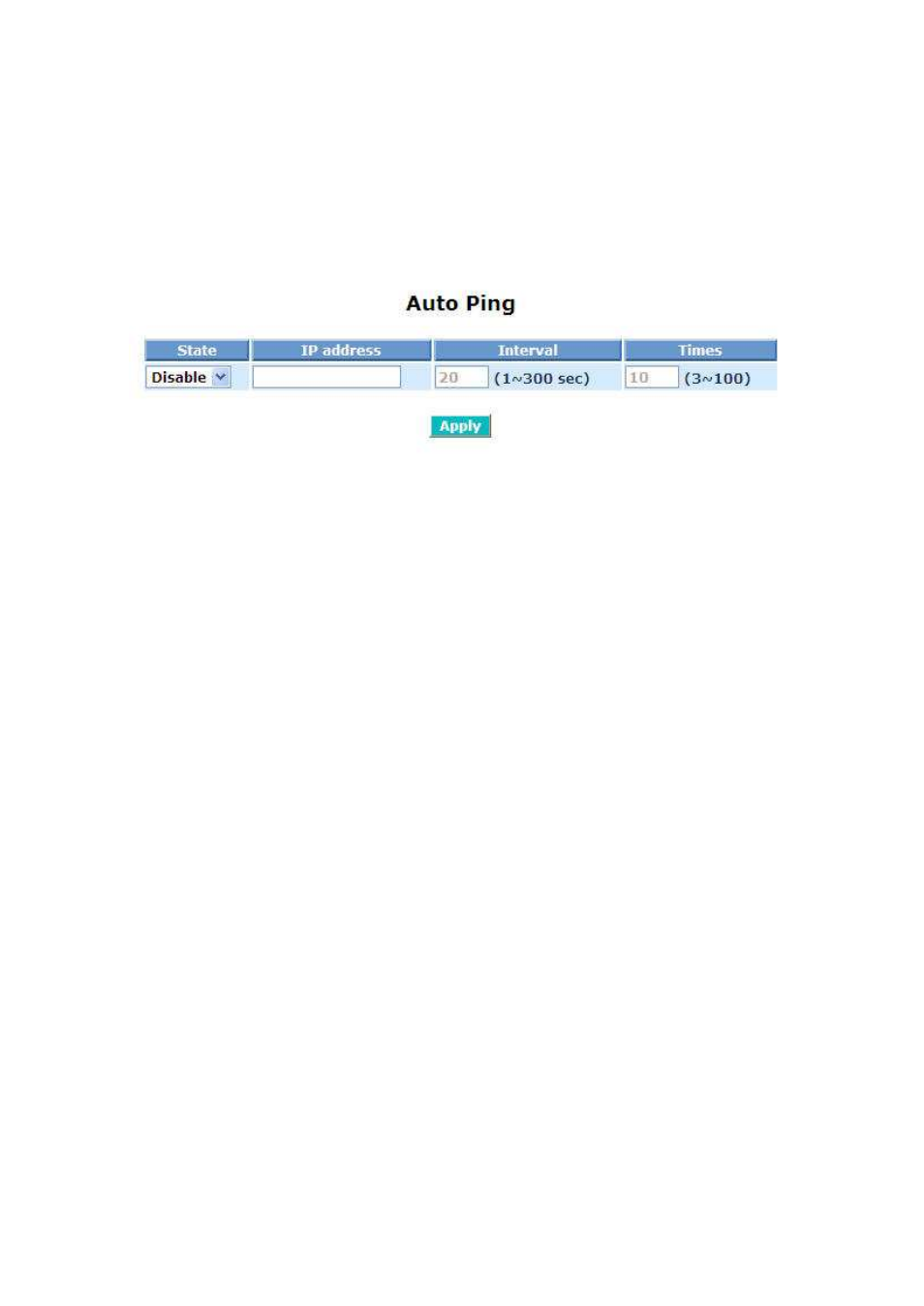

Fig. 3-98
Parameter description:
IP Address:
An IP address with the version of v4, e.g. 192.168.1.1.
Interval:
Range is 1 ~300 sec.
Times:
Range is 3 ~100
