Function name:
802.1x Mode Setting
Function description:
Set the operation mode of 802.1X for each port. In this device, it supports
Normal and Advanced 802.1X mode.

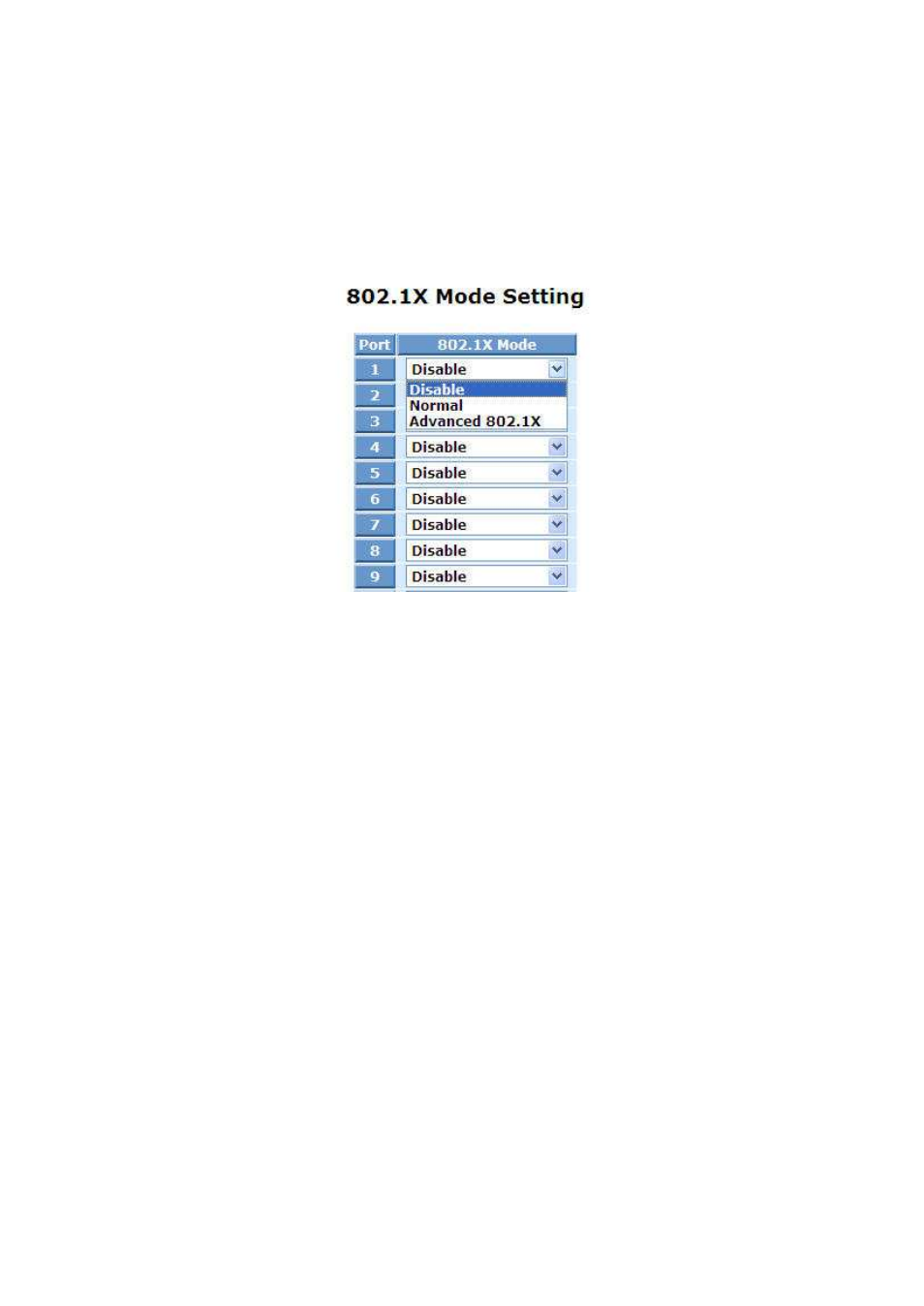

Fig. 3-52
Parameter description:
Port Number:
Indicate which port is selected to configure the 802.1x operation mode.
802.1x Mode:
802.1x operation mode. There are two options, including Disable and
Multi-host mode. Default is Disable.
Disable
It will have the chosen port acting as a plain port, that is no 802.1x
port access control works on the port.
Normal
It will have the chosen port acting as a plain port, that is normal 802.1x
port access control works on the port.
Advanced 802.1X
In Advanced 802.1X mode, for the devices connected to this port,
once a supplicant is authorized, the devices connected to this port can
access the network resource through this port.
