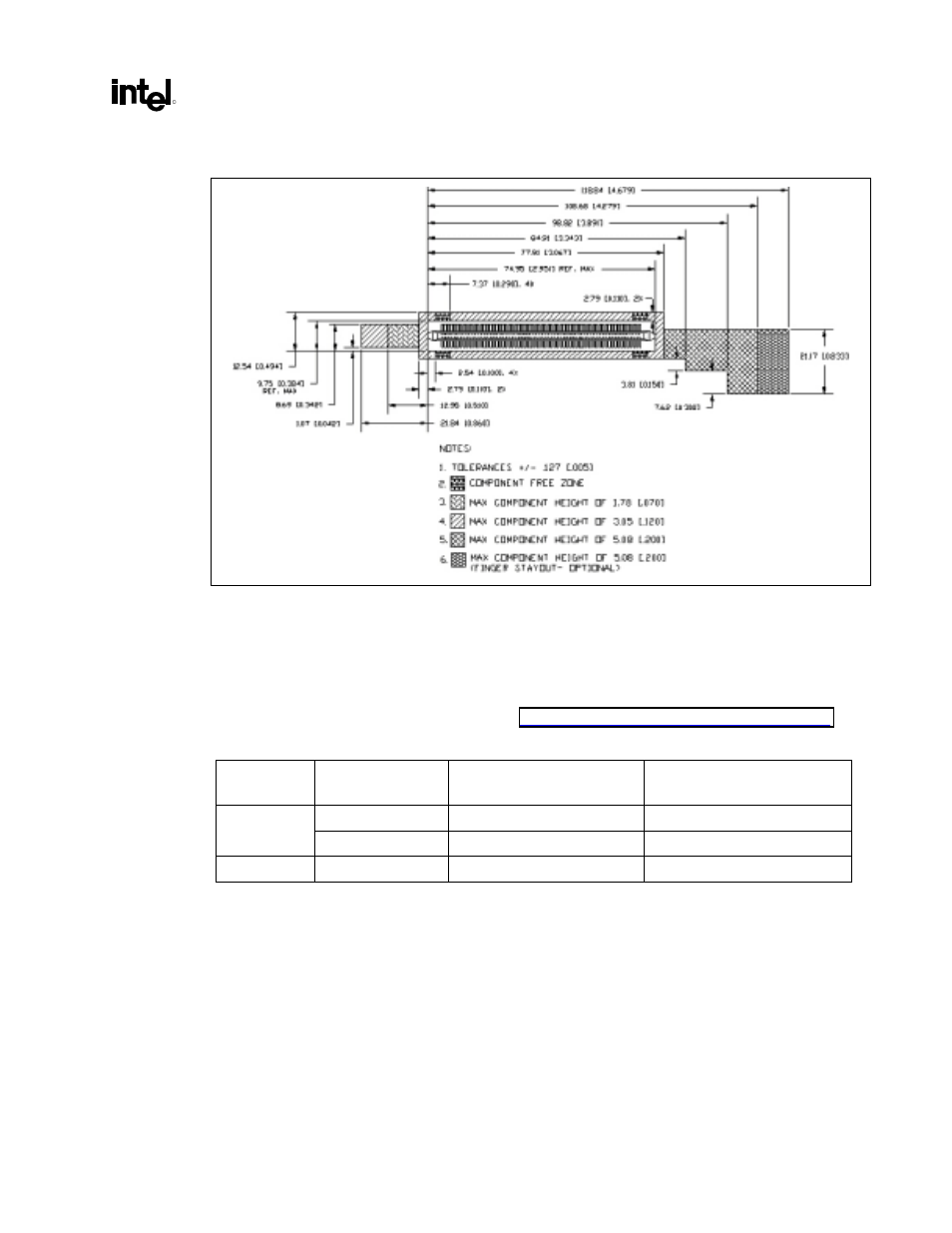

Figure 41. AGP Left-Handed RM Keep-Out Information
Recommended for all AGP cards, the AGP RM is detailed in Engineering Change Request No. 48
(ECR #48), which details approved changes to the Accelerated Graphics Port (AGP) Interface
Specification, Revision 2.0. Intel intends to incorporate the AGP RM changes into later revisions of the
AGP interface specification. In addition, Intel has defined a reference design for a mechanical device
utilizing the features defined in ECR #48.
ECR #48 can be viewed on the Intel Web site at:
More information regarding this component (AGP RM) is available from the following vendors:
Resin Color
Supplier Part No.
“Left-Handed” Orientation
(Preferred)
“Right-Handed” Orientation
(Alternate)
AMP P/N
136427-1
136427-2
Black
Foxconn P/N
006-0002-939
006-0001-939
Green Foxconn
P/N
009-0004-008
009-0003-008
