3.5.4. Flight Time Definition and Measurement
Timing measurements consist of minimum and maximum flight times, to take into account the fact that
devices can turn on or off anywhere in a V
REF
guard band region. This region is bounded by
V
REF
– ∆ V
REF
and V
REF
+ ∆ V
REF
. The minimum flight time for a rising edge is measured from the time
the driver crosses V
REF
when terminated to a test load, to the time when the signal first crosses
V
REF
– ∆ V
REF
at the receiver (see Figure 85). Maximum flight time is measured to the point where the
signal first crosses V
REF
+ ∆ V
REF
, assuming that the ringback, edge rate, and monotonicity criteria are
met. Similarly, minimum flight time measurements for a falling edge are taken at the
V
REF
+ ∆ V
REF
crossing, and maximum flight time is taken at the V
REF
– ∆ V
REF
crossing.

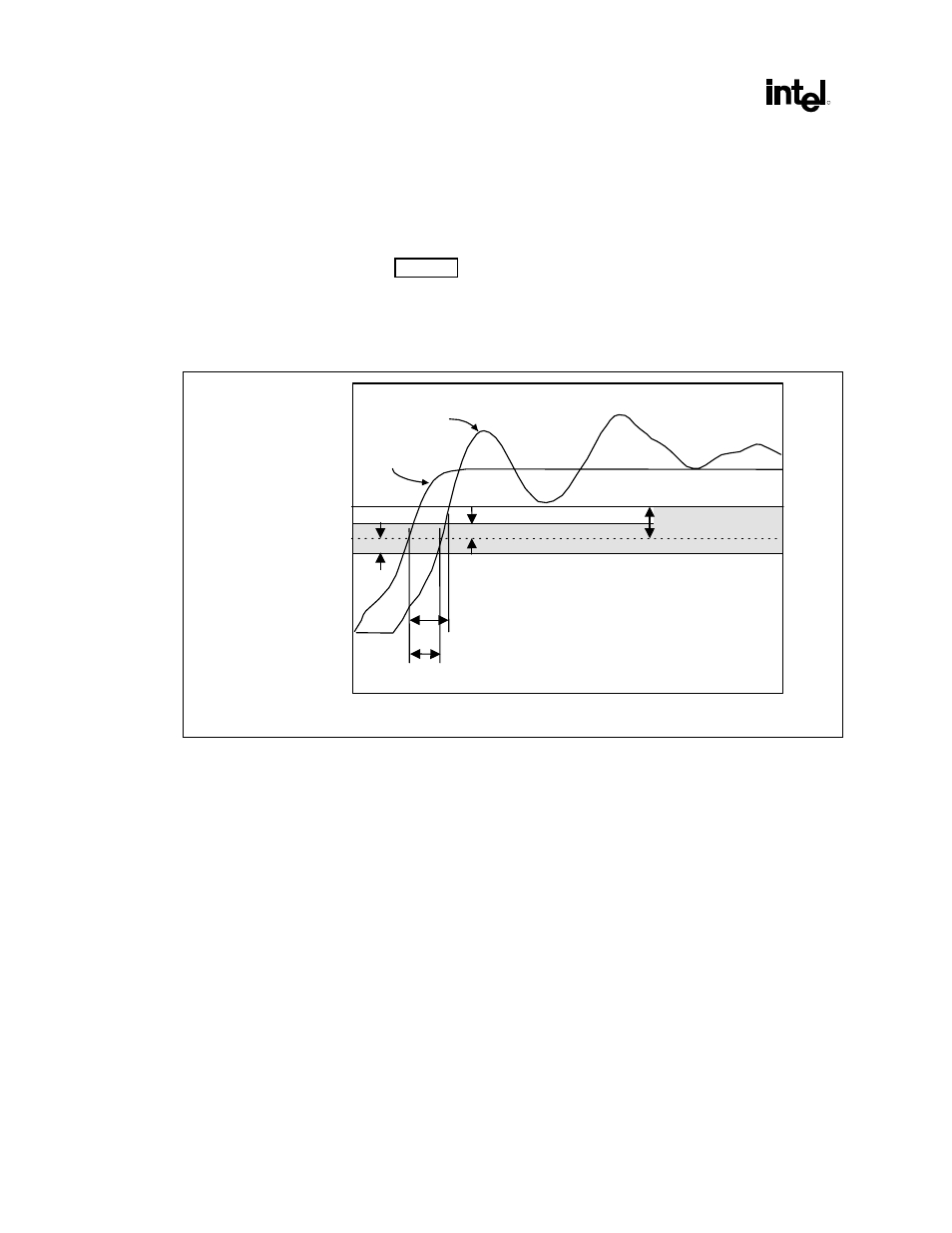

Figure 85. Rising-Edge Flight Time Measurement
rising_edge_flight
Overdrive Region
V
REF
Guardband
Driver pin into
test load
Receiver Pin
Tflight-min
Tflight-max
V
REF
+ 200 mV
V
REF
+ 100 mV
V
REF
V
REF
- 100 mV
∆ V
REF
∆ V
REF
3.6. Conclusion
AGTL+ routing requires a significant amount of effort. Planning ahead and allocating the necessary time
for correctly designing a board layout will give the designer the best chance of avoiding the more
difficult task of debugging inconsistent failures caused by poor signal integrity. Intel recommends
planning a layout schedule that allows time for each of the tasks outlined in this document.
