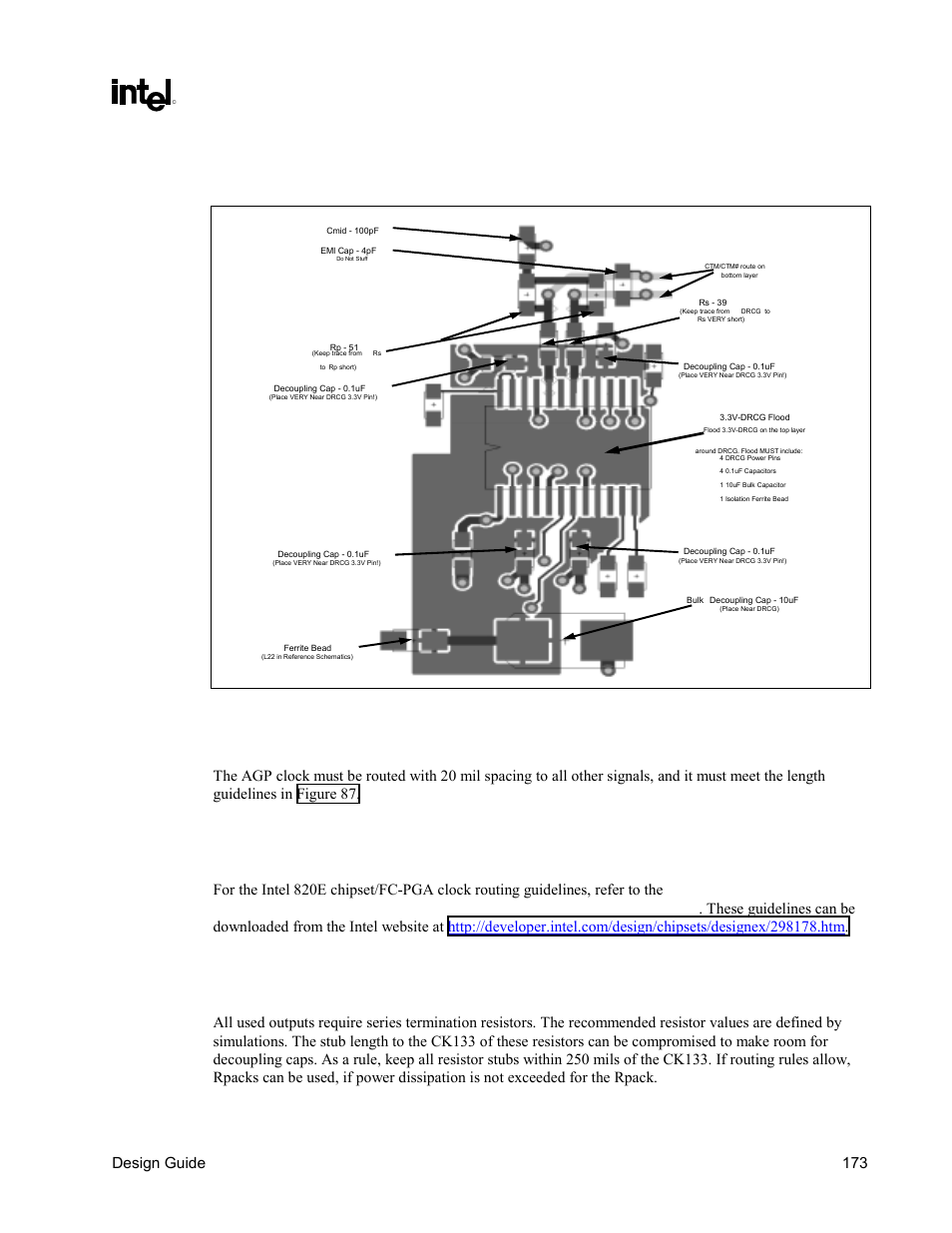

Page 173: Clock routing guidelines for intel, Pga370 designs, Figure 95. drcg layout example, Intel, 820e chipset, Design guide 173, 820 chipset design guide addendum for the intel
Drcg layout example, Agp clock routing guidelines, Clock routing guidelines for intel® pga370 designs | Clock routing guidelines for intel, Pga370 designs, Figure 95. drcg layout example, Intel, 820e chipset, Design guide 173, 820 chipset design guide addendum for the intel | Intel CHIPSET 820E User Manual | Page 173 / 239
