90
System Configuration
You can configure the STP system parameter after enable the STP function. You can
view spanning tree information about the Root Bridge on the left.
1. Select
2. Priority (0~65535): assign path priority number.
3. Max Age (6~40): the maximum path age
4. Hello Time (1~10): the time that controls switch sends out the BPDU packet to check
STP current status.
5. Forward Delay Time (4~30): forward delay time.
6. Select .

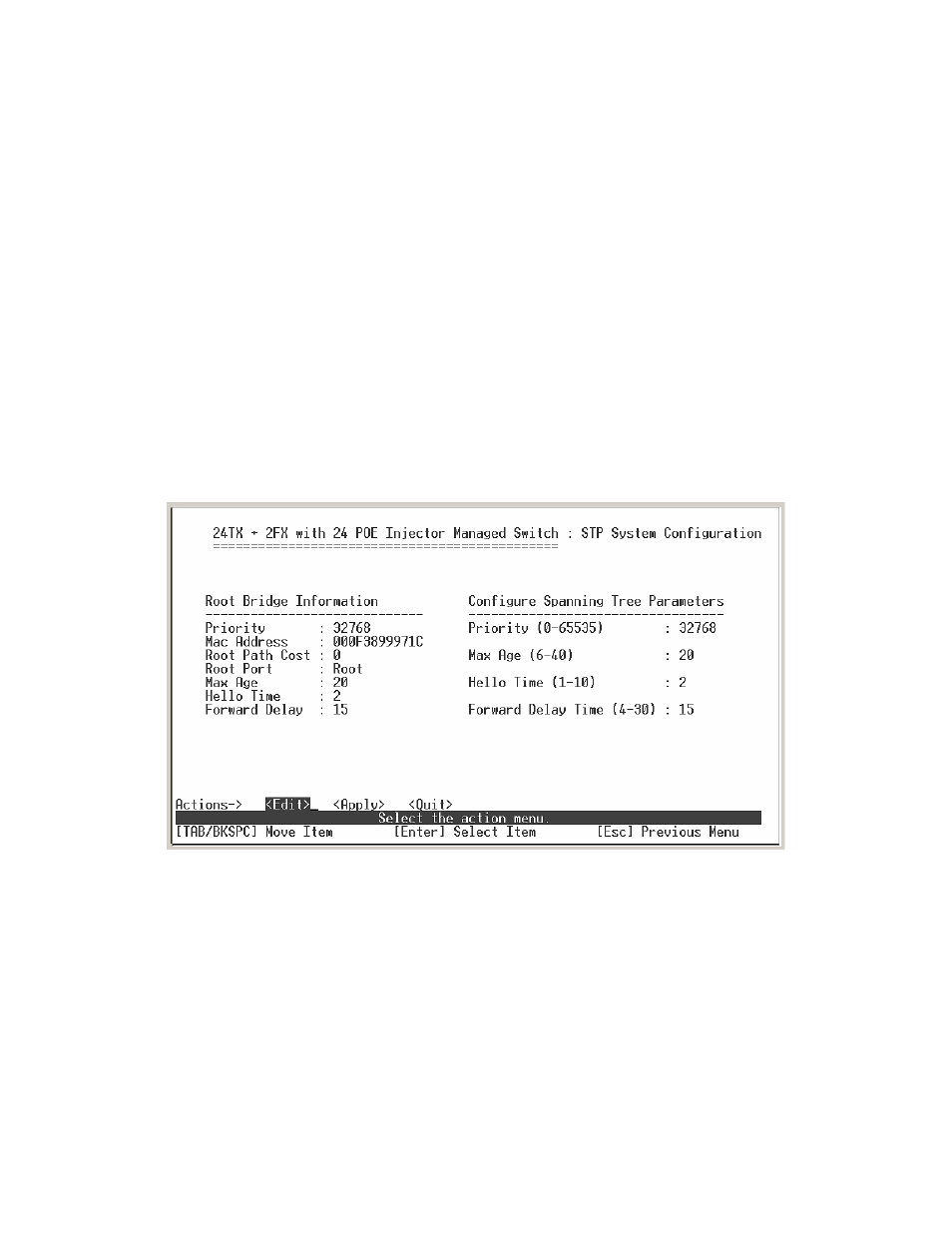

STP System Configuration interface
Per Port Setting
1. Select .
2. Path Cost: specifies the path cost of the port that switch uses to determine which
port are the forwarding ports.
3. Priority: This is mean port priority; you can make it more or less likely to become the
