Ingress Filter: It matches that Ingress Filtering Rule 2 on web. Drop

untagged frame. Press “Space” key to select drop or forward the untagged

frame.

Acceptable Frame type: It matches that Ingress Filtering Rule 1 on web.

Only forward packets with VID matching this port’s configured VID. Press

“Space” key to choose “forward” or “drop” the frame that VID not matching

this port’s configured VID.

3. Select to apply the configuration.

[Note] when the VLAN mode changed that user has to restart the switch for valid

value.

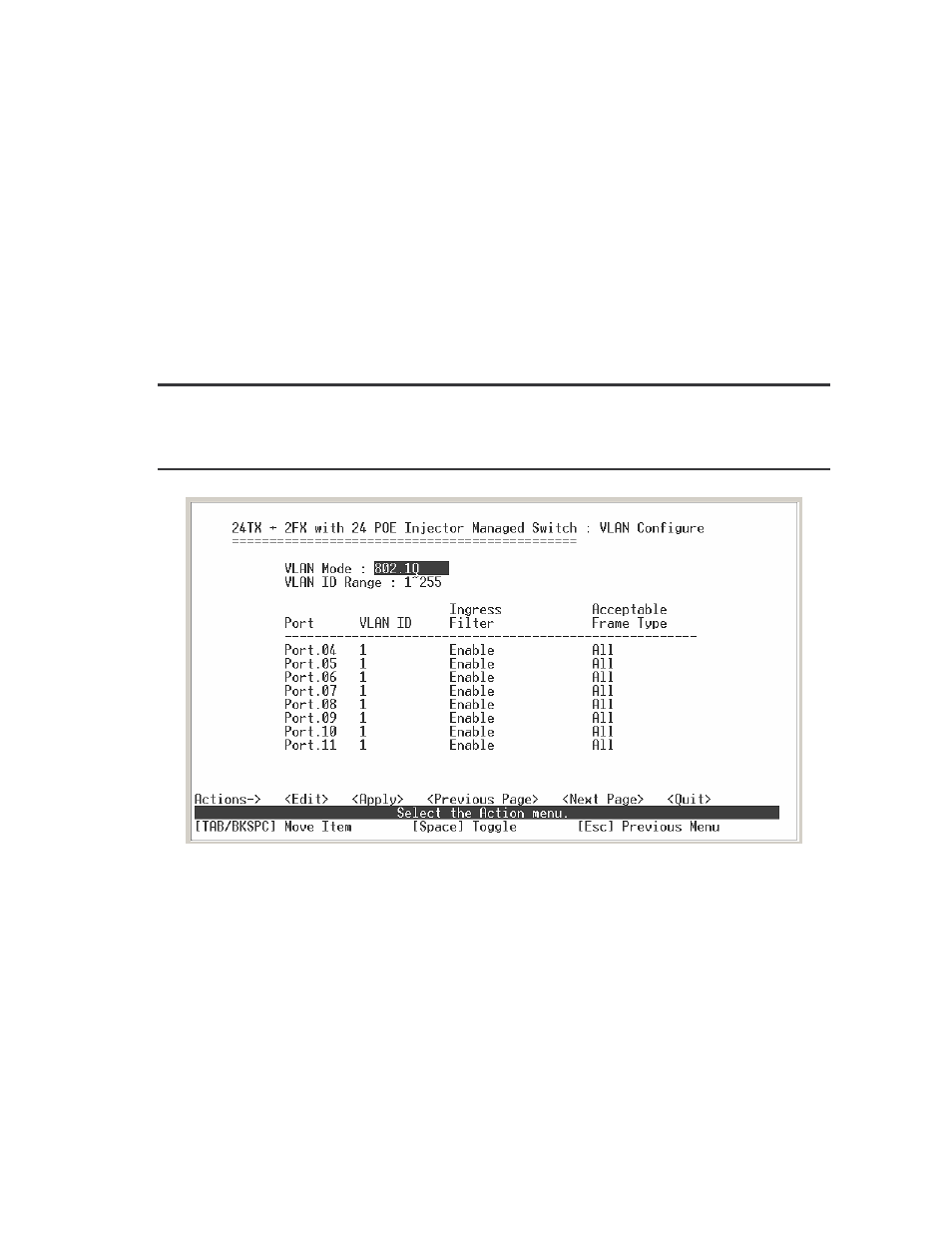

VLAN Configure interface

Create VLAN Group

Create Port-Based VLAN

1. Select .

2. VLAN Name: Type a name for the new VLAN, ex: VLAN01.

3. Group ID: Type the VLAN group ID.
