Milan Technology MIL-SM2401MAF - Manual (Page 158)

150
2. Server Port: set the UDP destination port for authentication requests to the specified
Radius Server.
3. Accounting Port: set the UDP destination port for accounting requests to the
specified Radius Server.
4. Shared Key: set an encryption key for use during authentication sessions with the
specified radius server. This key must match the encryption key used on the Radius
Server.
5. NAS, Identifier: set the identifier for the radius client.
6. Click Apply .

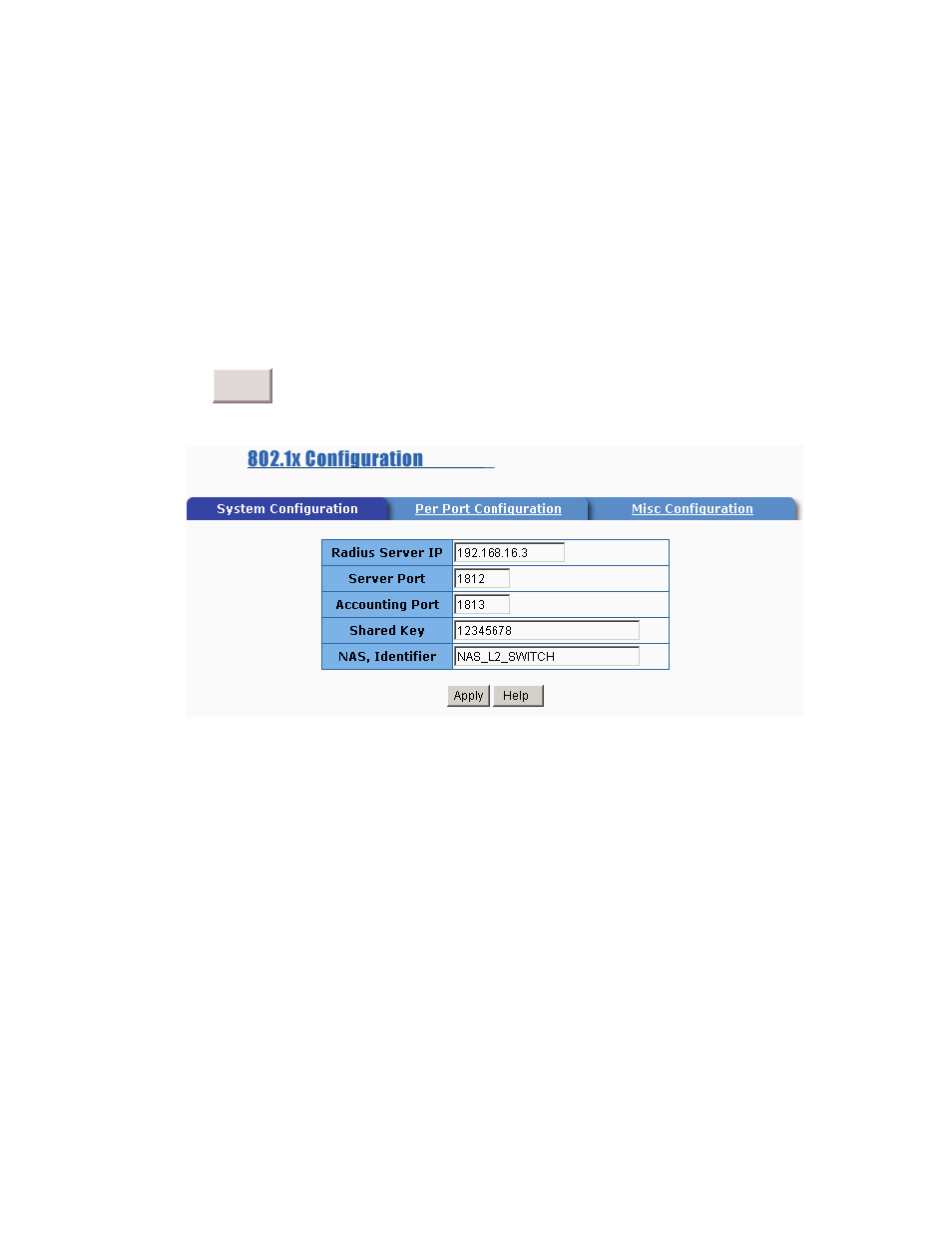

802.1x Configuration – System Configuration interface
Per port Configuration
1. Select the port in Port column.
2. Select the state of port. There are four states:
Reject: the specified port is required to be held in the Unauthorized state.
Accept: the specified port is required to be held in the Authorized state.
Authorized: the specified port is set to the Authorized or Unauthorized state in
accordance with the outcome of an authentication exchange between the
