Milan Technology MIL-SM2401MAF User Manual

Page 82

VLAN Configuration

You can configure VLAN group in VLAN Configuration. There are four functions in VLAN

Configuration mode: VLAN Configuration, Create a VLAN Group, Edit/Delete VLAN

Group and Group Sorted Mode. Follow the below description to configure VLAN.

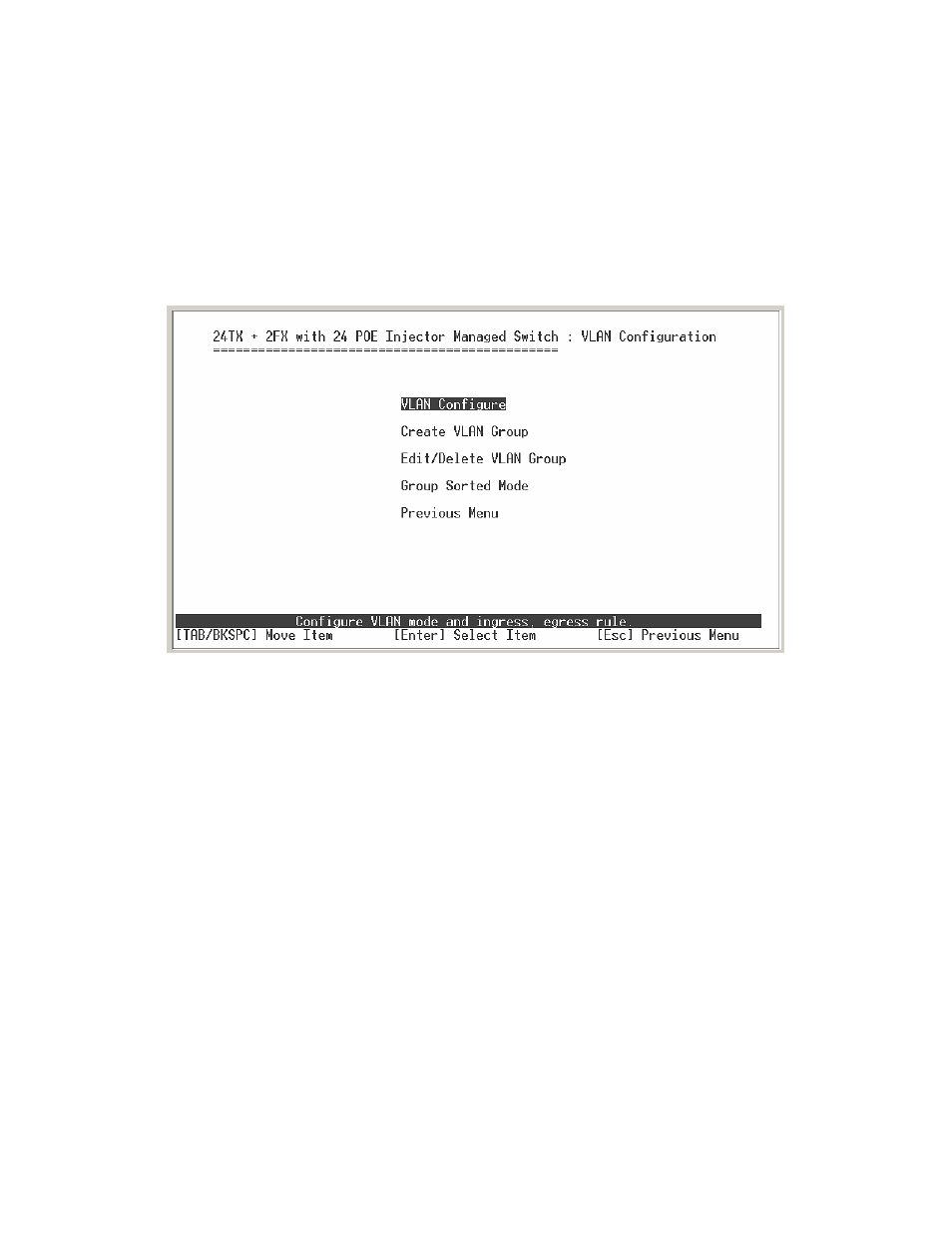

VLAN Configuration Main interface

VLAN Configure

Before starting to configure VLAN, you must select the VLAN mode in VLAN Configure

function. Otherwise, user cannot create any new VLAN.

1. Select the .

2. Select the VLAN mode by using “Tab” key. There are two VLAN modes: PortBase

mode and 802.1Q mode. When select the 802.1Q VLAN mode, you need to

configuration the following settings.

802.1Q VLAN mode: configuration VLAN ID, Ingress Filter, and Acceptable

Frame Type.

VLAN ID Range: Type the PVID. The PVID will only assign to the Ingress

packets, not for all packets.
