115
System Login
1. Launch the Internet Explorer.
2. Type “http://” and the IP address of the 8 10/100TX plus 100FX Exp. Slot managed
POE switch. Press “Enter”.
3. The login screen appears.
4. Key in the user name and password. The default user name and password is “ root ”.

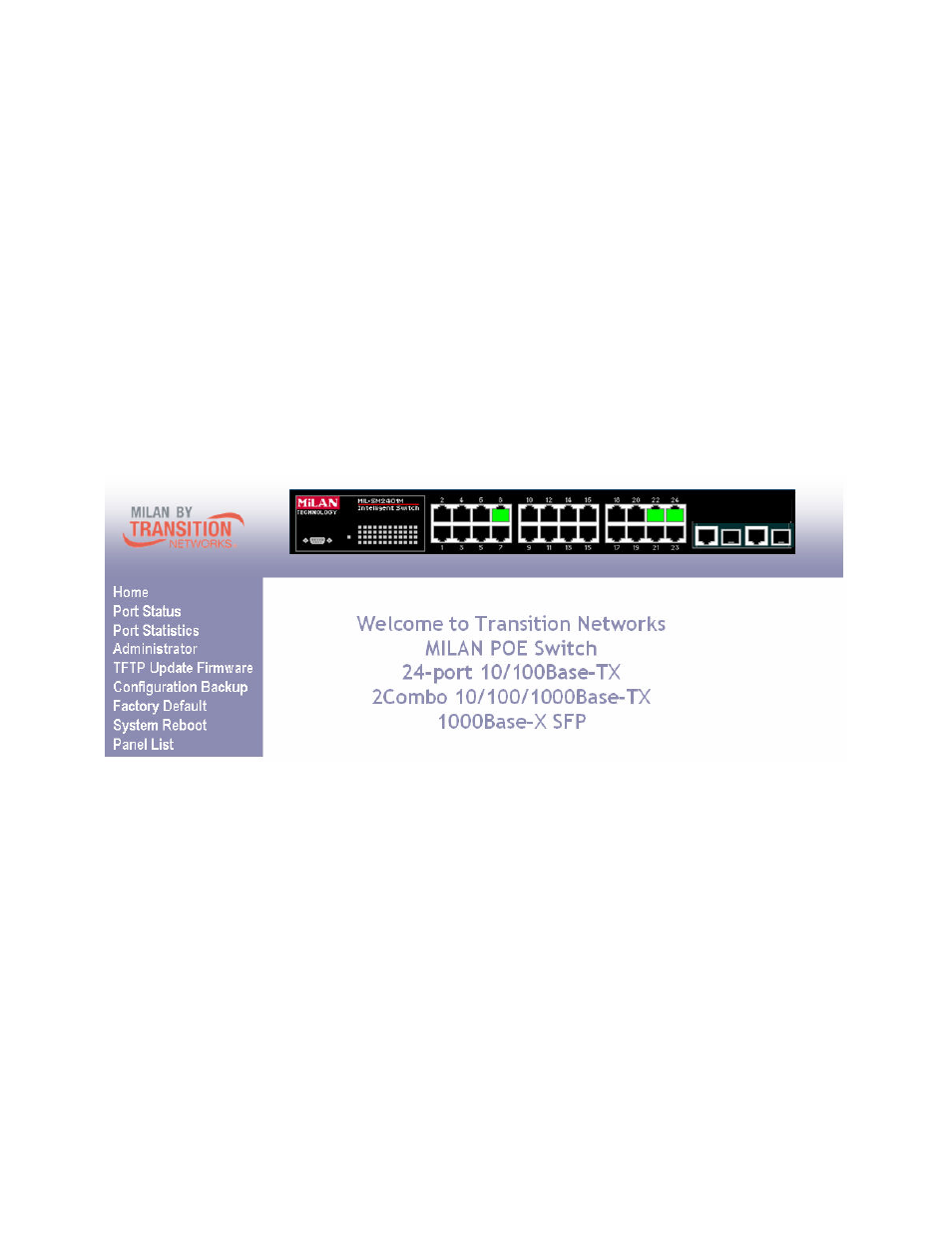

5. Click “Enter” or ”OK”, then the home screen of the Web-based management
appears.
24 10/100TX plus 100FX Exp. Slot managed POE switch Web Management Interface
Port status
In Port status, you can view every port status that depended on user setting and the
negotiation result.
1. Link: Down is “No Link”. UP is “Link”.
2. State: display port statuses “disable” or “enable”. “Unlink” will be treated as “off ”.
3. Negotiation: display the auto negotiation mode: auto/force/Nway-force. “Config”
means the value that user configured. “Actual” means the current value of the port.
4. Speed Duplex: display port connection speed. “Config” means the value that user
