Misc Configuration
Collisions Retry Forever: disable is in half duplex. If happen collision will retry 48
times and then drop frame. Enable is in half duplex. If happen collision will retry
forever.
Hash Algorithm: CRC Hash or Direct Map for MAC address learning algorithm
IFG Compensation: Internal Packet Gap time compensation configure. Select to
“Enable” or “Disable”.
802.1x Protocol: enable or disable 802.1x protocol.
IGMP Query Mode: recognizes different queries from clients or servers to decide
which Query will be the first priority. The modes are:
a. Auto Mode: chooses the switch that has the smallest IP address to be set for the
IGMP Query mode.
b. Enable Mode: enables the switch to be the IGMP Querier.
c. Disable Mode: disables all other switches from being the IGMP Querier.

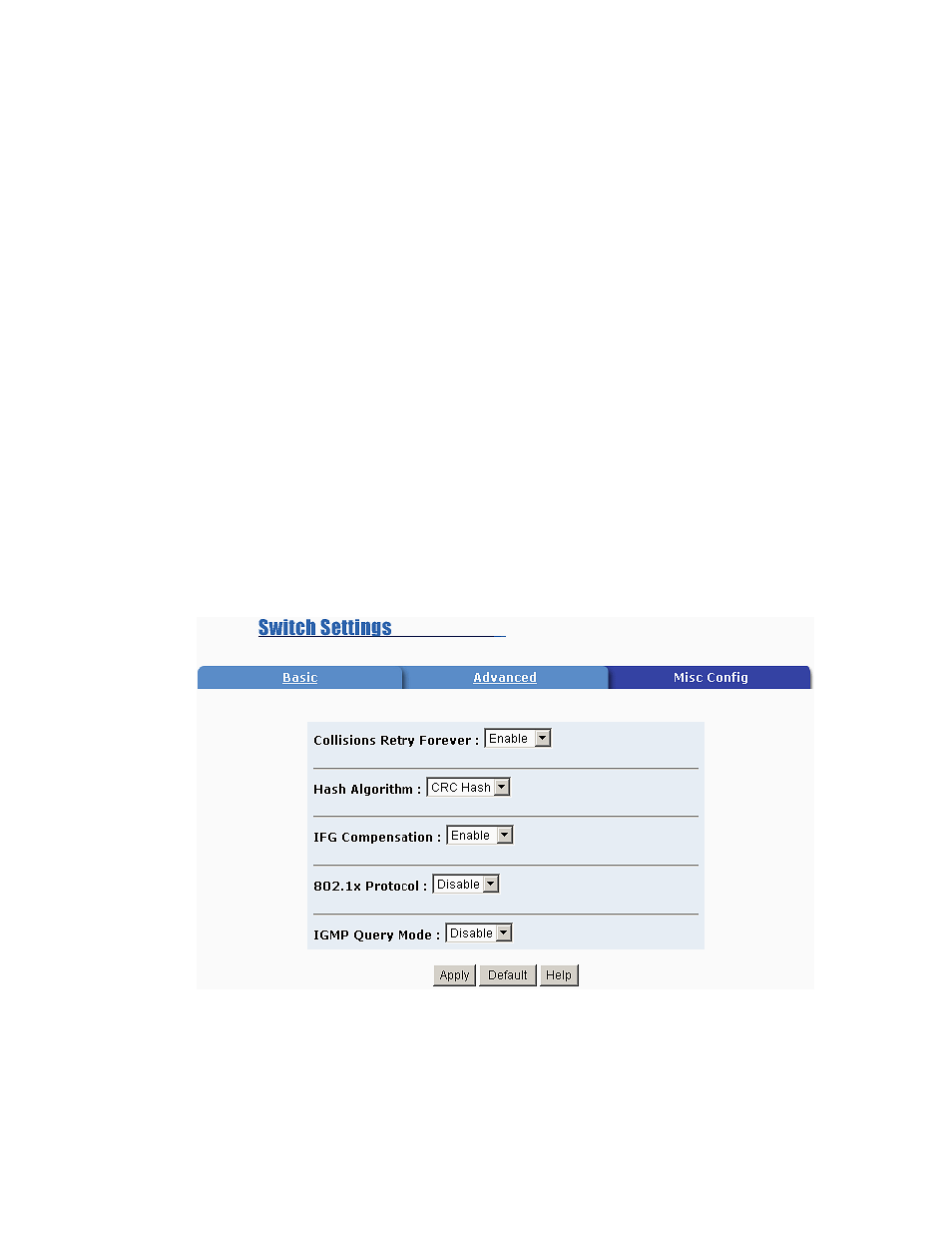

Switch Misc Config setting interface
