Rear Panel
The two fans, two console ports, and the 3-pronged power plugs are located at the rear
panel of the 24 10/100TX plus 2 SFP/Copper managed POE switch as shown in figure.
The switch also provides one DC 48V input for the extra power connection support and
one DC 48V internal power supply for the power redundant function. The two-console
ports use for connecting with UPS device to manage UPS device or connecting with the
power supply device to manage it.

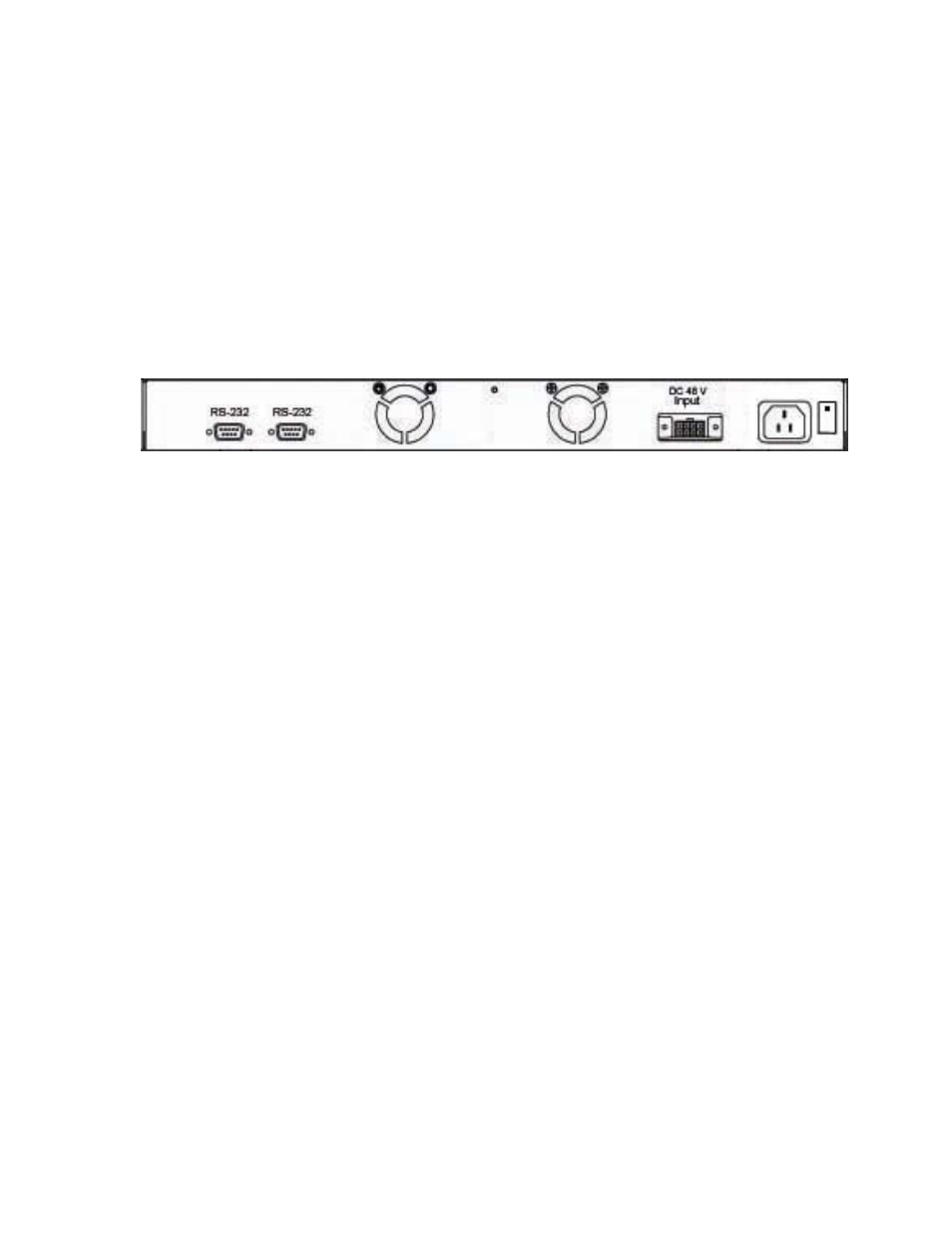

The rear panel of 24 10/100TX plus 2 SFP/Copper managed POE switch
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet nearby. The surface
where you put your switch should be clean, smooth, level and sturdy. Make sure there is
enough clearance around the switch to allow attachment of cables, power cord and allow
air circulation.
Attaching Rubber Feet
A. Make sure mounting surface on the bottom of the switch is grease and dust free.
B. Remove adhesive backing from your rubber feet.
C. Apply the rubber feet to each corner on the bottom of the switch. These footpads can
prevent the switch from shock/vibration.
Rack-mounted Installation
The switch come with a rack-mounted kid and can be mounted in an EIA standard size,
19-inch Rack. The Switch can be placed in a wiring closet with other equipment.
Perform the following steps to rack mount the switch:
A. Position one bracket to align with the holes on one side of the switch and secure it
