7
Hardware Description
This chapter describes the hardware of the 24 10/100TX plus 2 SFP/Copper managed
POE switch and gives a physical and functional overview of the Switch.
Physical dimensions
The 24 10/100TX plus 2 SFP/Copper managed POE switch’s physical dimensions are
440mmx 280mm x 44mm (Lx W x H)
Front Panel
The front panel of the 24 10/100TX plus 2 SFP/Copper managed POE switch consists of
24x 10/100Base-TX RJ-45 ports (Auto MDI/MDIX), 2 auto detect Giga ports, and one
console port. The LED Indicators are also located on the front panel of the Switch.

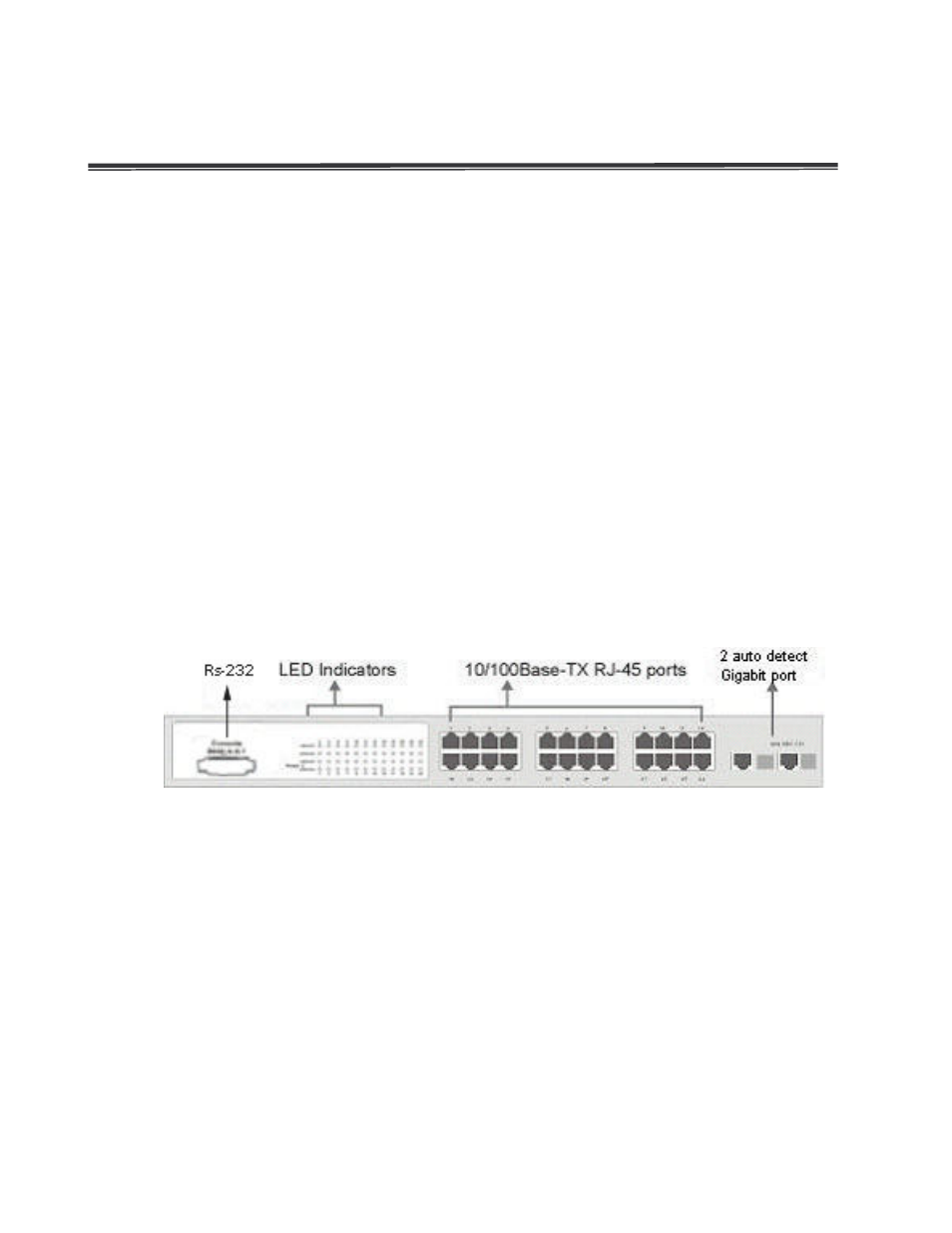

Front panel of 24 10/100TX plus 2 SFP/Copper managed POE switch
RJ-45 Ports (Auto MDI/MDIX): 24x 10/100 N-way auto-sensing for 10Base-T or
100Base-TX connections.
2 Gigabit combo ports: 2 auto detect 10/100/1000Base-TX UTP or 1000Base-X SFP
LED Indicators
The LED indicators provide a real-time indication of systematic operation status. There
are three LED-Indicators (Link/Activity, Full duplex, power forwarding) for each UTP port
and one power LED for the system unit. The following table provides descriptions of the
