84
Static MAC Address
Add the Static MAC Address
You can add static MAC address in switch MAC table.
1. Select key to add the static MAC address.
2. MAC Address: Enter the MAC address of the port that should permanently forward
traffic, regardless of the device network activity.
3. Port No.: press “Space” key to select the port number.
4. Press “ESC” to go back action menu line.
5. Select to apply all configure value.

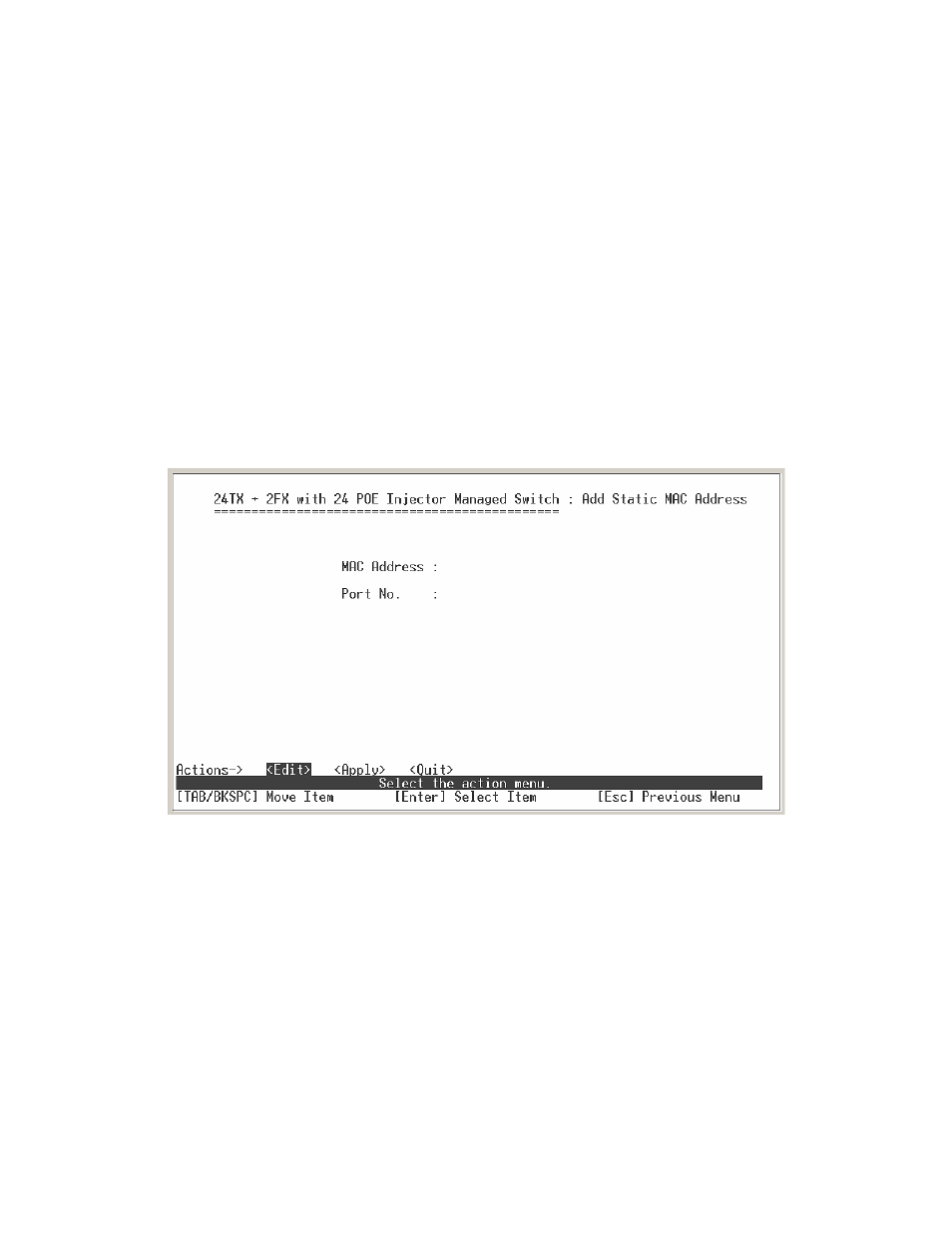

Add Static MAC Address interface
Edit static MAC address
1. Press .
2. Choose the MAC address that you want to modify and then press “Enter”.
3. Press key to modify.
4. Press “ESC” to go back action menu line.
5. Select to apply all configure value.
Delete static MAC address
