134
Port-based VLAN
Packets can go among only members of the same VLAN group. Note all unselected ports
are treated as belonging to another single VLAN. If the port-based VLAN enabled, the
VLAN-tagging is ignored.
In order for an end station to send packets to different VLANs, it itself has to be either
capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge
that is capable of classifying and tagging the packet with different VLAN ID based on not
only default PVID but also other information about the packet, such as the protocol.
1. Click the hyperlink “Configuration” to enter the VLAN configuration interface.

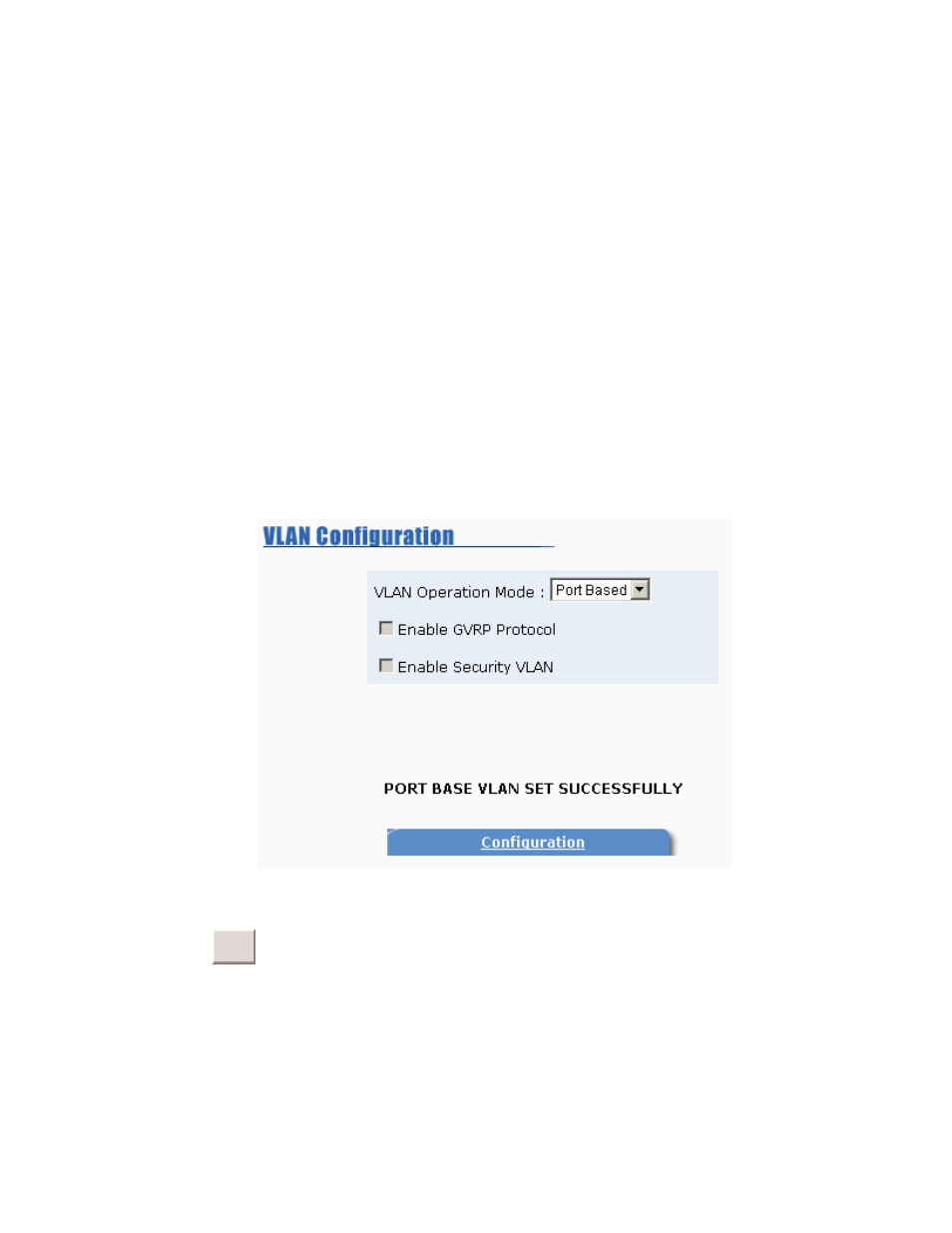

VLAN – PortBase interface
2. Click Add to create a new VLAN group.
