124
Console Port Information
Console is a standard UART interface to communicate with Serial Port. User can use
windows HyperTerminal program to link the switch. Please refer to Console
Management Console login for detail steps.
Console port information shows as follow:
Bits per seconds: 9600
Data bits: 8
Parity: none
Stop Bits: 1
Flow control: none

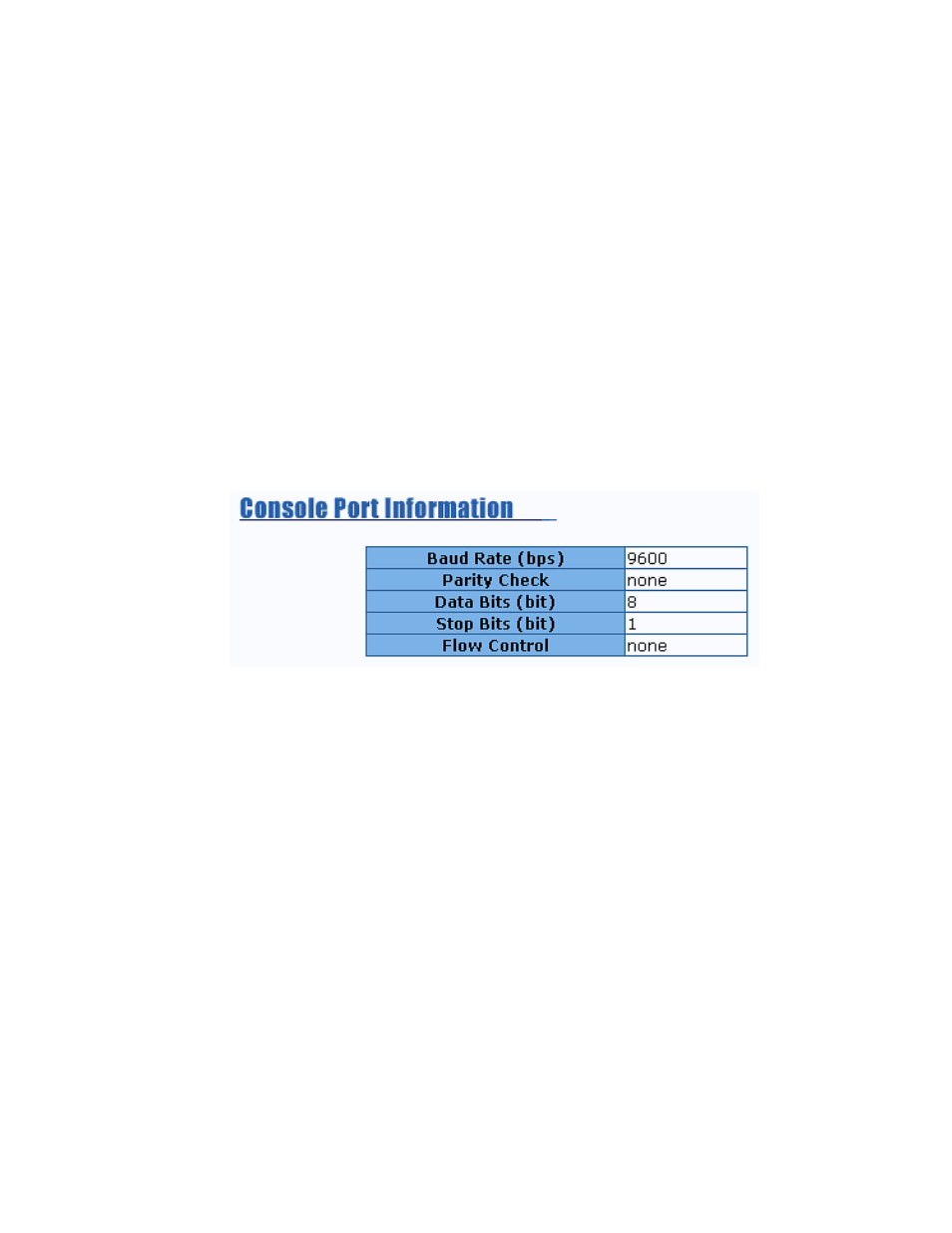

Console Port Information interface
Port Controls
You can change the port status.
1. Select the port by scroll the list in Port column.
2. State: User can disable or enable this port control.
3. Negotiation: User can set auto negotiation mode is Auto, N-way (specify the
speed/duplex on this port and enable auto-negotiation), Force of the port.
4. Speed: set the speed of each port.
5. Duplex: set full-duplex or half-duplex mode of the port.
6. Flows Control: set flow control function is ON or OFF in Full Duplex mode.
7. Back Pressure: set Back Pressure is ON or OFF in Half Duplex mode.
