.8 Additional Function Parameters
2
.8.1 Remote setting function selection

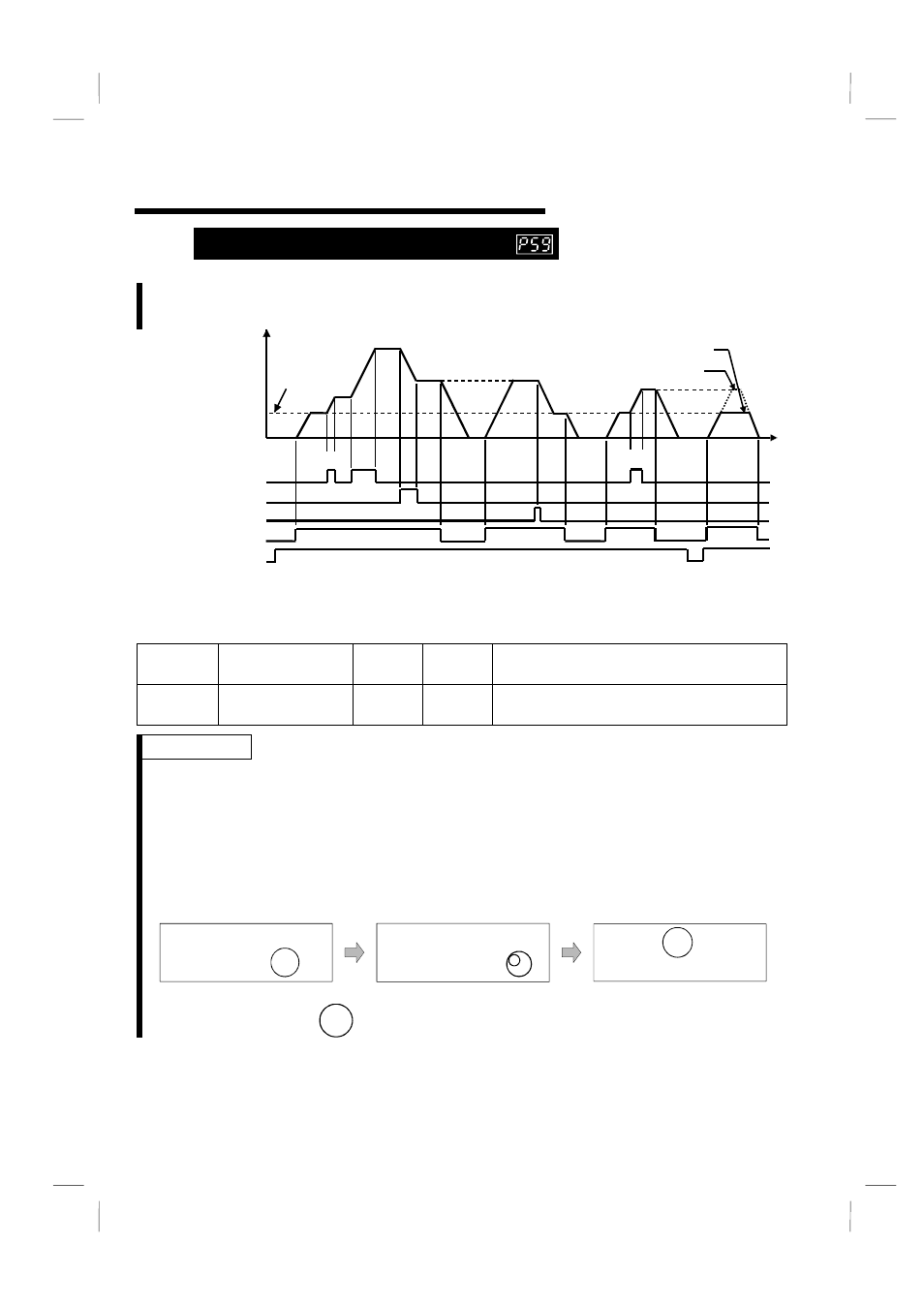

If the operator panel is located away from the control box, you can use contact
signals to perform continuous variable-speed operation, without using analog signals.
Deceleration(RM)
Clear(RL)
Acceleration(RH)
Forward rotation
(STF)
Out
p
u
t
fr
eq
u
enc
y (H
z)
ON ON
Power supply
ON
*
ON
ON
ON
ON
ON
When Pr. 59="2"
When Pr. 59="1"
ON ON
ON
* External operation frequency or PU operation frequency other than at multiple
speeds
Parameter Name
Factory
Setting
Setting
Range
Remarks
59
Remote setting
function selection
0 0, 1, 2 Setting is enabled when Pr. 30 = "1"
REMARKS
•
When the remote function is used, the output frequency of the inverter can be
compensated for as follows:
External operation mode
Frequency set by RH/RM operation plus external
analog frequency command
PU operation mode Frequency set by RH/RM operation plus setting dial
or PU digital preset frequency
Monitor, frequency
setting mode MODE
Press key to
complete setting.*
SET
Turn setting dial to
make correction.
* When you have set "1" in Pr. 53 "frequency setting operation selection", you
need not press the SET key.
