Custom Panel Dimensions
42" Built-In Refrigerator
ZIS42N (non-dispenser)
Standard Trim with 1/4" Panels
• 1/4" Panels: Cut panels to size.
• Custom handles with 1/4" door panels require Trim Kit
ZKH1 (or ZKHSS1 for tubular-stainless steel handles).
Standard Trim with Panels secured to
1/4" thick backing
• Applying a raised panel design to a 1/4" thick backing
(screwed or glued): Cut 1/4" panels to size, fabricate the
raised panel to permit clearances of at least 2" from the
handle side for fingertip clearance of the standard
handle, 1-1/4" from the hinge side to avoid striking
adjacent cabinetry and 5/16" from the top and bottom
edges to allow for the trim flange then install.
• Countertops adjacent to refrigerator installation should
be mitered 45
°
degrees.
Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels
or
Panels secured to 1/4" thick backing
The grille panel frame is factory assembled
for 84" installation height. If installation height
varies, order ZG2 trim kit which provides
optional side trim pieces. Cut grille panel to
sizes shown below.
Installation Height Panel Height
83" 8"
83-1/2" 8-1/2"
84-1/2" 9-1/2"
Important: Maintain 1-1/2" min. gap between
top of doors and bottom of panel frame.
Note: ZKHT1 custom handle kit cannot be used in this
configuration.

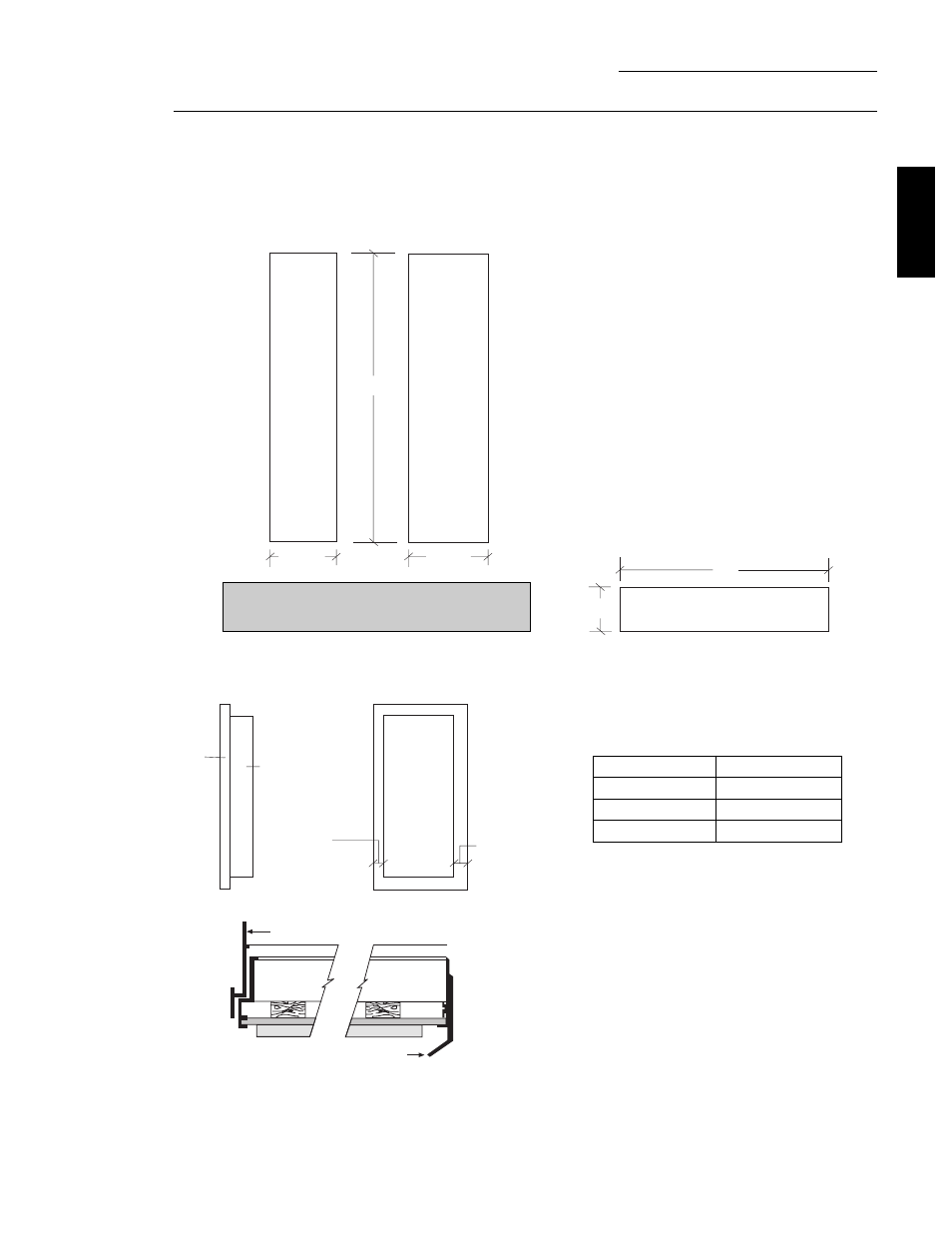

CUSTOM PANEL
DIMENSIONS
1 1/4"
Clearance
hinge side
2" Clearance
handle side
Appearance
Panel
1/4"
Thick
Backing
Raised Panel on 1/4" Thick Backing
Using Standard Handles
Door
Handle
Case Trim
67 7/8"
15 1/4" 25 1/4"
Freezer Panel Fresh Food Panel
41"
9" 1/4" Thick Panel
Custom Grille Panel
Important: Maximum weight for fresh food panels is
50 pounds and 30 pounds for freezer door panels.
