21

ZKH1 Trim Kit (For 1/4" Panels)

Support for Custom Handles

OPTION 1
For non-dispenser
model or dispenser
model using custom
collar trim

Step 1
Remove
handles

Kit
contents

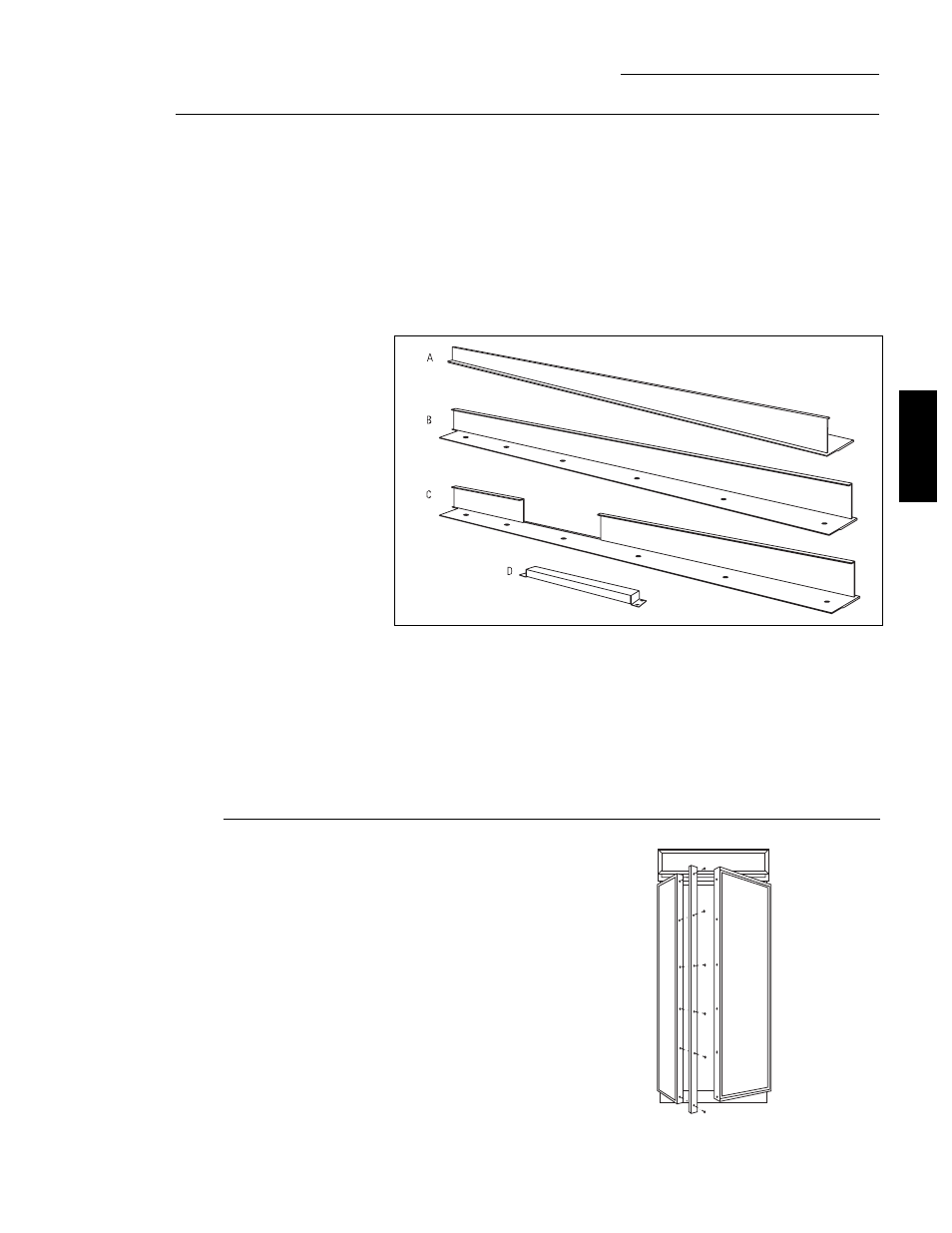

Parts List:
A. Fresh food door

extrusion

B. Freezer door

extrusion for non-
dispenser model and
dispenser model
using custom collar.

(Option 1)

C. Freezer door

extrusion for
dispenser model
using full-width trim.

(Option 2)

D. Handle bracket for

dispenser model using

full-width trim.

(Option 2)

Tools and materials

required:

• #2 Phillips screwdriver

• Drill and appropriate bits

• Custom door panels

• Custom handles

• Safety glasses

These instructions are divided into 2 options:
Option 1—For non-dispenser and dispenser models

using custom collar trim.

Option 2—For dispenser model using the standard

full-width trim.

This kit provides the necessary framework to install
custom handles, of your choice, onto 1/4" thick decora-
tor door panels. (Handles not included.) The door
extrusions and bracket allow custom handles to be
secured to the door structure, rather than the door
panels. This kit contains all the necessary parts for

dispenser and non-dispenser models. Follow the
instructions for Option 1 when applying custom handles
to a non-dispenser model or dispenser model using
custom collar trim. Follow instructions in Option 2 for
a dispenser model using the standard full-width
dispenser trim.

• Open doors to 90

°

. Remove the screws from the

full-length aluminum handles of both doors.

• Retain screws, discard handles.

ZKH1

INSTALLATION

Note:

If a custom collar is to

be used, order ZWCD1 Trim Kit.
