33

ZKHT1 Trim Kit (For 3/4" Panels)

Support for Custom Handles

These instructions are divided into 2 options:
Option 1—For non-dispenser and dispenser models

using custom collar trim.

Option 2—For dispenser model using the standard

full-width trim.

instructions in Option 1 when applying custom handles
to a non-dispenser model or dispenser model using
custom collar trim. Follow the instructions in Option 2
for a dispenser model using the standard full-width
dispenser trim.

Refer to installation instructions for ZKT42 trim kit for
3/4" custom panels Option 1.
• Follow Step No. 1 to remove the standard aluminum

trim.

• Follow Step No. 2 and 3 to attach new 3/4" trim

pieces and install panel support brackets.

1-13/16"

1-13/16"

Back Side

Handle Side

Handle Side

Freezer Panel

Fresh Food Panel

1/4" Max.

Back Side

Note:

Optimal final appearance

depends on careful routing
depth. Do not exceed 1⁄4"
routing depth.

OPTION 1
For non-dispenser
model
or dispenser model
using custom
collar trim

Before
you begin

Kit
contents

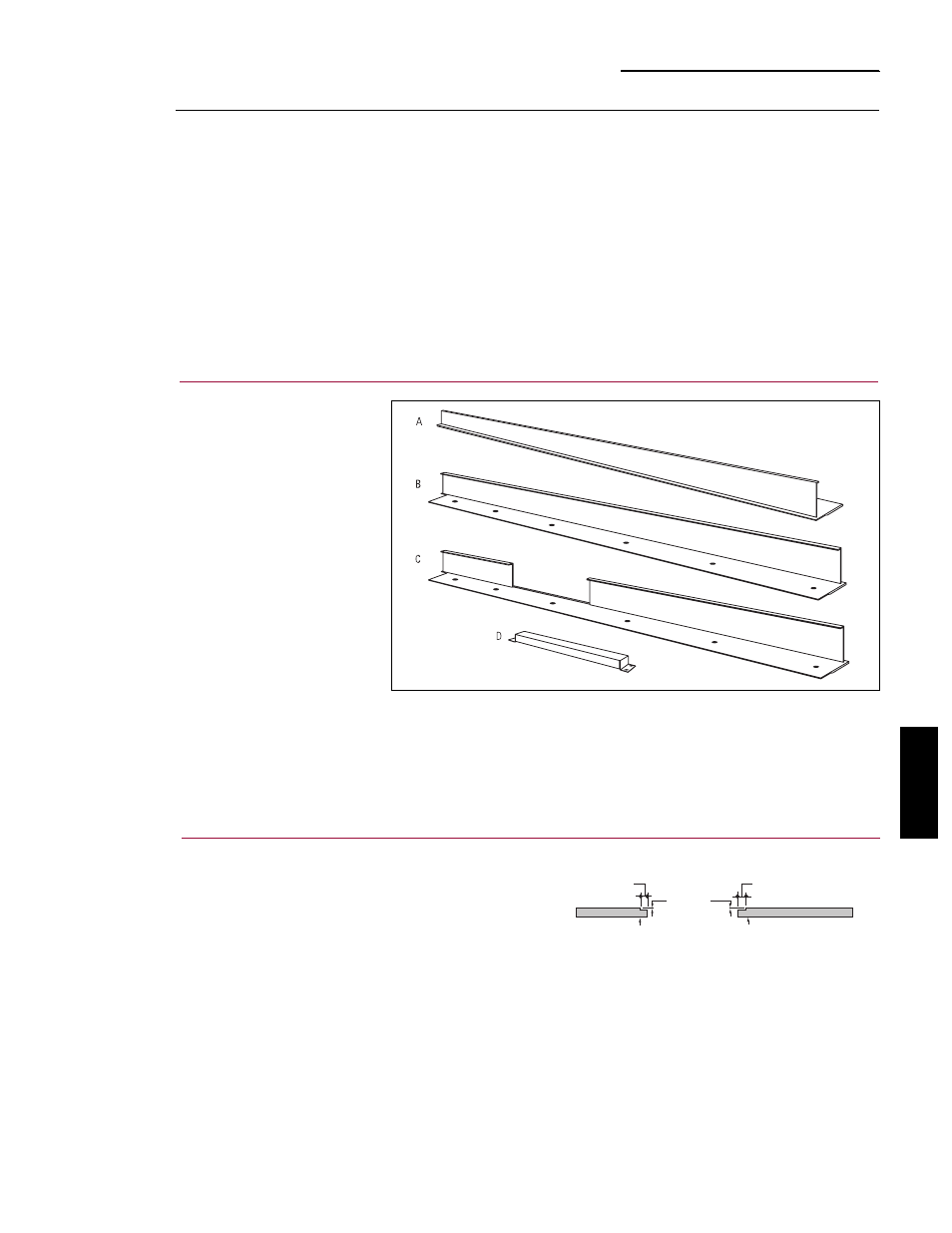

Parts List:
A. Fresh food door

extrusion

B. Freezer door extrusion

for non-dispenser
model and dispenser
model using custom
collar. (Option 1)

C. Freezer door extrusion

for dispenser model
using full-width trim.
(Option 2)

D. Freezer door handle

bracket for dispenser
model using full-width
trim. (Option 2)

This kit provides the necessary framework to install
custom handles of your choice, on 3/4" thick decorator
door panels. (Handles not included.) The door
extrusions and bracket allow custom handles to be
secured to the door structure, rather than the door
panels. This kit contains all the necessary parts for
dispenser and non-dispenser models. Follow the

3/4" custom door panels must be routed to accommodate
these door extrusions. Rout the panels as illustrated, a
maximum of 1/4" deep, and 1-13⁄16" wide, top to bottom
on the handle side.

Tools and materials

required:

• #2 Phillips screwdriver

• Stubby Phillips screwdriver

• Drill and appropriate bits

• Custom panels

• Custom handles

• Safety glasses

Note:

This kit must be used in conjunction with ZKT42 trim kit for

3/4" panel trim.

ZKHT1

INSTALLATION
