Specification Revised 3/08
110167
ZIS480NR – GE Monogram 48" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter

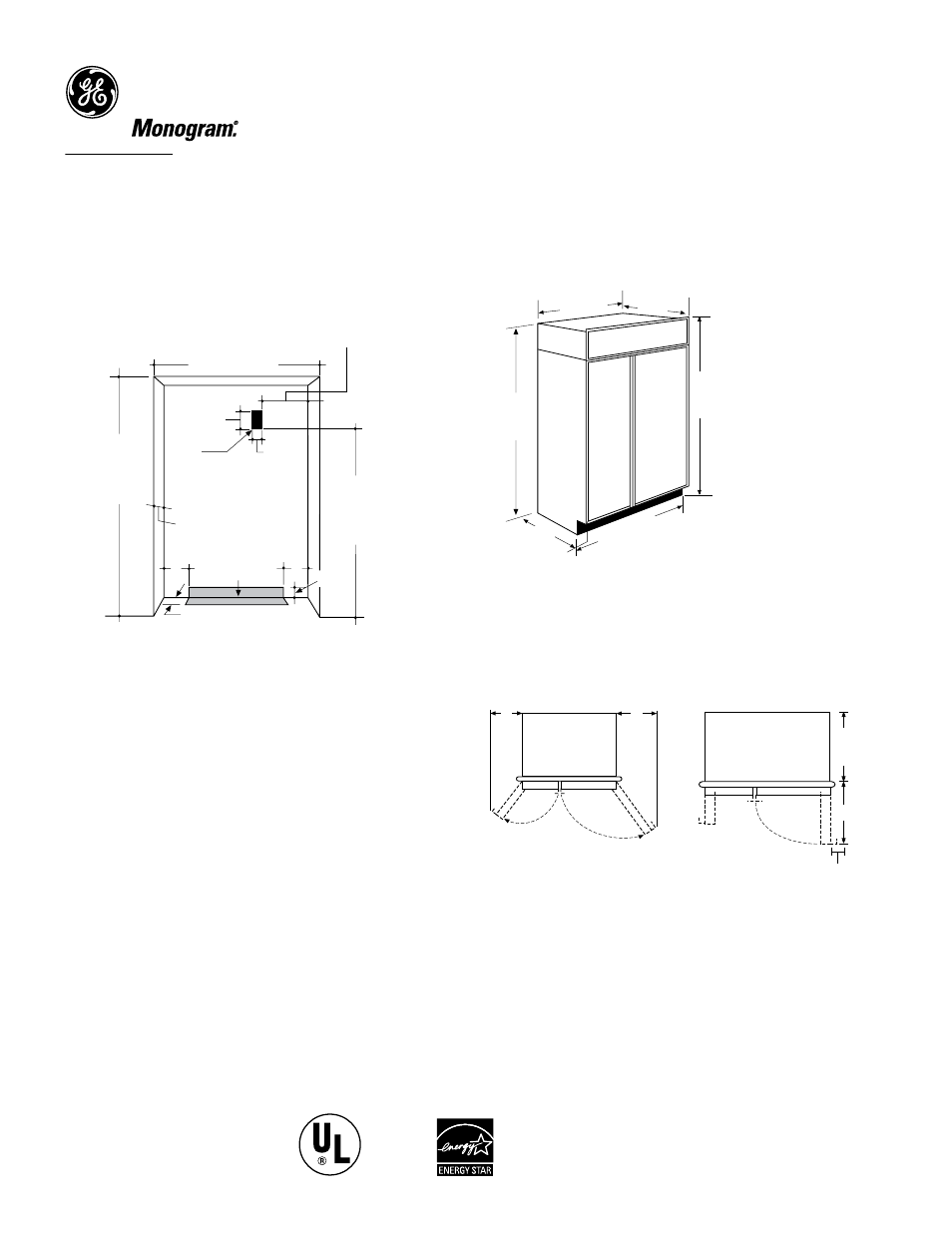

Space is the first consideration when planning the installation.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinetry, depending on your installation.
The cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
All models are equipped with an automatic icemaker. The
water line can enter the opening through the floor or back
wall. Route 1/4" O.D. copper tubing or GE QuickConnect
kit between the cold water line and the water connection
location. The copper tubing should be long enough to extend
to the front of the refrigerator. The installation of an easily
accessible shut-off valve in the water line is required.
The Installation Space
Door Swing Clearances
The installation must allow for clearances to adjacent walls or
cabinets. These refrigerators are equipped with a 2-position
door stop. The factory-set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
• 4" minimum clearance is required when door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
• See door swing illustrations to determine interaction with
adjacent cabinets or countertops.
Installation Information: Before installing, consult
installation instructions packed with product, or online at
Monogram.com, for current dimensional data.
Listed by
Underwriters
Laboratories
As an EnErgy StAr ®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
For answers to your Monogram, ® gE Profile ™ or
gE ® appliance questions, visit our website at
gEAppliances.com or call
gE Answer Center ® service, 800.626.2000.
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
84-1/2" max. height
The top case trim
at the front is 1/2"
higher and will
overlap upper
cabinetry or soffit.
Use leveling legs
and wheels for a
maximum 1" height
adjustment.
*84" From
Floor to
Top Frame
48"
Frame to Frame
47"
Case Width
*83-1/2"
at
Rear
25-3/4"
27-3/4"
including
handle
23-7/8"
Behind
Frame
90 ° Door Swing
4" Min.
to Wall
28-5/8"
20"
130 ° Door Swing
15"
*Finished Width
6"
5"
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
75" From Floor
to Bottom
of Electrical
Area
24"
5" 5"
3-1/2"
Water Supply
3-1/2"
36" Models 12"
42" Models 18"
48" Models 20"
