• Again, with both doors closed, check the location of

the centerlines to be sure they are parallel to the edge
of the door, and level with opposite door.

• Drill 1/16" pilot hole through the panel until it starts into

the aluminum extrusion. This will mark the matching
location for drilling the clearance hole when assem-
bling the handle, panel and extrusion.

Note:

Handle must be located

3/4" to 1-1/2" from edge of
extrusion.

ZKH1 Trim Kit (For 1/4" Panels)

Support for Custom Handles

Step 2

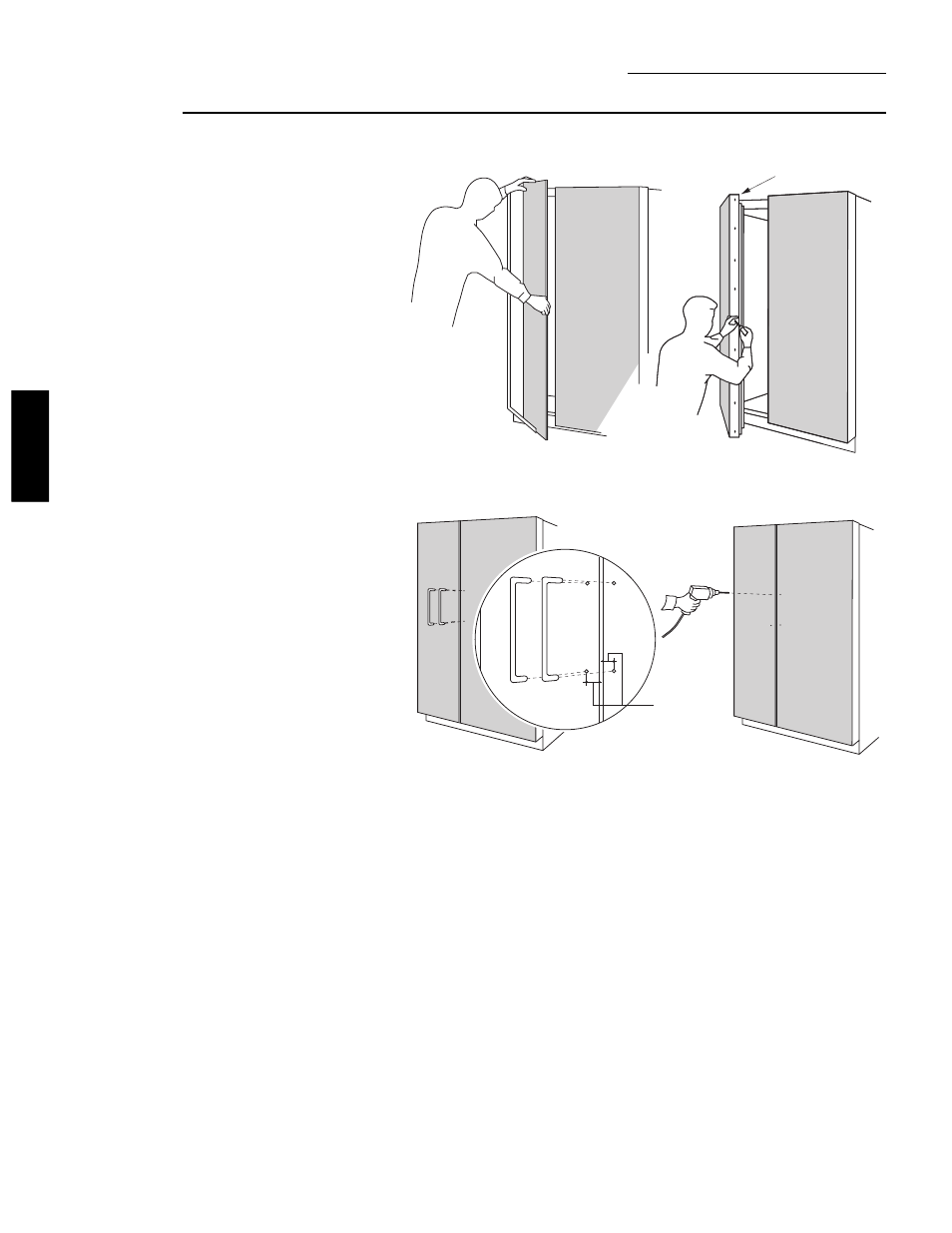

Locate position
of handles

Option 1 Installation

• Slide custom panels into fresh food and freezer door

frames.

• Temporarily secure the new door extrusions to the

doors. Use at least 2 screws on each door.

• The handles must be located 3/4" to 1-1/2" from the edge

of the extrusion.

• Determine the desired location of the custom handles

and carefully mark centerlines of the screw holes.

22

3/4" Min.
1-1/2" Max.

Door Extrusion

ZKH1
