Installation

42" Built-In Refrigerator

18

PRODUCT

INSTALLATION

Step 4
Roll Refrigerator
Into Opening

Step 5
Level
Refrigerator

• Gently push refrigerator into opening with hands

against front corners. The cardboard protective pad
should be beneath the refrigerator.

• Roll refrigerator into the opening until it is flush with

adjacent cabinets.

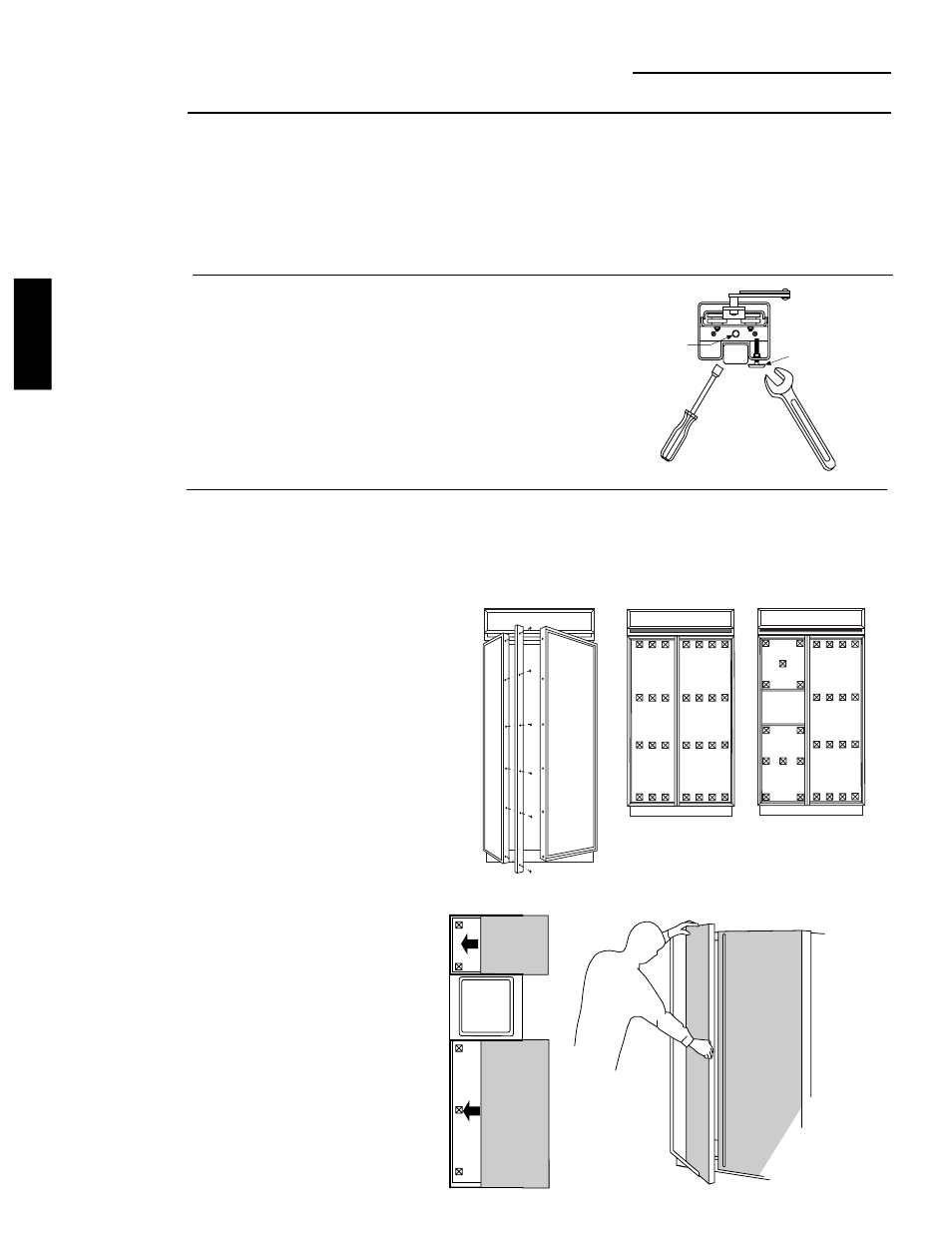

All models have 4-point leveling. The front is supported
by leveling legs, the rear is supported by wheels.
• To level the back of the refrigerator, turn the 7/16" hex

nut located above the front wheels. Turn to raise or
lower the refrigerator.

• For front leveling, use a 1-1/2" open-end wrench.
• Adjust carefully, the refrigerator should be level and

plumb with cabinetry, and should align with toekick
height.

Hex Nut Adjusts

Rear Wheels

Leveling Leg

If you are using 3/4" thick custom panels, SKIP THIS
STEP. See Custom Panel Dimensions pages for panel
sizes with ZKT42 trim kit and other kits. Refer to trim kit
installation instructions in this booklet.

If you are using the custom collar
dispenser trim, order ZWCD1 trim kit.

To install 1/4" door panels:
• Open door to 90

°

stop. Remove the

Phillips head screws from the
aluminum trim door handles.
Retain all screws.

• Attach 2" x 2" adhesive backed foam pads

to the door. These fillers are shipped with
literature package in snack pan.

• Slide panel into the door

trim.

• Replace door handles

and secure with original
screws.

• Again, check to be sure

unit is level and that
panels align with
cabinetry. Doors will not
close properly if unit is
not level.

• Check for noises caused

by incomplete alignment
(rubbing of panels, trim
or screws).

Step 6
Install
1/4" Door
Panels
