31

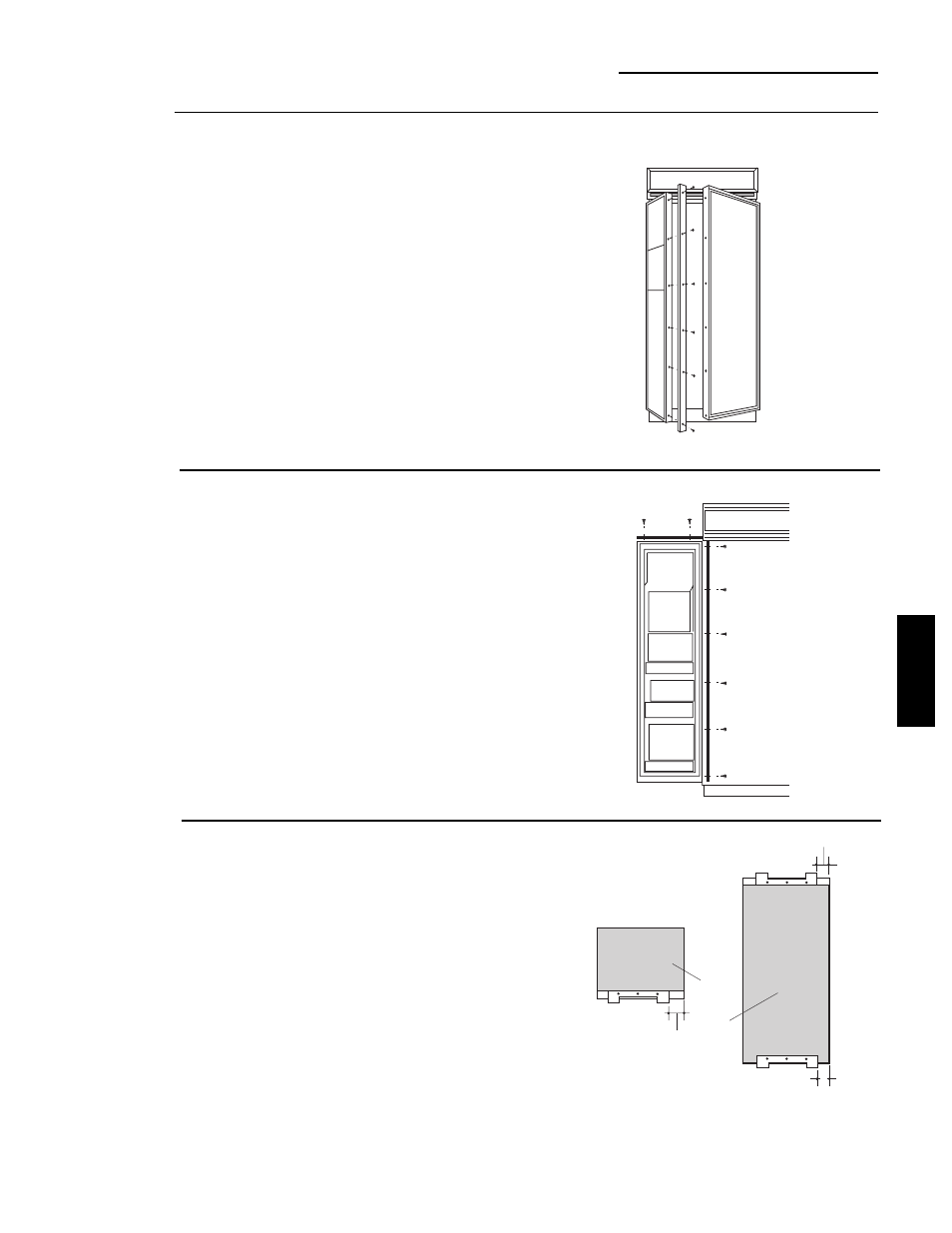

ZKT42 Trim Kit

3/4" Custom Panels

Dimension B
ZKT42–6-3/4"

Dimension A

ZKT42–4-3/8"

Dimension C
ZKT42–4-3/8"

• Position and mark the location for the support

brackets on the back side of the panels. Align all
brackets flush with the end of the panels, with tabs
protruding over the edge.

• On the bottom of the upper panel, measure

dimension A from the hinge side.

• On the bottom of the lower panel, measure

dimension B from the hinge side.

• On the top of the lower panel, measure dimension C

from the hinge side.

• Secure all brackets with #4 screws provided.

• Attach the new 3/4" trim pieces at the top and hinge

side using original screws.

Step 3
Install panel
support brackets

Step 2
Install
3/4" trim

OPTION 2
For dispenser
model using
full-width
trim

Step 1
Remove
handles & trim

• Open freezer door to 90

°

.

• Remove the Phillips head screws from the full-length

handles.

• Open door fully to stop.
• Remove screws from the aluminum trim, top, bottom

and hinge side.

• Remove the trim above and below the dispenser.
• Retain screws and full-length handles. Discard

original trim.

Back Side
of Freezer
Panels

Hinge
Side

Upper
Panel

Lower
Panel

A

C

B

ZKT42

INSTALLATION
