12

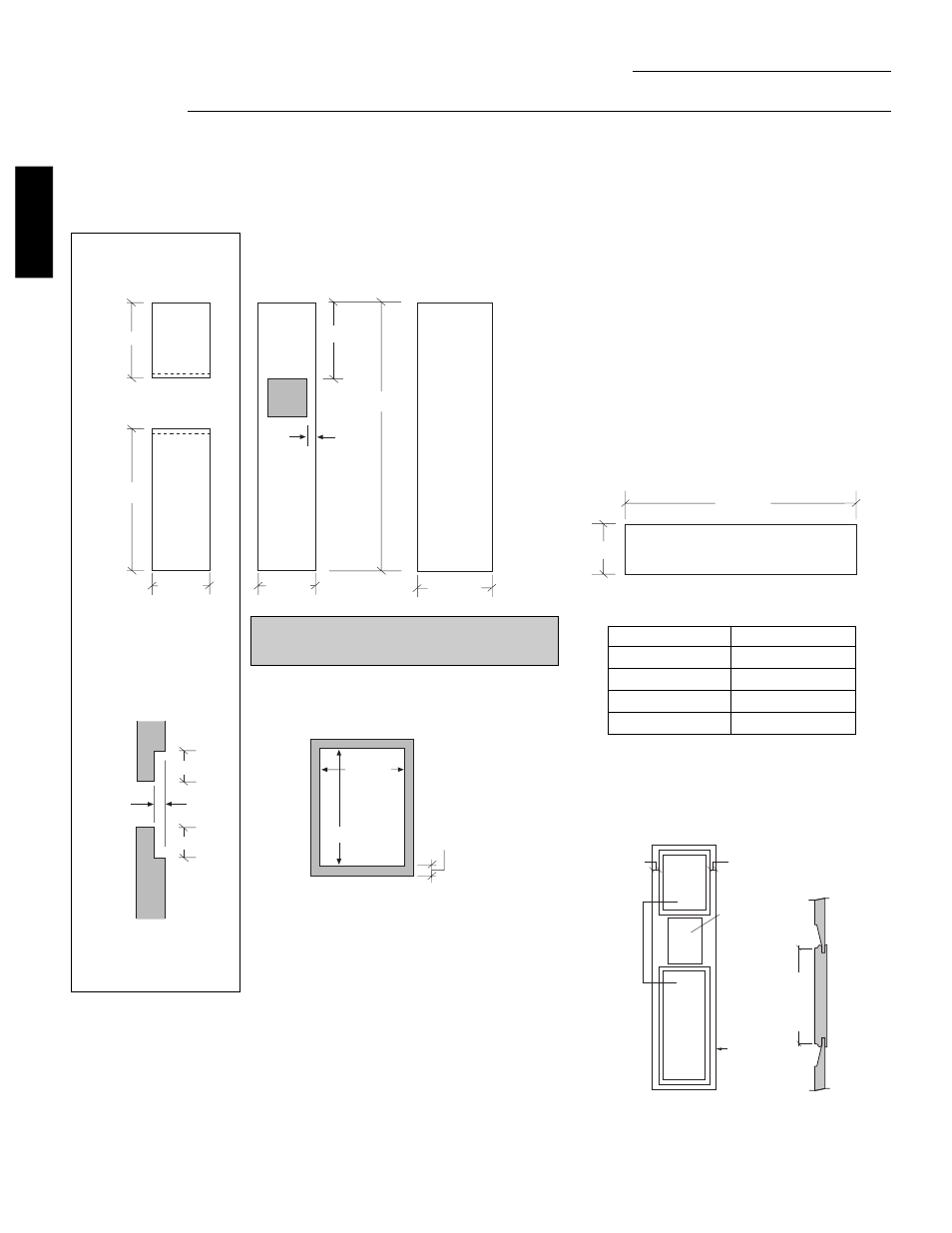

Custom Panel Dimensions

42" Built-In Refrigerator

ZISW42D (white dispenser)
ZISB42D (black dispenser)

• The ZKT42 trim kit provides for the installation of 3/4"

custom door and grille panels, using the standard full-
length handle. Cut panels to size and install.

• For standard dispenser trim: Cut panels to size, rout the

bottom of the upper freezer panel and the top of the
lower freezer panel to allow placement of support
brackets and install (see detail A).

• For custom dispenser trim ZWCD1 kit must be used: Cut

panels to size, refer to detail B for dispenser cutout
routing instructions and install. When a raised panel
design is used, a custom middle rail is required. A
14-1/2" wide middle rail must be used because the
custom collar trim must be located within the raised
portion of the panel. This area must be 3/4" thick. See
detail C for raised panel design requirements.

Custom Door Panel Dimensions

Using Trim Kit ZKT42

3/4" thick panel with standard handle

and/or ZWCD1 custom collar trim

Installation Height

Dimension A

83"

8-1/4"

83-1/2"

8-3/4"

84"

9-1/4"

84-1/2"

9-3/4"

Important: Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.

Grille Panel height can vary to fill installation
height.

Detail A

Upper

Freezer

Panel

Lower

Freezer

Panel

Panel

Face

1"

1"

3/32"

CUSTOM PANEL

DIMENSIONS

9 7/16"

12 5/16"

7/8"
Wide
Rout

The Cutout is 9 7/16" wide
by 12 5/16" high. 3/4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1/4" deep. 7/8" wide
(shaded area).

Detail B Custom

Dispenser Cutout

16 11/16"

37"

2 5/16"

67 15/16"

15 1/16"

25 1/16"

17 11/16"

Fresh Food

Panel

Freezer Panel

Standard

Dispenser

Freezer Panel

Custom

Dispenser

15-1/16"

Custom Grille Panel

41 1/2"

A

Over 1/4" Thick (3/4" max) Panel

Hole is Cut
After Door
Fabrication

14 1/2"

Wide

Middle

Rail

Detail C

Raised Panel Design

Handle
Side

A

A

Section AA

*Custom Stiles and

Middle Rail Required

*3" Stiles
Left Side

*2-3/16" Stiles
Right Side

Important: Maximum weight for fresh food panels is
50 pounds and 30 pounds for freezer door panels.
