6
Custom Panel Dimensions
42" Built-In Refrigerator
ZIS42N
(Non-dispenser)
Design Information
Cutout dimensions, clearances and side panel sizes are
determined by the many installation options available.
Side panels must be used whenever the sides of the
refrigerator will be exposed. Side panels are not required
when refrigerator is installed into an enclosure or
between pantry and oven cabinets. IMPORTANT–Side
panels, 1/2" minimum thickness, are required when using
FRAMELESS CABINETS.
• Field installed custom panels, Lexan

or stainless steel
panels are required. The door panels and grille panel
sizes vary to accommodate the kit being used.
• A custom toekick can be installed to match or comple-
ment the surrounding cabinetry. Use the supplied
toekick as a template to cut out notches around hinges
and water lines.
Optional Kits:
• ZWBP42: Black Lexan

Panel Kit (no trim kit required).
• ZWWP42: White Lexan

Panel Kit (no trim kit required).
• ZWSP42: Stainless Steel Panel Kit (no trim kit required).
• ZKH1: For installation of a custom handle on 1/4" panels.
• ZKT42: For installation of 3/4" custom panels.
• ZKHT1: For installation of a custom handle on 3/4"
panels. (This kit must be used in combination with
ZKT42.)
• ZKHSS1: Tubular Stainless Steel handles on 1/4" panels.
• ZKHTSS1: Tubular Stainless Steel handles on 3/4"
panels. (This kit must be used in combination with
ZKT42.)
• ZG2: 1/4" grille panel frame side pieces for 83", 83-1/2"
and 84-1/2" installation heights. Factory set height is 84".
• ZWT1: White toekick (supplied toekick is black).
Includes a white toekick to fit 36", 42", 48" side-by-side
models and 36" bottom mount and single door models.
Additional Specifications
• A 115 volt 60 Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or
circuit breaker is recommended. Install a properly
grounded 3-prong electrical receptacle recessed into
the back wall. Electrical must be located on rear wall.
• Water line can enter opening through the floor or back
wall. The water line should be 1/4" O.D. copper tubing
between the cold water line and water connection
location, long enough to extend to the front of the
refrigerator. Installation of an easily accessible shut off
valve in the water line is recommended.
Clearances
If the refrigerator is to be installed in a corner:
• A 4" min. clearance between the case trim and
adjacent wall on both sides of the refrigerator will
assure a 90
°
door opening and access to all drawers. A
10" clearance is required on both sides for removal
of pans.
*42" Min. for a flush installation into an enclosure.
*41-1/2" Min. for a semi-flush installation into an enclosure.
Note: Additional cutout width may be required when side panels are
used. Add side panel thickness to the finished cutout to calculate
rough-in width. See installation examples on page 4.

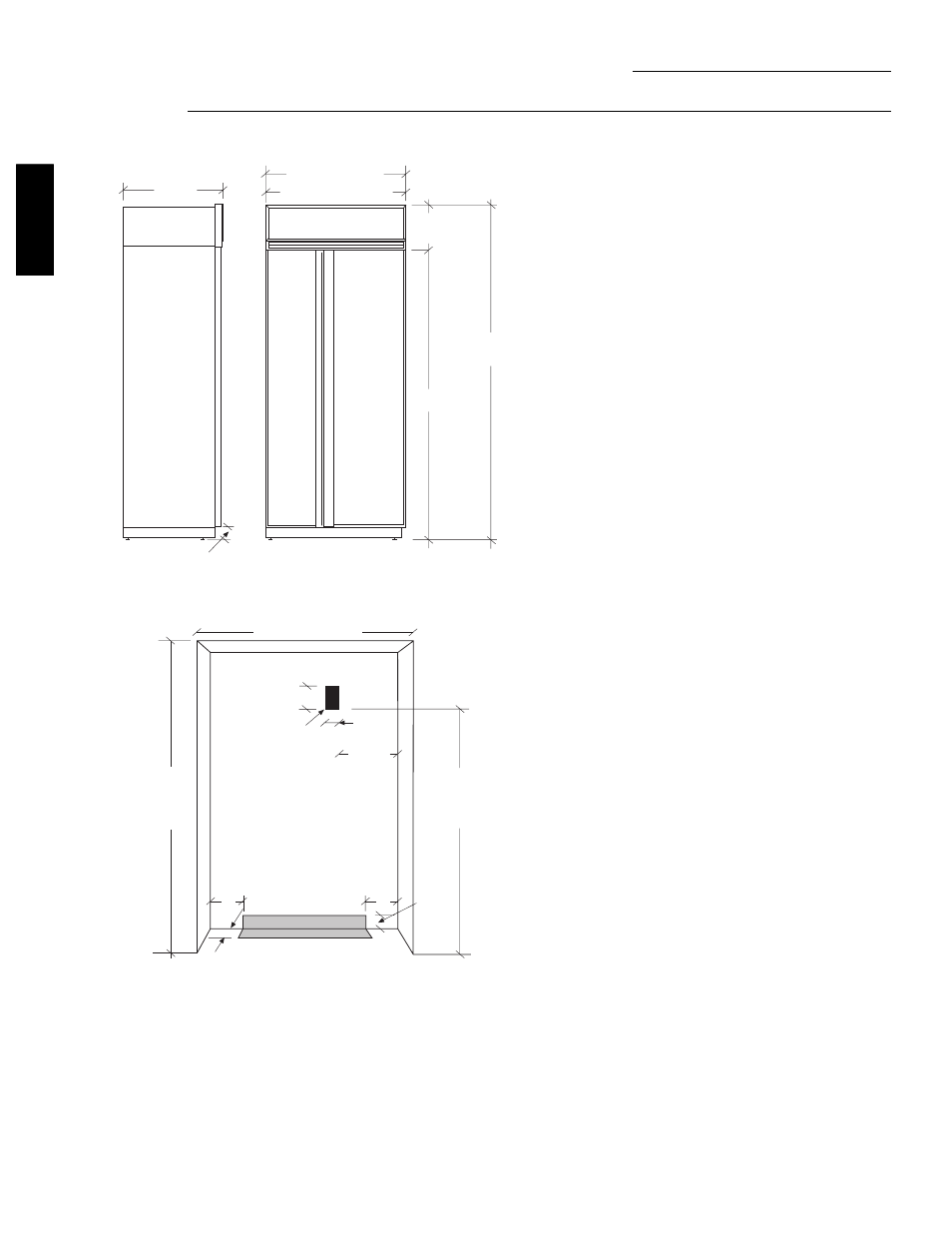

CUSTOM PANEL
DIMENSIONS
Side View
(not to scale)
24 3/4"
4"
Front View
(not to scale)
42" Overall Width
41" Case Width
12 1/4" max
10-3/4" min
84 1/2" max
83" min
72 1/4"
*Finished Width
7"
Wall View
(not to Scale)
Locate Grounded
Electrical outlet
Within Solid
Area Above 84 1/2" max
83-1/4" min
Finished
Opening
74" From
Floor to
Bottom of
Electrical Area
5"
18 3/8"
5" 3 1/2" 5"
3 1/2"
Locate Water
Supply Within
the Shaded
Area Below
