46

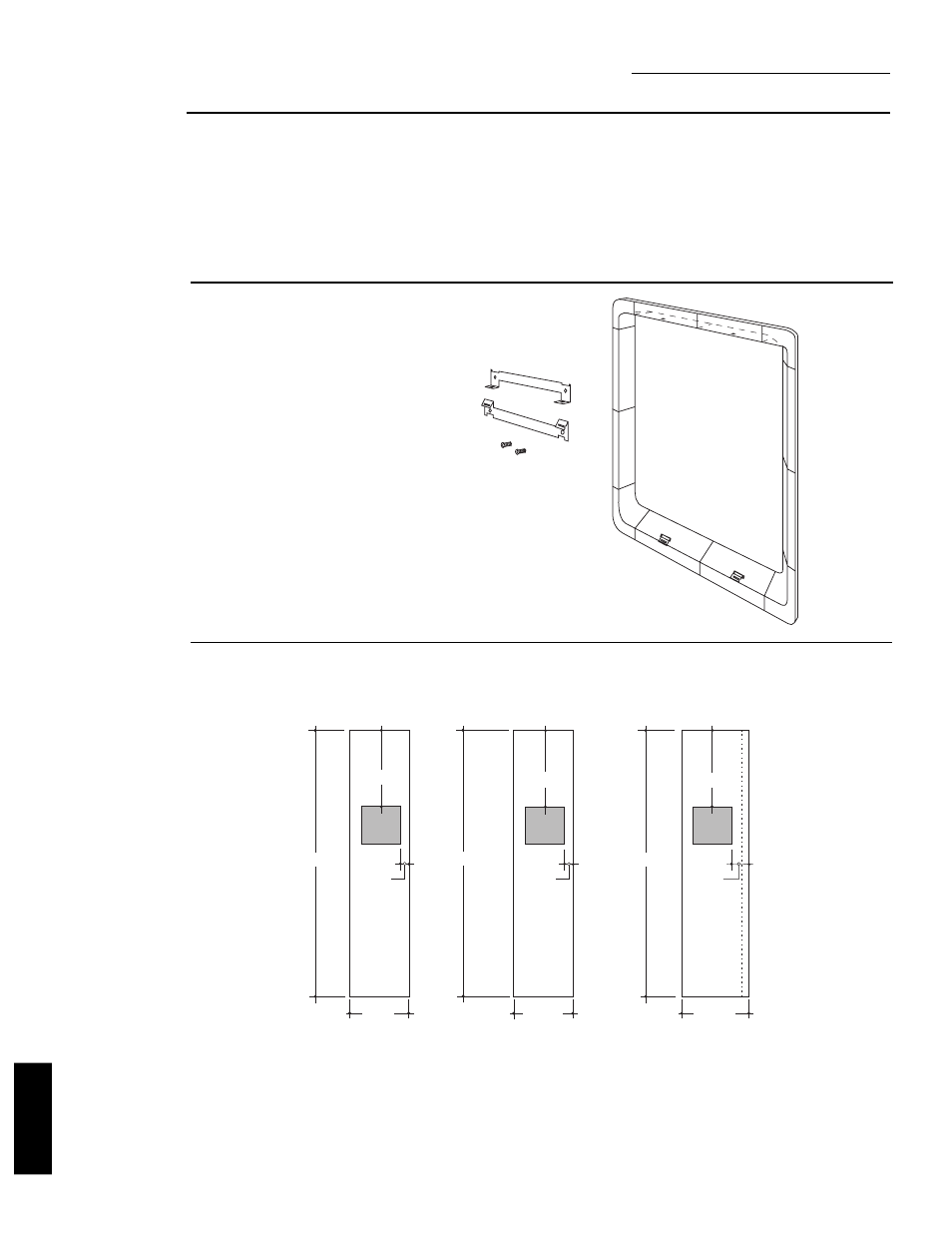

ZWCD1 Trim Kit

Custom Dispenser Collar

B

C

D

A

• 3/4" thick panels using optional custom handles.

Select the panel size accordingly.

Parts List:
A. Collar trim

(Both black and white

trim included)

B. Top bracket

C. Bottom bracket

D. Screws (2)

This kit provides for the
use of a custom dis-
penser collar trim,
replacing the standard
full-width trim. This kit
can be used alone, or
combined with one or all
other trim kits.

Tools and materials

required:

• #2 Phillips screwdriver

• Drill and appropriate bits

• Custom door panels

• Safety glasses

Select
panel size

Kit
contents

The overall size of the panel is determined by the
application being used.
• 1/4" thick panels using the standard handles or

optional custom handles.

• 3/4" thick panels using standard handles, or

1/4" Thick Custom Panels

3/4" Thick Custom Panels

with Standard Handles

3/4" Thick Custom Panels

with Custom Handles

ZWCD1

INSTALLATION

67 15/16"

67 15/16"

15 1/16"

15 1/4"

15 5/16"

2 5/16"

2 9/16"

2 9/16"

17 11/16"

17 11/16"

17 11/16"

67 7/8"
