ZKT42 Trim Kit

3/4" Custom Panels

ZKT42 – Install 17 screws

• Secure support brackets to the bottom of the panels

with #4 screws provided. Align the brackets flush with
the bottom of the panels, with tabs protruding below.

• Bracket location measured from the hinge side, is the

same for panels with custom handles or standard
handles.

Option 1 Installation

Step 3
Apply panel
support brackets

Step 4
Install panels

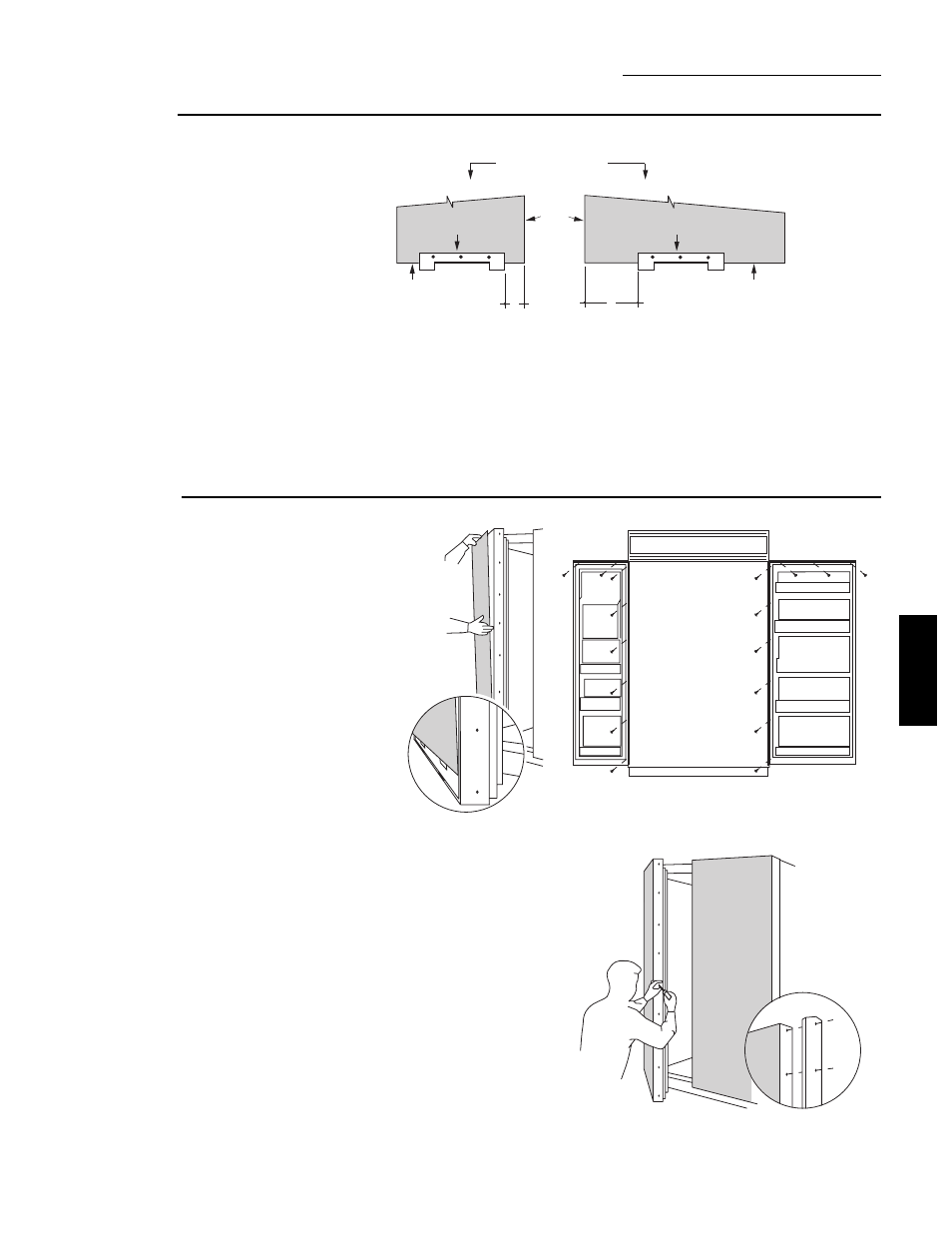

• Position support bracket on freezer panel,

dimension A, from the hinge side edge.

• Position support bracket on fresh food panel,

dimension B, from the hinge side edge.

Dimension A
ZKT42–6-3/4"

Dimension B

ZKT42–7-7/8"

• Place the 3/4" panel on the bottom trim with support

bracket tabs inserted into slots. Push the panel back
against the steel door, making sure panel is flush to
hinge side trim.

• Carefully drill starter holes in panel using a small

drill bit.

• Attach the panel to the top and hinge side by installing

screws from the back of the trim through the wood
panel.

• Follow the same procedure to install fresh food

door panel.

• Re-install door handles with original screws.

ZKT42

INSTALLATION

Back Side Door Panel

B

A

Hinge

Sde

Support Bracket

Bottom Edge

Bottom Edge

Freezer Panels

Fresh Food Panel

Support Bracket
